#include <uwflooding.h>

Inheritance diagram for UwFlooding:

Collaboration diagram for UwFlooding:

Public Member Functions
	UwFlooding ()

virtual	~UwFlooding ()

Protected Member Functions
virtual int	command (int, const char const )

virtual void	recv (Packet *)

virtual int	recvSyncClMsg (ClMessage *)

virtual int	recvAsyncClMsg (ClMessage *)

virtual void	writePathInTrace (const Packet *, const string &)

Static Protected Member Functions
static nsaddr_t	str2addr (const char *)

static string	printIP (const nsaddr_t &)

Private Types
typedef std::map< uint16_t, double >	map_packets

typedef std::map< uint8_t, map_packets >	map_forwarded_packets

Private Member Functions
	UwFlooding (const UwFlooding &)

uint8_t	getTTL (Packet *p) const

Private Attributes
uint8_t	ipAddr_

int	ttl_

double	maximum_cache_time_

int	optimize_

long	packets_forwarded_

bool	trace_path_

char *	trace_file_path_name_

ofstream	trace_file_path_

ostringstream	osstream_

map_forwarded_packets	my_forwarded_packets_

std::map< uint16_t, uint8_t >	ttl_traffic_map

Detailed Description

UwFlooding class is used to represent the routing layer of a node.

Member Typedef Documentation

◆ map_forwarded_packets

typedef std::map<uint8_t, map_packets> UwFlooding::map_forwarded_packets

private

Typedef for a map of the packet forwarded (saddr, map_packets).

◆ map_packets

typedef std::map<uint16_t, double> UwFlooding::map_packets

private

Typedef for a packet id: (serial_number, timestamp).

Constructor & Destructor Documentation

◆ UwFlooding() [1/2]

UwFlooding::UwFlooding ( )

Constructor of UwFlooding class.

References maximum_cache_time_, optimize_, and ttl_.

◆ ~UwFlooding()

UwFlooding::~UwFlooding ( )

virtual

Destructor of UwFlooding class.

◆ UwFlooding() [2/2]

UwFlooding::UwFlooding ( const UwFlooding & )

private

Copy constructor declared as private. It is not possible to create a new UwFlooding object passing to its constructor another UwFlooding object.

Parameters

UwFlooding& UwFlooding object.

Member Function Documentation

◆ command()

int UwFlooding::command	(	int	argc,
		const char const	argv
	)

protectedvirtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

References ipAddr_, packets_forwarded_, trace_file_path_, trace_file_path_name_, trace_path_, and ttl_traffic_map.

◆ getTTL()

uint8_t UwFlooding::getTTL ( Packet * p ) const

private

Get the value of the TTL

Parameters

p	pointer to the packet for which the ttl has to be computed.

Returns: the ttl for that packet

References hdr_uwcbr::traffic_type(), ttl_, and ttl_traffic_map.

Referenced by recv().

Here is the call graph for this function:

◆ printIP()

string UwFlooding::printIP ( const nsaddr_t & ip_ )

staticprotected

Return a string with an IP in the classic form "x.x.x.x" converting an ns2 nsaddr_t address.

Parameters

nsaddr_t& ns2 address

Returns: String that contains a printable IP in the classic form "x.x.x.x"

◆ recv()

void UwFlooding::recv ( Packet * p )

protectedvirtual

Performs the reception of packets from upper and lower layers.

Parameters

Packet* Pointer to the packet will be received.

References hdr_uwip::daddr(), getTTL(), ipAddr_, maximum_cache_time_, my_forwarded_packets_, optimize_, packets_forwarded_, hdr_uwip::saddr(), trace_path_, hdr_uwflooding::ttl(), and writePathInTrace().

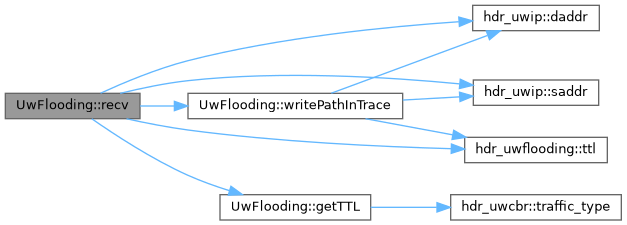

Here is the call graph for this function:

◆ recvAsyncClMsg()

int UwFlooding::recvAsyncClMsg ( ClMessage * m )

protectedvirtual

Cross-Layer messages asynchronous interpreter. Used to retrive the IP od the current node from the IP module.

Parameters

ClMessage* an instance of ClMessage that represent the message received and used for the answer.

Returns: 0 if successful.

◆ recvSyncClMsg()

int UwFlooding::recvSyncClMsg ( ClMessage * m )

protectedvirtual

Cross-Layer messages synchronous interpreter.

Parameters

ClMessage* an instance of ClMessage that represent the message received

Returns: 0 if successful.

◆ str2addr()

static nsaddr_t UwFlooding::str2addr ( const char * )

staticprotected

Returns a nsaddr_t address from an IP written as a string in the form "x.x.x.x".

Parameters

char* IP in string form

Returns: nsaddr_t that contains the IP converter from the input string

◆ writePathInTrace()

void UwFlooding::writePathInTrace	(	const Packet *	p,
		const string &	_info
	)

protectedvirtual

Writes in the Path Trace file the path contained in the Packet

Parameters

Packet to analyze.

References hdr_uwip::daddr(), osstream_, hdr_uwip::saddr(), trace_file_path_, trace_file_path_name_, and hdr_uwflooding::ttl().

Referenced by recv().

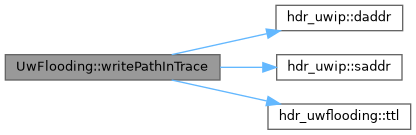

Here is the call graph for this function:

Member Data Documentation

◆ ipAddr_

uint8_t UwFlooding::ipAddr_

private

Referenced by command(), and recv().

◆ maximum_cache_time_

double UwFlooding::maximum_cache_time_

private

Validity time of a packet entry.

Referenced by recv(), and UwFlooding().

◆ my_forwarded_packets_

map_forwarded_packets UwFlooding::my_forwarded_packets_

private

Map of the packet forwarded.

Referenced by recv().

◆ optimize_

int UwFlooding::optimize_

private

Flag used to enable the mechanism to drop packets processed twice.

Referenced by recv(), and UwFlooding().

◆ osstream_

ostringstream UwFlooding::osstream_

private

Used to convert to string.

Referenced by writePathInTrace().

◆ packets_forwarded_

long UwFlooding::packets_forwarded_

private

Number of packets forwarded by this module.

Referenced by command(), and recv().

◆ trace_file_path_

ofstream UwFlooding::trace_file_path_

private

Ofstream used to write the path trace file in the disk.

Referenced by command(), and writePathInTrace().

◆ trace_file_path_name_

char* UwFlooding::trace_file_path_name_

private

Name of the trace file that contains the list of paths of the data packets received.

Referenced by command(), and writePathInTrace().

◆ trace_path_

bool UwFlooding::trace_path_

private

Flag used to enable or disable the path trace file for nodes,

Referenced by command(), and recv().

◆ ttl_

int UwFlooding::ttl_

private

Time to leave of the UWFLOODING packets.

Referenced by getTTL(), and UwFlooding().

◆ ttl_traffic_map

std::map<uint16_t, uint8_t> UwFlooding::ttl_traffic_map

private

Map with ttl per traffic.

Referenced by command(), and getTTL().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/network/uwflooding/uwflooding.h
DESERT_Framework/DESERT/network/uwflooding/uwflooding.cpp
