#include <uw-csma-aloha-trigger-sink.h>

Inheritance diagram for UwCsmaAloha_Trigger_SINK:

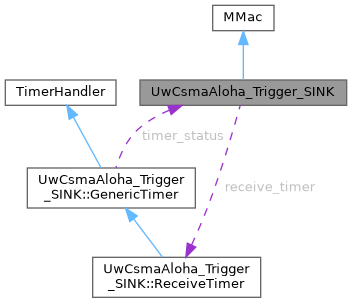

Collaboration diagram for UwCsmaAloha_Trigger_SINK:

Classes
class	GenericTimer

class	ReceiveTimer

Public Member Functions
	UwCsmaAloha_Trigger_SINK ()

virtual	~UwCsmaAloha_Trigger_SINK ()

virtual int	command (int argc, const char const argv)

virtual int	crLayCommand (ClMessage *m)

Protected Member Functions
virtual void	recvFromUpperLayers (Packet *p)

virtual void	Mac2PhyStartTx (Packet *p)

virtual void	Phy2MacEndTx (const Packet *p)

virtual void	Phy2MacStartRx (const Packet *p)

virtual void	Phy2MacEndRx (Packet *p)

virtual void	initPkt (Packet *p, int dest_addr=0)

virtual void	stateIdle ()

virtual void	stateEnableRx ()

virtual void	stateDisableRx ()

virtual void	stateTxTRIGGER ()

virtual void	txTRIGGER (Packet *p)

virtual void	stateRxData (Packet *p)

virtual void	stateRxPacketNotForMe (Packet *p)

void	refreshState (UW_CS_ALOHA_TRIG_SINK_STATUS state)

void	refreshReason (UW_CS_ALOHA_TRIG_SINK_REASON_STATUS reason)

int	getTriggerMsgSent ()

virtual void	waitForUser ()

virtual void	incrUpperDataRx ()

void	incrTRIGGERPacketTx ()

Protected Attributes
int	TRIGGER_size

int	buffer_pkts

double	tx_timer_duration

bool	receiving_state_active

UW_CS_ALOHA_TRIG_SINK_STATUS	curr_state

UW_CS_ALOHA_TRIG_SINK_STATUS	prev_state

UW_CS_ALOHA_TRIG_SINK_REASON_STATUS	last_reason

ReceiveTimer	receive_timer

int	trigger_pkts_tx

Detailed Description

Class that describes a UwCsmaAloha_Trigger_SINK module

Member Enumeration Documentation

◆ UW_CS_ALOHA_TRIG_SINK_REASON_STATUS

enum UwCsmaAloha_Trigger_SINK::UW_CS_ALOHA_TRIG_SINK_REASON_STATUS

protected

Enumerator
UW_CS_ALOHA_TRIG_SINK_REASON_DATA_RX
UW_CS_ALOHA_TRIG_SINK_REASON_NOT_SET
UW_CS_ALOHA_TRIG_SINK_REASON_START_RX
UW_CS_ALOHA_TRIG_SINK_REASON_PKT_NOT_FOR_ME
UW_CS_ALOHA_TRIG_SINK_REASON_PKT_ERROR
UW_CS_ALOHA_TRIG_SINK_REASON_TX_TRIGGER

◆ UW_CS_ALOHA_TRIG_SINK_STATUS

enum UwCsmaAloha_Trigger_SINK::UW_CS_ALOHA_TRIG_SINK_STATUS

protected

< Variable that rapresent the status of the protocol machine state

Enumerator
UW_CS_ALOHA_TRIG_SINK_STATE_IDLE
UW_CS_ALOHA_TRIG_SINK_STATE_NOT_SET
UW_CS_ALOHA_TRIG_SINK_STATE_TX_TRIGGER
UW_CS_ALOHA_TRIG_SINK_STATE_ENABLE_RX
UW_CS_ALOHA_TRIG_SINK_STATE_DISABLE_RX
UW_CS_ALOHA_TRIG_SINK_STATE_DATA_RX

◆ UW_CS_ALOHA_TRIG_SINK_TIMER_STATUS

enum UwCsmaAloha_Trigger_SINK::UW_CS_ALOHA_TRIG_SINK_TIMER_STATUS

protected

Enumerator
UW_CS_ALOHA_TRIG_SINK_IDLE
UW_CS_ALOHA_TRIG_SINK_RUNNING
UW_CS_ALOHA_TRIG_SINK_FROZEN
UW_CS_ALOHA_TRIG_SINK_EXPIRED

Constructor & Destructor Documentation

◆ UwCsmaAloha_Trigger_SINK()

UwCsmaAloha_Trigger_SINK::UwCsmaAloha_Trigger_SINK ( )

Constructor of the UwCsmaAloha_Trigger_SINK class

References TRIGGER_size, and tx_timer_duration.

◆ ~UwCsmaAloha_Trigger_SINK()

UwCsmaAloha_Trigger_SINK::~UwCsmaAloha_Trigger_SINK ( )

virtual

Destructor of the UwCsmaAloha_Trigger_SINK class

Member Function Documentation

◆ command()

int UwCsmaAloha_Trigger_SINK::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

References getTriggerMsgSent(), and stateIdle().

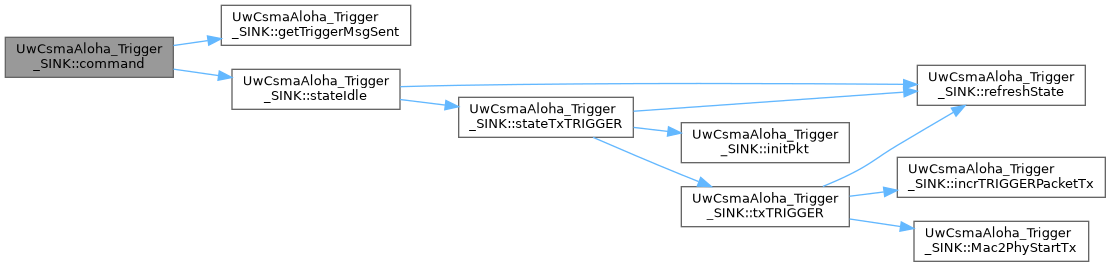

Here is the call graph for this function:

◆ crLayCommand()

int UwCsmaAloha_Trigger_SINK::crLayCommand ( ClMessage * m )

virtual

Cross-Layer messages interpreter

Parameters

ClMessage* an instance of ClMessage that represent the message received

Returns: 0 if successful.

◆ getTriggerMsgSent()

int UwCsmaAloha_Trigger_SINK::getTriggerMsgSent ( )

inlineprotected

Return the number of TRIGGER packets sent over the simulation

Returns: number of trigger packets over the simulation

References trigger_pkts_tx.

Referenced by command().

◆ incrTRIGGERPacketTx()

void UwCsmaAloha_Trigger_SINK::incrTRIGGERPacketTx ( )

inlineprotected

Increment the number of TRIGGER packets transmitted

References trigger_pkts_tx.

Referenced by txTRIGGER().

◆ incrUpperDataRx()

virtual void UwCsmaAloha_Trigger_SINK::incrUpperDataRx ( )

inlineprotectedvirtual

Increment the number of Data received from upper layers

◆ initPkt()

void UwCsmaAloha_Trigger_SINK::initPkt	(	Packet *	p,
		int	dest_addr = `0`
	)

protectedvirtual

Init the headers of the packet in transmission

Parameters

Packet*	packet to transmit
dest_adrr	destination address of the packet

References PT_MMAC_TRIGGER, and TRIGGER_size.

Referenced by stateTxTRIGGER().

◆ Mac2PhyStartTx()

void UwCsmaAloha_Trigger_SINK::Mac2PhyStartTx ( Packet * p )

protectedvirtual

Pass the packet to the PHY layer

Parameters

Packet* pointer to the packet received

Referenced by txTRIGGER().

◆ Phy2MacEndRx()

void UwCsmaAloha_Trigger_SINK::Phy2MacEndRx ( Packet * p )

protectedvirtual

Method called when the PHY layer finishes to receive a packet

Parameters

Packet* packet just received

References PT_MMAC_TRIGGER, receiving_state_active, refreshReason(), stateRxData(), stateRxPacketNotForMe(), UW_CS_ALOHA_TRIG_SINK_REASON_DATA_RX, UW_CS_ALOHA_TRIG_SINK_REASON_PKT_ERROR, and UW_CS_ALOHA_TRIG_SINK_REASON_PKT_NOT_FOR_ME.

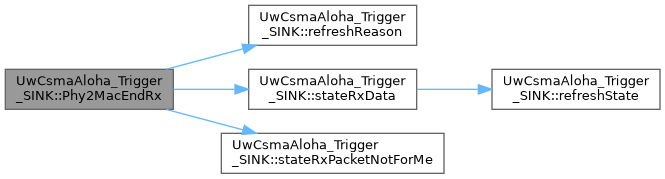

Here is the call graph for this function:

◆ Phy2MacEndTx()

void UwCsmaAloha_Trigger_SINK::Phy2MacEndTx ( const Packet * p )

protectedvirtual

Method called when the PHY layers finishes to transmit packet

Parameters

Packet* pointer to the Packet just transmitted

References refreshReason(), stateEnableRx(), and UW_CS_ALOHA_TRIG_SINK_REASON_TX_TRIGGER.

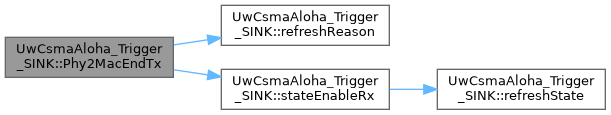

Here is the call graph for this function:

◆ Phy2MacStartRx()

void UwCsmaAloha_Trigger_SINK::Phy2MacStartRx ( const Packet * p )

protectedvirtual

Method called when the PHY layer begins to receive a packet

Parameters

Packet* pointer to the packet in reception

References receiving_state_active, refreshReason(), and UW_CS_ALOHA_TRIG_SINK_REASON_START_RX.

Here is the call graph for this function:

◆ recvFromUpperLayers()

void UwCsmaAloha_Trigger_SINK::recvFromUpperLayers ( Packet * p )

protectedvirtual

Receives the packet from the upper layer (e.g. IP)

Parameters

Packet* pointer to the packet received

◆ refreshReason()

void UwCsmaAloha_Trigger_SINK::refreshReason ( UW_CS_ALOHA_TRIG_SINK_REASON_STATUS reason )

inlineprotected

Refresh the reason for the change of state

References last_reason.

Referenced by Phy2MacEndRx(), Phy2MacEndTx(), and Phy2MacStartRx().

◆ refreshState()

void UwCsmaAloha_Trigger_SINK::refreshState ( UW_CS_ALOHA_TRIG_SINK_STATUS state )

inlineprotected

Refresh the state of the protocol

Parameters

UW_CS_ALOHA_TRIG_SINK_STATUS next state of the protocol

References curr_state.

Referenced by stateDisableRx(), stateEnableRx(), stateIdle(), stateRxData(), stateTxTRIGGER(), and txTRIGGER().

◆ stateDisableRx()

void UwCsmaAloha_Trigger_SINK::stateDisableRx ( )

protectedvirtual

The sink is not allowed to receive the packet from a certain node anymore

References receiving_state_active, refreshState(), stateIdle(), and UW_CS_ALOHA_TRIG_SINK_STATE_DISABLE_RX.

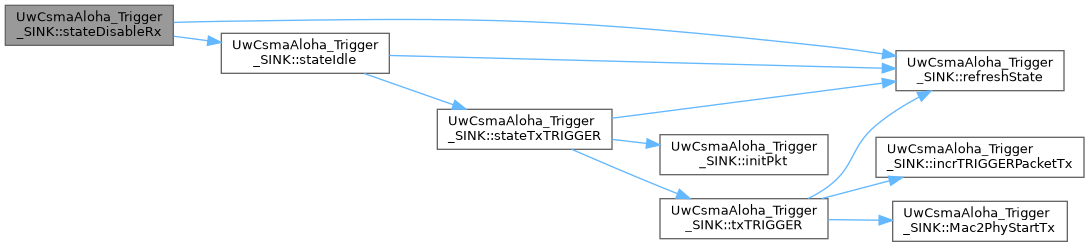

Here is the call graph for this function:

◆ stateEnableRx()

void UwCsmaAloha_Trigger_SINK::stateEnableRx ( )

protectedvirtual

State in which the sink is enabled to receive packets

References receive_timer, receiving_state_active, refreshState(), tx_timer_duration, and UW_CS_ALOHA_TRIG_SINK_STATE_ENABLE_RX.

Referenced by Phy2MacEndTx().

Here is the call graph for this function:

◆ stateIdle()

void UwCsmaAloha_Trigger_SINK::stateIdle ( )

protectedvirtual

State IDLE of the protocol. All variables resetted

References receive_timer, refreshState(), stateTxTRIGGER(), and UW_CS_ALOHA_TRIG_SINK_STATE_IDLE.

Referenced by command(), and stateDisableRx().

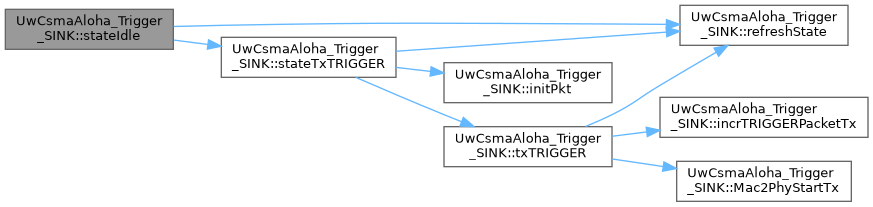

Here is the call graph for this function:

◆ stateRxData()

void UwCsmaAloha_Trigger_SINK::stateRxData ( Packet * p )

protectedvirtual

The sink receives a DATA packet from a node

References refreshState(), and UW_CS_ALOHA_TRIG_SINK_STATE_DATA_RX.

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

◆ stateRxPacketNotForMe()

void UwCsmaAloha_Trigger_SINK::stateRxPacketNotForMe ( Packet * p )

protectedvirtual

The destination address of the packet is not equal to the sink's address

Referenced by Phy2MacEndRx().

◆ stateTxTRIGGER()

void UwCsmaAloha_Trigger_SINK::stateTxTRIGGER ( )

protectedvirtual

The sink transmit the TRIGGER packet to begin the neighbour discovery phase

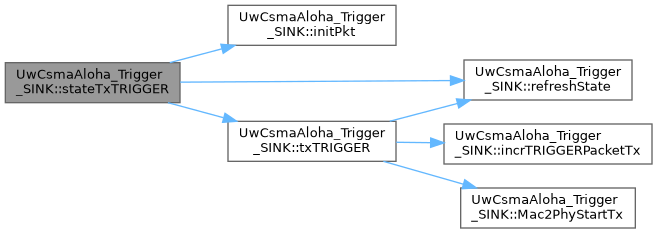

References initPkt(), refreshState(), txTRIGGER(), and UW_CS_ALOHA_TRIG_SINK_STATE_TX_TRIGGER.

Referenced by stateIdle().

Here is the call graph for this function:

◆ txTRIGGER()

void UwCsmaAloha_Trigger_SINK::txTRIGGER ( Packet * p )

protectedvirtual

Transmit the TRIGGER packet

References incrTRIGGERPacketTx(), Mac2PhyStartTx(), receiving_state_active, refreshState(), and UW_CS_ALOHA_TRIG_SINK_STATE_TX_TRIGGER.

Referenced by stateTxTRIGGER().

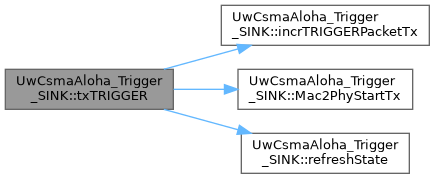

Here is the call graph for this function:

◆ waitForUser()

void UwCsmaAloha_Trigger_SINK::waitForUser ( )

protectedvirtual

Used for debug purposes. Wait until the user press a key

Member Data Documentation

◆ buffer_pkts

int UwCsmaAloha_Trigger_SINK::buffer_pkts

protected

Length of data packet queue

◆ curr_state

UW_CS_ALOHA_TRIG_SINK_STATUS UwCsmaAloha_Trigger_SINK::curr_state

protected

Current state of the protocol

Referenced by refreshState().

◆ last_reason

UW_CS_ALOHA_TRIG_SINK_REASON_STATUS UwCsmaAloha_Trigger_SINK::last_reason

protected

Last reason of the state change of the protocol

Referenced by refreshReason().

◆ prev_state

UW_CS_ALOHA_TRIG_SINK_STATUS UwCsmaAloha_Trigger_SINK::prev_state

protected

Previous state of the protocol

◆ receive_timer

ReceiveTimer UwCsmaAloha_Trigger_SINK::receive_timer

protected

timer of receive state

Referenced by stateEnableRx(), and stateIdle().

◆ receiving_state_active

bool UwCsmaAloha_Trigger_SINK::receiving_state_active

protected

True if the sink is allowed to receive data packet

Referenced by Phy2MacEndRx(), Phy2MacStartRx(), stateDisableRx(), stateEnableRx(), and txTRIGGER().

◆ trigger_pkts_tx

int UwCsmaAloha_Trigger_SINK::trigger_pkts_tx

protected

Number of TRIGGER packet received

Referenced by getTriggerMsgSent(), and incrTRIGGERPacketTx().

◆ TRIGGER_size

int UwCsmaAloha_Trigger_SINK::TRIGGER_size

protected

Size of the TRIGGER packet

Referenced by initPkt(), and UwCsmaAloha_Trigger_SINK().

◆ tx_timer_duration

double UwCsmaAloha_Trigger_SINK::tx_timer_duration

protected

Duration of the timer in which one node is allowed to transmit

Referenced by stateEnableRx(), and UwCsmaAloha_Trigger_SINK().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/data_link/uw-csma-aloha-trigger/uw-csma-aloha-trigger-sink.h
DESERT_Framework/DESERT/data_link/uw-csma-aloha-trigger/uw-csma-aloha-trigger-sink.cpp

Protected Types
enum	UW_CS_ALOHA_TRIG_SINK_STATUS { UW_CS_ALOHA_TRIG_SINK_STATE_IDLE = 1 , UW_CS_ALOHA_TRIG_SINK_STATE_NOT_SET , UW_CS_ALOHA_TRIG_SINK_STATE_TX_TRIGGER , UW_CS_ALOHA_TRIG_SINK_STATE_ENABLE_RX , UW_CS_ALOHA_TRIG_SINK_STATE_DISABLE_RX , UW_CS_ALOHA_TRIG_SINK_STATE_DATA_RX }

enum	UW_CS_ALOHA_TRIG_SINK_REASON_STATUS { UW_CS_ALOHA_TRIG_SINK_REASON_DATA_RX = 1 , UW_CS_ALOHA_TRIG_SINK_REASON_NOT_SET , UW_CS_ALOHA_TRIG_SINK_REASON_START_RX , UW_CS_ALOHA_TRIG_SINK_REASON_PKT_NOT_FOR_ME , UW_CS_ALOHA_TRIG_SINK_REASON_PKT_ERROR , UW_CS_ALOHA_TRIG_SINK_REASON_TX_TRIGGER }

enum	UW_CS_ALOHA_TRIG_SINK_TIMER_STATUS { UW_CS_ALOHA_TRIG_SINK_IDLE = 1 , UW_CS_ALOHA_TRIG_SINK_RUNNING , UW_CS_ALOHA_TRIG_SINK_FROZEN , UW_CS_ALOHA_TRIG_SINK_EXPIRED }

Classes

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ UW_CS_ALOHA_TRIG_SINK_REASON_STATUS

◆ UW_CS_ALOHA_TRIG_SINK_STATUS

◆ UW_CS_ALOHA_TRIG_SINK_TIMER_STATUS

Constructor & Destructor Documentation

◆ UwCsmaAloha_Trigger_SINK()

◆ ~UwCsmaAloha_Trigger_SINK()

Member Function Documentation

◆ command()

◆ crLayCommand()

◆ getTriggerMsgSent()

◆ incrTRIGGERPacketTx()

◆ incrUpperDataRx()

◆ initPkt()

◆ Mac2PhyStartTx()

◆ Phy2MacEndRx()

◆ Phy2MacEndTx()

◆ Phy2MacStartRx()

◆ recvFromUpperLayers()

◆ refreshReason()

◆ refreshState()

◆ stateDisableRx()

◆ stateEnableRx()

◆ stateIdle()

◆ stateRxData()

◆ stateRxPacketNotForMe()

◆ stateTxTRIGGER()

◆ txTRIGGER()

◆ waitForUser()

Member Data Documentation

◆ buffer_pkts

◆ curr_state

◆ last_reason

◆ prev_state

◆ receive_timer

◆ receiving_state_active

◆ trigger_pkts_tx

◆ TRIGGER_size

◆ tx_timer_duration
