UwCsmaAloha_Trigger_NODE::TransmissionTimer Class Reference

#include <uw-csma-aloha-trigger-node.h>

Inheritance diagram for UwCsmaAloha_Trigger_NODE::TransmissionTimer:

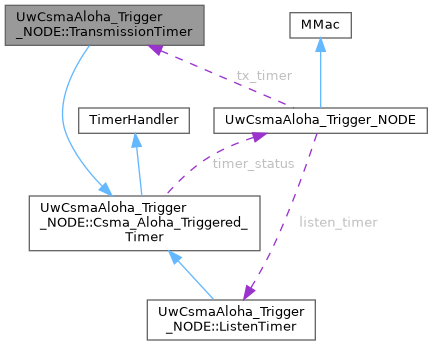

Collaboration diagram for UwCsmaAloha_Trigger_NODE::TransmissionTimer:

Public Member Functions
	TransmissionTimer (UwCsmaAloha_Trigger_NODE *m)
virtual	~TransmissionTimer ()
Public Member Functions inherited from UwCsmaAloha_Trigger_NODE::Csma_Aloha_Triggered_Timer
	Csma_Aloha_Triggered_Timer (UwCsmaAloha_Trigger_NODE *m)
virtual	~Csma_Aloha_Triggered_Timer ()
virtual void	freeze ()
virtual void	unFreeze ()
virtual void	stop ()
virtual void	schedule (double val)
bool	isIdle ()
bool	isRunning ()
bool	isExpired ()
bool	isFrozen ()
bool	isActive ()
void	resetCounter ()
void	incrCounter ()
int	getCounter ()
double	getDuration ()

Protected Member Functions
virtual void	expire (Event *e)

Additional Inherited Members
Protected Attributes inherited from UwCsmaAloha_Trigger_NODE::Csma_Aloha_Triggered_Timer
double	start_time
double	left_duration
int	counter
UwCsmaAloha_Trigger_NODE *UW_CS_ALOHA_TRIG_NODE_TIMER_STATUS	timer_status

Detailed Description

Class used to handle the time in which the node is allowed to transmit to the sink.

Definition at line 357 of file uw-csma-aloha-trigger-node.h.

Constructor & Destructor Documentation

TransmissionTimer()

UwCsmaAloha_Trigger_NODE::TransmissionTimer::TransmissionTimer ( UwCsmaAloha_Trigger_NODE *  m )

inline

Constructor of the TransmissionTimer class.

Parameters

m	pointer to an object of type UwCsmaAloha_Trigger_NODE

Definition at line 364 of file uw-csma-aloha-trigger-node.h.

~TransmissionTimer()

virtual UwCsmaAloha_Trigger_NODE::TransmissionTimer::~TransmissionTimer ( )

inlinevirtual

Destructor of the class TransmissionTimer.

Definition at line 372 of file uw-csma-aloha-trigger-node.h.

Member Function Documentation

expire()

void UwCsmaAloha_Trigger_NODE::TransmissionTimer::expire ( Event *  e )

protectedvirtual

Method called when the timer expire.

Parameters

Eevent*

pointer to an object of type Event

Definition at line 82 of file uw-csma-aloha-trigger-node.cpp.

---

The documentation for this class was generated from the following files:

• uw-csma-aloha-trigger-node.h
• uw-csma-aloha-trigger-node.cpp
