#include <uw-aloha-q-sync-node.h>

Inheritance diagram for UwAloha_Q_Sync_NODE:

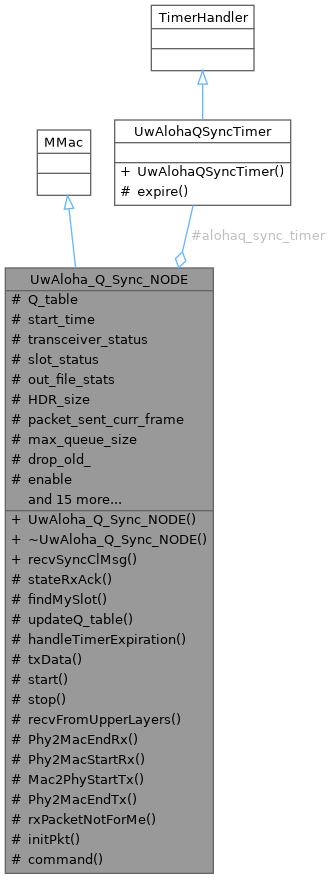

Collaboration diagram for UwAloha_Q_Sync_NODE:

Public Member Functions
	UwAloha_Q_Sync_NODE ()

virtual	~UwAloha_Q_Sync_NODE ()=default

virtual int	recvSyncClMsg (ClMessage *m)

Protected Types
enum	UWALOHAQ_STATUS { IDLE , TRANSMITTING , RECEIVING }

enum	SLOT_STATUS { TRANSMIT , RECEIVE }

Protected Member Functions
virtual void	stateRxAck (Packet *p, int addr)

virtual void	findMySlot ()

virtual void	updateQ_table (int ack_received)

virtual void	handleTimerExpiration ()

virtual void	txData ()

virtual void	start (double delay)

virtual void	stop ()

virtual void	recvFromUpperLayers (Packet *p)

virtual void	Phy2MacEndRx (Packet *p)

virtual void	Phy2MacStartRx (Packet *p)

virtual void	Mac2PhyStartTx (Packet *p)

virtual void	Phy2MacEndTx (const Packet *p)

virtual void	rxPacketNotForMe (Packet *p)

virtual void	initPkt (Packet *p)

virtual int	command (int argc, const char const argv)

Protected Attributes
UwAlohaQSyncTimer	alohaq_sync_timer

std::vector< std::vector< double > >	Q_table {}

double	start_time

UWALOHAQ_STATUS	transceiver_status

SLOT_STATUS	slot_status

std::ofstream	out_file_stats

int	HDR_size

int	packet_sent_curr_frame

int	max_queue_size

int	drop_old_

bool	enable

int	checkPriority

int	debug_

int	sea_trial_

std::deque< Packet * >	buffer

int	curr_slot

int	curr_subslot

int	my_curr_slot

int	my_curr_subslot

double	t_prop_max

double	t_dp

double	t_guard

std::vector< int >	ack_data

double	slot_duration_factor

int	nn

int	subslot_num

Friends
class	UwAlohaQSyncTimer

Detailed Description

Class that represents a UwAlohaQSync Node

Member Enumeration Documentation

◆ SLOT_STATUS

enum UwAloha_Q_Sync_NODE::SLOT_STATUS

protected

Enumerator
TRANSMIT
RECEIVE

◆ UWALOHAQ_STATUS

enum UwAloha_Q_Sync_NODE::UWALOHAQ_STATUS

protected

Enumerator
IDLE
TRANSMITTING
RECEIVING

Constructor & Destructor Documentation

◆ UwAloha_Q_Sync_NODE()

UwAloha_Q_Sync_NODE::UwAloha_Q_Sync_NODE ( )

Constructor of the UwAloha_Q_Sync_NODE class

References checkPriority, debug_, drop_old_, HDR_size, max_queue_size, nn, sea_trial_, slot_duration_factor, subslot_num, t_dp, and t_prop_max.

◆ ~UwAloha_Q_Sync_NODE()

virtual UwAloha_Q_Sync_NODE::~UwAloha_Q_Sync_NODE ( )

virtualdefault

Destructor of the UwAloha_Q_Sync_NODE class

Member Function Documentation

◆ command()

int UwAloha_Q_Sync_NODE::command	(	int	argc,
		const char const	argv
	)

protectedvirtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

References start(), start_time, and stop().

Referenced by recvSyncClMsg().

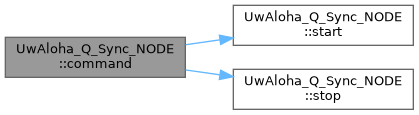

Here is the call graph for this function:

◆ findMySlot()

void UwAloha_Q_Sync_NODE::findMySlot ( )

protectedvirtual

Search Q-table and find slot for transmission in the following frame

References my_curr_slot, my_curr_subslot, nn, Q_table, and subslot_num.

Referenced by handleTimerExpiration().

◆ handleTimerExpiration()

void UwAloha_Q_Sync_NODE::handleTimerExpiration ( )

protectedvirtual

Triggered upon timer expiration event

References alohaq_sync_timer, curr_slot, curr_subslot, debug_, findMySlot(), IDLE, my_curr_slot, my_curr_subslot, nn, packet_sent_curr_frame, RECEIVE, slot_duration_factor, slot_status, subslot_num, t_dp, t_guard, t_prop_max, transceiver_status, TRANSMIT, and txData().

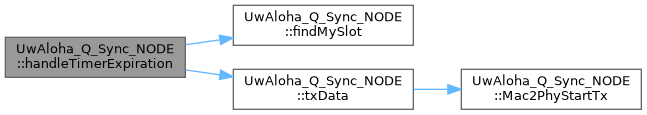

Here is the call graph for this function:

◆ initPkt()

void UwAloha_Q_Sync_NODE::initPkt ( Packet * p )

protectedvirtual

Method called to add the MAC header size

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in transmission

References HDR_size.

Referenced by recvFromUpperLayers().

◆ Mac2PhyStartTx()

void UwAloha_Q_Sync_NODE::Mac2PhyStartTx ( Packet * p )

protectedvirtual

Method called when the Mac Layer start to transmit a Packet

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in transmission

References debug_, IDLE, transceiver_status, and TRANSMITTING.

Referenced by txData().

◆ Phy2MacEndRx()

void UwAloha_Q_Sync_NODE::Phy2MacEndRx ( Packet * p )

protectedvirtual

Method called when the Phy Layer finish to receive a Packet

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in reception

References ack_data, debug_, IDLE, PT_ALOHAQ_SYNC_ACK, rxPacketNotForMe(), stateRxAck(), transceiver_status, and TRANSMITTING.

Here is the call graph for this function:

◆ Phy2MacEndTx()

void UwAloha_Q_Sync_NODE::Phy2MacEndTx ( const Packet * p )

protectedvirtual

Method called when the Mac Layer finish to transmit a Packet

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in transmission

References IDLE, and transceiver_status.

◆ Phy2MacStartRx()

void UwAloha_Q_Sync_NODE::Phy2MacStartRx ( Packet * p )

protectedvirtual

Method called when the Phy Layer start to receive a Packet

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in reception

References debug_, IDLE, RECEIVING, slot_status, transceiver_status, and TRANSMIT.

◆ recvFromUpperLayers()

void UwAloha_Q_Sync_NODE::recvFromUpperLayers ( Packet * p )

protectedvirtual

Receive the packet from the upper layer (e.g. IP)

Parameters

Packet* pointer to the packet received

References buffer, initPkt(), and max_queue_size.

Here is the call graph for this function:

◆ recvSyncClMsg()

int UwAloha_Q_Sync_NODE::recvSyncClMsg ( ClMessage * m )

virtual

Cross-Layer messages synchronous interpreter.

Parameters

ClMessage* an instance of ClMessage that represent the message received

Returns: 0 if successful.

References CLMSG_UWMMAC_ENABLE, command(), ClMsgUwMmac::SET_REPLY, ClMsgUwMmac::SET_REQ, start(), start_time, and stop().

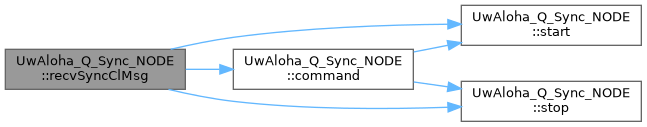

Here is the call graph for this function:

◆ rxPacketNotForMe()

void UwAloha_Q_Sync_NODE::rxPacketNotForMe ( Packet * p )

protectedvirtual

Method called when the Packet received is determined to be not for me

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in reception

References debug_.

Referenced by Phy2MacEndRx().

◆ start()

void UwAloha_Q_Sync_NODE::start ( double delay )

protectedvirtual

Schedule the beginning of each TDMA cycle, each one after delay

Parameters

delay to await before starting the protocol

References alohaq_sync_timer, enable, nn, Q_table, and subslot_num.

Referenced by command(), and recvSyncClMsg().

◆ stateRxAck()

void UwAloha_Q_Sync_NODE::stateRxAck	(	Packet *	p,
		int	addr
	)

protectedvirtual

Confirm ACK is received in desired time slot

Parameters

Packet*	pointer to the ACK packet received
addr	MAC adress of the receiving node

References ack_data, debug_, IDLE, out_file_stats, transceiver_status, and updateQ_table().

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

◆ stop()

void UwAloha_Q_Sync_NODE::stop ( )

protectedvirtual

Cancel the timer

References alohaq_sync_timer, and enable.

Referenced by command(), and recvSyncClMsg().

◆ txData()

void UwAloha_Q_Sync_NODE::txData ( )

protectedvirtual

Transmit a data packet if in my slot

References buffer, debug_, IDLE, Mac2PhyStartTx(), packet_sent_curr_frame, and transceiver_status.

Referenced by handleTimerExpiration().

Here is the call graph for this function:

◆ updateQ_table()

void UwAloha_Q_Sync_NODE::updateQ_table ( int ack_received )

protectedvirtual

Update Q-table based on reward value

Parameters

ack_received reward value - 1 if ACK received, 0 if not

References debug_, my_curr_slot, my_curr_subslot, nn, Q_table, and subslot_num.

Referenced by stateRxAck().

Friends And Related Symbol Documentation

◆ UwAlohaQSyncTimer

friend class UwAlohaQSyncTimer

friend

Member Data Documentation

◆ ack_data

std::vector<int> UwAloha_Q_Sync_NODE::ack_data

protected

Sink's list to store successful transmittors

Referenced by Phy2MacEndRx(), and stateRxAck().

◆ alohaq_sync_timer

UwAlohaQSyncTimer UwAloha_Q_Sync_NODE::alohaq_sync_timer

protected

UwAlohaQSync timer handler

Referenced by handleTimerExpiration(), start(), and stop().

◆ buffer

std::deque<Packet *> UwAloha_Q_Sync_NODE::buffer

protected

Buffer of the MAC node

Referenced by recvFromUpperLayers(), and txData().

◆ checkPriority

int UwAloha_Q_Sync_NODE::checkPriority

protected

flag to set to 1 if UWCBR module uses packets with priority, set to 0 otherwise. Priority can be used only with UWCBR module

Referenced by UwAloha_Q_Sync_NODE().

◆ curr_slot

int UwAloha_Q_Sync_NODE::curr_slot

protected

Current slot

Referenced by handleTimerExpiration().

◆ curr_subslot

int UwAloha_Q_Sync_NODE::curr_subslot

protected

Current subslot

Referenced by handleTimerExpiration().

◆ debug_

int UwAloha_Q_Sync_NODE::debug_

protected

Debug variable: 0 for no info, >1 for info

Referenced by handleTimerExpiration(), Mac2PhyStartTx(), Phy2MacEndRx(), Phy2MacStartRx(), rxPacketNotForMe(), stateRxAck(), txData(), updateQ_table(), and UwAloha_Q_Sync_NODE().

◆ drop_old_

int UwAloha_Q_Sync_NODE::drop_old_

protected

flag to set the drop packet policy in case of buffer overflow: if 0 (default) drops the new packet, if 1 the oldest

Referenced by UwAloha_Q_Sync_NODE().

◆ enable

bool UwAloha_Q_Sync_NODE::enable

protected

Referenced by start(), and stop().

◆ HDR_size

int UwAloha_Q_Sync_NODE::HDR_size

protected

Size of the HDR if any

Referenced by initPkt(), and UwAloha_Q_Sync_NODE().

◆ max_queue_size

int UwAloha_Q_Sync_NODE::max_queue_size

protected

Maximum dimension of Queue

Referenced by recvFromUpperLayers(), and UwAloha_Q_Sync_NODE().

◆ my_curr_slot

int UwAloha_Q_Sync_NODE::my_curr_slot

protected

Node's slot chosen for transmission

Referenced by findMySlot(), handleTimerExpiration(), and updateQ_table().

◆ my_curr_subslot

int UwAloha_Q_Sync_NODE::my_curr_subslot

protected

Node's subslot chosen for transmission

Referenced by findMySlot(), handleTimerExpiration(), and updateQ_table().

◆ nn

int UwAloha_Q_Sync_NODE::nn

protected

number of nodes

Referenced by findMySlot(), handleTimerExpiration(), start(), updateQ_table(), and UwAloha_Q_Sync_NODE().

◆ out_file_stats

std::ofstream UwAloha_Q_Sync_NODE::out_file_stats

protected

File stream for the statistics log file

Referenced by stateRxAck().

◆ packet_sent_curr_frame

int UwAloha_Q_Sync_NODE::packet_sent_curr_frame

protected

counter of packet has been sent in the current frame

Referenced by handleTimerExpiration(), and txData().

◆ Q_table

std::vector<std::vector<double> > UwAloha_Q_Sync_NODE::Q_table {}

protected

2D Q-table

Referenced by findMySlot(), start(), and updateQ_table().

◆ sea_trial_

int UwAloha_Q_Sync_NODE::sea_trial_

protected

Written log variable

Referenced by UwAloha_Q_Sync_NODE().

◆ slot_duration_factor

double UwAloha_Q_Sync_NODE::slot_duration_factor

protected

slot_duration = packet_duration * slot_duration_factor

Referenced by handleTimerExpiration(), and UwAloha_Q_Sync_NODE().

◆ slot_status

SLOT_STATUS UwAloha_Q_Sync_NODE::slot_status

protected

Variable that holds SLOT_STATUS

Referenced by handleTimerExpiration(), and Phy2MacStartRx().

◆ start_time

double UwAloha_Q_Sync_NODE::start_time

protected

Time to wait before starting the protocol

Referenced by command(), and recvSyncClMsg().

◆ subslot_num

int UwAloha_Q_Sync_NODE::subslot_num

protected

Number of subslots

Referenced by findMySlot(), handleTimerExpiration(), start(), updateQ_table(), and UwAloha_Q_Sync_NODE().

◆ t_dp

double UwAloha_Q_Sync_NODE::t_dp

protected

Transmission delay

Referenced by handleTimerExpiration(), and UwAloha_Q_Sync_NODE().

◆ t_guard

double UwAloha_Q_Sync_NODE::t_guard

protected

Guard interval

Referenced by handleTimerExpiration().

◆ t_prop_max

double UwAloha_Q_Sync_NODE::t_prop_max

protected

Maximal propagation delay

Referenced by handleTimerExpiration(), and UwAloha_Q_Sync_NODE().

◆ transceiver_status

UWALOHAQ_STATUS UwAloha_Q_Sync_NODE::transceiver_status

protected

Variable that holds UWALOHAQ_STATUS

Referenced by handleTimerExpiration(), Mac2PhyStartTx(), Phy2MacEndRx(), Phy2MacEndTx(), Phy2MacStartRx(), stateRxAck(), and txData().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/data_link/uw-aloha-q-sync/uw-aloha-q-sync-node.h
DESERT_Framework/DESERT/data_link/uw-aloha-q-sync/uw-aloha-q-sync-node.cpp

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Member Enumeration Documentation

◆ SLOT_STATUS

◆ UWALOHAQ_STATUS

Constructor & Destructor Documentation

◆ UwAloha_Q_Sync_NODE()

◆ ~UwAloha_Q_Sync_NODE()

Member Function Documentation

◆ command()

◆ findMySlot()

◆ handleTimerExpiration()

◆ initPkt()

◆ Mac2PhyStartTx()

◆ Phy2MacEndRx()

◆ Phy2MacEndTx()

◆ Phy2MacStartRx()

◆ recvFromUpperLayers()

◆ recvSyncClMsg()

◆ rxPacketNotForMe()

◆ start()

◆ stateRxAck()

◆ stop()

◆ txData()

◆ updateQ_table()

Friends And Related Symbol Documentation

◆ UwAlohaQSyncTimer

Member Data Documentation

◆ ack_data

◆ alohaq_sync_timer

◆ buffer

◆ checkPriority

◆ curr_slot

◆ curr_subslot

◆ debug_

◆ drop_old_

◆ enable

◆ HDR_size

◆ max_queue_size

◆ my_curr_slot

◆ my_curr_subslot

◆ nn

◆ out_file_stats

◆ packet_sent_curr_frame

◆ Q_table

◆ sea_trial_

◆ slot_duration_factor

◆ slot_status

◆ start_time

◆ subslot_num

◆ t_dp

◆ t_guard

◆ t_prop_max

◆ transceiver_status
