#include <uw-aloha-q-node.h>

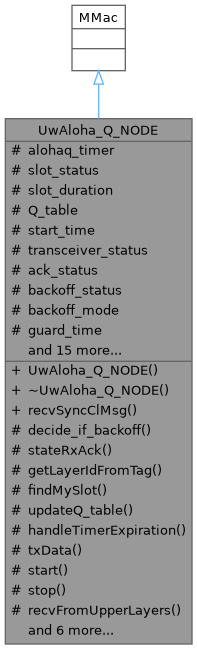

Inheritance diagram for UwAloha_Q_NODE:

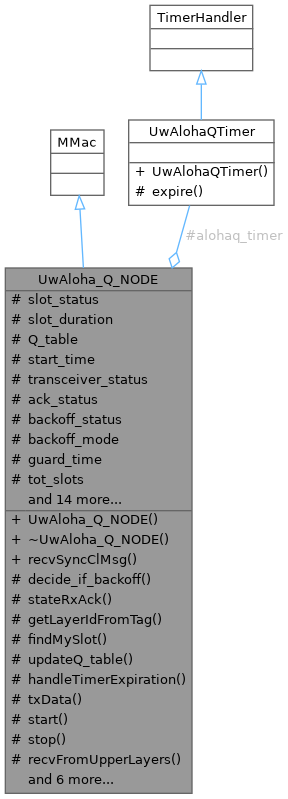

Collaboration diagram for UwAloha_Q_NODE:

Public Member Functions
	UwAloha_Q_NODE ()

virtual	~UwAloha_Q_NODE ()=default

virtual int	recvSyncClMsg (ClMessage *m)

Protected Types
enum	UWALOHAQ_PKT_TYPE { UWALOHAQ_ACK_PKT , UWALOHAQ_DATA_PKT }

enum	UWALOHAQ_STATUS { IDLE , TRANSMITTING , RECEIVING , WAIT_ACK }

enum	UWALOHAQ_ACK_STATUS { ACK_RECEIVED , ACK_NOT_RECEIVED }

enum	UWALOHAQ_BACKOFF_STATUS { ADD_BACKOFF , HALT }

enum	UWALOHAQ_BACKOFF_MODE { B1 , B2 }

Protected Member Functions
virtual int	decide_if_backoff (int slot)

virtual void	stateRxAck (Packet *p)

virtual int	getLayerIdFromTag (const std::string &tag)

virtual int	findMySlot ()

virtual void	updateQ_table (int ack_received)

virtual void	handleTimerExpiration ()

virtual void	txData ()

virtual void	start (double delay)

virtual void	stop ()

virtual void	recvFromUpperLayers (Packet *p) override

virtual void	Phy2MacEndRx (Packet *p)

virtual void	Phy2MacStartRx (const Packet *p)

virtual void	Phy2MacEndTx (const Packet *p)

virtual void	rxPacketNotForMe (Packet *p)

virtual void	initPkt (Packet *p)

virtual int	command (int argc, const char const argv)

Protected Attributes
UwAlohaQTimer	alohaq_timer

int	slot_status

double	slot_duration

std::vector< double >	Q_table {}

double	start_time

UWALOHAQ_STATUS	transceiver_status

UWALOHAQ_ACK_STATUS	ack_status

UWALOHAQ_BACKOFF_STATUS	backoff_status

UWALOHAQ_BACKOFF_MODE	backoff_mode

double	guard_time

int	tot_slots

int	HDR_size

int	max_packet_per_slot

int	packet_sent_curr_slot_

int	packet_sent_curr_frame

int	max_queue_size

bool	enable

int	debug_

int	sea_trial_

std::deque< Packet * >	buffer

int	curr_slot

int	my_curr_slot

int	data_phy_id

int	decide_backoff

std::string	phy_data_tag

Friends
class	UwAlohaQTimer

Detailed Description

Class that represents a UwAloha_Q Node

Member Enumeration Documentation

◆ UWALOHAQ_ACK_STATUS

enum UwAloha_Q_NODE::UWALOHAQ_ACK_STATUS

protected

Enumeration class of UWALOHAQ ACK status.

Enumerator
ACK_RECEIVED
ACK_NOT_RECEIVED

◆ UWALOHAQ_BACKOFF_MODE

enum UwAloha_Q_NODE::UWALOHAQ_BACKOFF_MODE

protected

B1 - backoff after every unsuccessful transmission ; B2 - backoff after best slot change

Enumerator
B1
B2

◆ UWALOHAQ_BACKOFF_STATUS

enum UwAloha_Q_NODE::UWALOHAQ_BACKOFF_STATUS

protected

Enumeration class of UWALOHAQ backoff activation flag

Enumerator
ADD_BACKOFF
HALT

◆ UWALOHAQ_PKT_TYPE

enum UwAloha_Q_NODE::UWALOHAQ_PKT_TYPE

protected

Enumerator
UWALOHAQ_ACK_PKT
UWALOHAQ_DATA_PKT

◆ UWALOHAQ_STATUS

enum UwAloha_Q_NODE::UWALOHAQ_STATUS

protected

Enumeration class of UWALOHAQ status.

Enumerator
IDLE
TRANSMITTING
RECEIVING
WAIT_ACK

Constructor & Destructor Documentation

◆ UwAloha_Q_NODE()

UwAloha_Q_NODE::UwAloha_Q_NODE ( )

Constructor of the UW_Aloha_Q_NODE class

References backoff_mode, debug_, guard_time, HDR_size, max_packet_per_slot, max_queue_size, sea_trial_, slot_duration, start_time, and tot_slots.

◆ ~UwAloha_Q_NODE()

virtual UwAloha_Q_NODE::~UwAloha_Q_NODE ( )

virtualdefault

Destructor of the UW_Aloha_Q_NODE class

Member Function Documentation

◆ command()

int UwAloha_Q_NODE::command	(	int	argc,
		const char const	argv
	)

protectedvirtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

References phy_data_tag, start(), start_time, and stop().

Referenced by recvSyncClMsg().

Here is the call graph for this function:

◆ decide_if_backoff()

int UwAloha_Q_NODE::decide_if_backoff ( int slot )

protectedvirtual

Decide if backoff should be applied in the following slot

References Q_table.

Referenced by handleTimerExpiration().

◆ findMySlot()

int UwAloha_Q_NODE::findMySlot ( )

protectedvirtual

Search Q-table and find optimal slot for transmission

References Q_table, and tot_slots.

Referenced by handleTimerExpiration().

◆ getLayerIdFromTag()

int UwAloha_Q_NODE::getLayerIdFromTag ( const std::string & tag )

protectedvirtual

Check channel packet is sent through

Referenced by txData().

◆ handleTimerExpiration()

void UwAloha_Q_NODE::handleTimerExpiration ( )

protectedvirtual

References ACK_NOT_RECEIVED, ack_status, ADD_BACKOFF, alohaq_timer, B1, B2, backoff_mode, backoff_status, curr_slot, debug_, decide_backoff, decide_if_backoff(), findMySlot(), HALT, IDLE, my_curr_slot, packet_sent_curr_frame, packet_sent_curr_slot_, slot_duration, slot_status, tot_slots, transceiver_status, txData(), and updateQ_table().

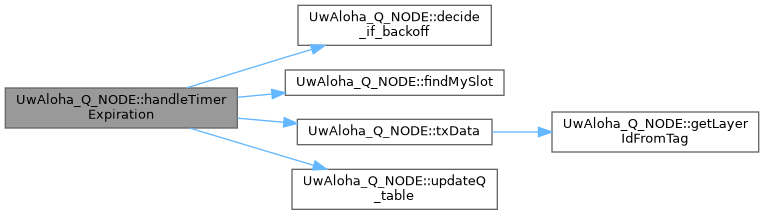

Here is the call graph for this function:

◆ initPkt()

void UwAloha_Q_NODE::initPkt ( Packet * p )

protectedvirtual

Method called to add the MAC header size

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in transmission

References HDR_size.

Referenced by recvFromUpperLayers().

◆ Phy2MacEndRx()

void UwAloha_Q_NODE::Phy2MacEndRx ( Packet * p )

protectedvirtual

Method called when the Phy Layer finish to receive a Packet

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in reception

References debug_, IDLE, PT_MMAC_ACK, rxPacketNotForMe(), stateRxAck(), transceiver_status, and TRANSMITTING.

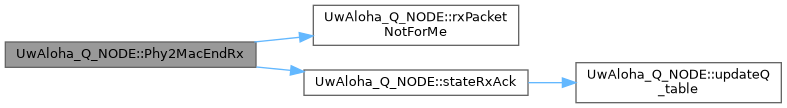

Here is the call graph for this function:

◆ Phy2MacEndTx()

void UwAloha_Q_NODE::Phy2MacEndTx ( const Packet * p )

protectedvirtual

Method called when the Mac Layer finish to transmit a Packet

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in transmission

References debug_, packet_sent_curr_slot_, transceiver_status, and WAIT_ACK.

◆ Phy2MacStartRx()

void UwAloha_Q_NODE::Phy2MacStartRx ( const Packet * p )

protectedvirtual

Method called when the Phy Layer start to receive a Packet

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in reception

References debug_, RECEIVING, transceiver_status, and WAIT_ACK.

◆ recvFromUpperLayers()

void UwAloha_Q_NODE::recvFromUpperLayers ( Packet * p )

overrideprotectedvirtual

Receive the packet from the upper layer (e.g. IP)

Parameters

Packet* pointer to the packet received

References buffer, initPkt(), and max_queue_size.

Here is the call graph for this function:

◆ recvSyncClMsg()

int UwAloha_Q_NODE::recvSyncClMsg ( ClMessage * m )

virtual

Cross-Layer messages synchronous interpreter.

Parameters

ClMessage* an instance of ClMessage that represent the message received

Returns: 0 if successful.

References CLMSG_UWMMAC_ENABLE, command(), ClMsgUwMmac::SET_REPLY, ClMsgUwMmac::SET_REQ, start(), start_time, and stop().

Here is the call graph for this function:

◆ rxPacketNotForMe()

void UwAloha_Q_NODE::rxPacketNotForMe ( Packet * p )

protectedvirtual

Method called when the Packet received is determined to be not for me

Parameters

const Packet* Pointer to an Packet object that rapresent the Packet in reception

References debug_.

Referenced by Phy2MacEndRx().

◆ start()

void UwAloha_Q_NODE::start ( double delay )

protectedvirtual

Schedule the beginning of each cycle, each one after delay

Parameters

delay to await before starting the protocol

References alohaq_timer, debug_, enable, Q_table, slot_duration, slot_status, and tot_slots.

Referenced by command(), and recvSyncClMsg().

◆ stateRxAck()

void UwAloha_Q_NODE::stateRxAck ( Packet * p )

protectedvirtual

Acknowledge ACK is received in the right slot

References ACK_RECEIVED, ack_status, debug_, IDLE, slot_status, transceiver_status, and updateQ_table().

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

◆ stop()

void UwAloha_Q_NODE::stop ( )

protectedvirtual

Cancel the timer

References alohaq_timer, and enable.

Referenced by command(), and recvSyncClMsg().

◆ txData()

void UwAloha_Q_NODE::txData ( )

protectedvirtual

Transmit a data packet if in my slot

References buffer, data_phy_id, debug_, getLayerIdFromTag(), IDLE, max_packet_per_slot, packet_sent_curr_frame, packet_sent_curr_slot_, phy_data_tag, slot_status, transceiver_status, and TRANSMITTING.

Referenced by handleTimerExpiration().

Here is the call graph for this function:

◆ updateQ_table()

void UwAloha_Q_NODE::updateQ_table ( int ack_received )

protectedvirtual

Update Q-table

References curr_slot, debug_, Q_table, and tot_slots.

Referenced by handleTimerExpiration(), and stateRxAck().

Friends And Related Symbol Documentation

◆ UwAlohaQTimer

friend class UwAlohaQTimer

friend

Member Data Documentation

◆ ack_status

UWALOHAQ_ACK_STATUS UwAloha_Q_NODE::ack_status

protected

Variable holding ack status

Referenced by handleTimerExpiration(), and stateRxAck().

◆ alohaq_timer

UwAlohaQTimer UwAloha_Q_NODE::alohaq_timer

protected

TDMA timer handler

Referenced by handleTimerExpiration(), start(), and stop().

◆ backoff_mode

UWALOHAQ_BACKOFF_MODE UwAloha_Q_NODE::backoff_mode

protected

Variable holding backoff mode

Referenced by handleTimerExpiration(), and UwAloha_Q_NODE().

◆ backoff_status

UWALOHAQ_BACKOFF_STATUS UwAloha_Q_NODE::backoff_status

protected

Variable holding backoff status

Referenced by handleTimerExpiration().

◆ buffer

std::deque<Packet *> UwAloha_Q_NODE::buffer

protected

Buffer of the MAC node

Referenced by recvFromUpperLayers(), and txData().

◆ curr_slot

int UwAloha_Q_NODE::curr_slot

protected

Current slot

Referenced by handleTimerExpiration(), and updateQ_table().

◆ data_phy_id

int UwAloha_Q_NODE::data_phy_id

protected

Data channel identifier

Referenced by txData().

◆ debug_

int UwAloha_Q_NODE::debug_

protected

Debug variable: 0 for no info, 1 for displaying debug info

Referenced by handleTimerExpiration(), Phy2MacEndRx(), Phy2MacEndTx(), Phy2MacStartRx(), rxPacketNotForMe(), start(), stateRxAck(), txData(), updateQ_table(), and UwAloha_Q_NODE().

◆ decide_backoff

int UwAloha_Q_NODE::decide_backoff

protected

Dercide about triggering backoff

Referenced by handleTimerExpiration().

◆ enable

bool UwAloha_Q_NODE::enable

protected

Referenced by start(), and stop().

◆ guard_time

double UwAloha_Q_NODE::guard_time

protected

Guard time between slots

Referenced by UwAloha_Q_NODE().

◆ HDR_size

int UwAloha_Q_NODE::HDR_size

protected

Size of the HDR if any

Referenced by initPkt(), and UwAloha_Q_NODE().

◆ max_packet_per_slot

int UwAloha_Q_NODE::max_packet_per_slot

protected

max numer of packet it can transmit per slot

Referenced by txData(), and UwAloha_Q_NODE().

◆ max_queue_size

int UwAloha_Q_NODE::max_queue_size

protected

Maximum dimension of Queue

Referenced by recvFromUpperLayers(), and UwAloha_Q_NODE().

◆ my_curr_slot

int UwAloha_Q_NODE::my_curr_slot

protected

Node's current slot in the ongoing frame

Referenced by handleTimerExpiration().

◆ packet_sent_curr_frame

int UwAloha_Q_NODE::packet_sent_curr_frame

protected

counter of packet has been sent in the current frame

Referenced by handleTimerExpiration(), and txData().

◆ packet_sent_curr_slot_

int UwAloha_Q_NODE::packet_sent_curr_slot_

protected

counter of packet has been sent in the current slot

Referenced by handleTimerExpiration(), Phy2MacEndTx(), and txData().

◆ phy_data_tag

std::string UwAloha_Q_NODE::phy_data_tag

protected

Referenced by command(), and txData().

◆ Q_table

std::vector<double> UwAloha_Q_NODE::Q_table {}

protected

Slot duration

Referenced by decide_if_backoff(), findMySlot(), start(), and updateQ_table().

◆ sea_trial_

int UwAloha_Q_NODE::sea_trial_

protected

Written log variable

Referenced by UwAloha_Q_NODE().

◆ slot_duration

double UwAloha_Q_NODE::slot_duration

protected

Referenced by handleTimerExpiration(), start(), and UwAloha_Q_NODE().

◆ slot_status

int UwAloha_Q_NODE::slot_status

protected

Is it my turn to transmit data?

Referenced by handleTimerExpiration(), start(), stateRxAck(), and txData().

◆ start_time

double UwAloha_Q_NODE::start_time

protected

Time to wait before starting the protocol

Referenced by command(), recvSyncClMsg(), and UwAloha_Q_NODE().

◆ tot_slots

int UwAloha_Q_NODE::tot_slots

protected

Number of slots in the frame

Referenced by findMySlot(), handleTimerExpiration(), start(), updateQ_table(), and UwAloha_Q_NODE().

◆ transceiver_status

UWALOHAQ_STATUS UwAloha_Q_NODE::transceiver_status

protected

Variable holding transceiver status

Referenced by handleTimerExpiration(), Phy2MacEndRx(), Phy2MacEndTx(), Phy2MacStartRx(), stateRxAck(), and txData().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/data_link/uw-aloha-q/uw-aloha-q-node.h
DESERT_Framework/DESERT/data_link/uw-aloha-q/uw-aloha-q-node.cpp
