#include <uwphysicalrogersmodel.h>

Inheritance diagram for UnderwaterPhysicalRogersModel:

Collaboration diagram for UnderwaterPhysicalRogersModel:

Public Member Functions
	UnderwaterPhysicalRogersModel ()

virtual	~UnderwaterPhysicalRogersModel ()

virtual int	command (int, const char const )

Protected Member Functions
virtual double	getGain (Packet *p)

virtual double	getAttenuation (const double &_sound_speed_water_bottom, const double &_distance, const double &_frequency, const double &_bottom_depth)

const double	getBeta () const

const double	get_Ks () const

const double	get_N0 () const

const double	get_M0 () const

const double	get_g () const

const double	getTheta_g (const double &_bottom_depth, const double &_distance) const

const double	getTheta_g_max (const double &_sound_speed_water_bottom) const

const double	getTheta_c (const double &_sound_speed_water_bottom, const double &_frequency, const double &_bottom_depth) const

double	getThorp (double _frequency)

Static Protected Attributes
static const double	FROMDBPERKYARDTODMPERM

static constexpr double	FROMDBPERKYARDTODMPERM

Private Attributes
double	bottom_depth

double	sound_speed_water_bottom

double	sound_speed_water_surface

double	sound_speed_sediment

double	density_sediment

double	density_water

double	attenuation_coeff_sediment

int	debug_

Constructor & Destructor Documentation

◆ UnderwaterPhysicalRogersModel()

UnderwaterPhysicalRogersModel::UnderwaterPhysicalRogersModel ( )

Constructor of UnderwaterMPhyBpskDb class.

References attenuation_coeff_sediment, bottom_depth, debug_, density_sediment, density_water, sound_speed_sediment, sound_speed_water_bottom, and sound_speed_water_surface.

◆ ~UnderwaterPhysicalRogersModel()

virtual UnderwaterPhysicalRogersModel::~UnderwaterPhysicalRogersModel ( )

inlinevirtual

Destructor of UnderwaterMPhyBpskDb class.

Member Function Documentation

◆ command()

int UnderwaterPhysicalRogersModel::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

References attenuation_coeff_sediment, bottom_depth, density_sediment, density_water, sound_speed_sediment, sound_speed_water_bottom, and sound_speed_water_surface.

◆ get_g()

const double UnderwaterPhysicalRogersModel::get_g ( ) const

inlineprotected

Magnitude of the negative sound speed profile

Returns: Magnitude of the negative sound speed profile

References sound_speed_water_bottom, and sound_speed_water_surface.

Referenced by getTheta_g_max().

◆ get_Ks()

const double UnderwaterPhysicalRogersModel::get_Ks ( ) const

inlineprotected

Sediment attenuation coefficient (dB/(m*kHz))

Returns: Sediment attenuation coefficient

References attenuation_coeff_sediment.

Referenced by getBeta().

◆ get_M0()

const double UnderwaterPhysicalRogersModel::get_M0 ( ) const

inlineprotected

Ratio between the density of the sediment and the density of the water

References density_sediment, and density_water.

Referenced by getBeta().

◆ get_N0()

const double UnderwaterPhysicalRogersModel::get_N0 ( ) const

inlineprotected

Ratio between the sound speed on sound at the surface and sound speed of sound in the sediment

References sound_speed_sediment, and sound_speed_water_bottom.

Referenced by getBeta().

◆ getAttenuation()

double UnderwaterPhysicalRogersModel::getAttenuation	(	const double &	_sound_speed_water_bottom,
		const double &	_distance,
		const double &	_frequency,
		const double &	_bottom_depth
	)

protectedvirtual

Attenuation of acoustic signal in underwater channel. The value returned is base on Rogers model for shallow water.

Parameters

_sound_speed_water_bottom	sound speed of the sound at the bottom (in m/s)
_distance	distance between source and destination (in meters)
_frequency	frequency (in kHz)
_bottom_depth	height of the column of water (in meters)

Returns: Attenuation in dB

References getBeta(), getTheta_c(), getTheta_g(), getTheta_g_max(), and getThorp().

Referenced by getGain().

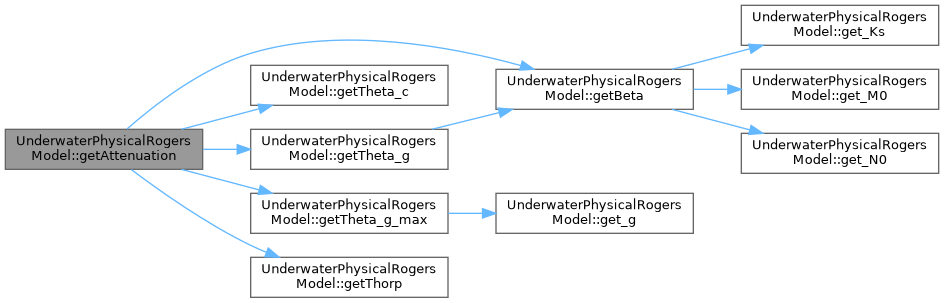

Here is the call graph for this function:

◆ getBeta()

const double UnderwaterPhysicalRogersModel::getBeta ( ) const

inlineprotected

Bottom loss (dB/rad) derived from the expression for the Rayleigh reflection coefficient for a two-fluid lossy interface

return Bottom loss (dB/rad)

References get_Ks(), get_M0(), and get_N0().

Referenced by getAttenuation(), and getTheta_g().

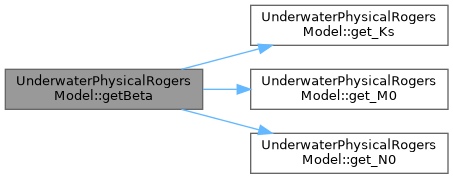

Here is the call graph for this function:

◆ getGain()

double UnderwaterPhysicalRogersModel::getGain ( Packet * p )

protectedvirtual

References bottom_depth, debug_, getAttenuation(), and sound_speed_water_bottom.

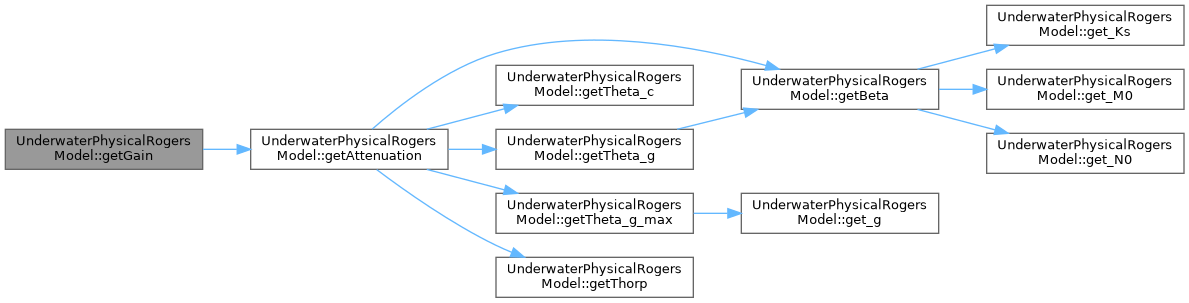

Here is the call graph for this function:

◆ getTheta_c()

const double UnderwaterPhysicalRogersModel::getTheta_c	(	const double &	_sound_speed_water_bottom,
		const double &	_frequency,
		const double &	_bottom_depth
	)		const

inlineprotected

Cutoff angle of the lowest mode

Parameters

_sound_speed_water_bottom	sound speed in m/s of the sound at the bottom
_frequency	in kHz
_bottom_depth	height of the column of water in meters

Returns: Cutoff angle of the lowest mode

Referenced by getAttenuation().

◆ getTheta_g()

const double UnderwaterPhysicalRogersModel::getTheta_g	(	const double &	_bottom_depth,
		const double &	_distance
	)		const

inlineprotected

Effective angle of the last mode striped

Parameters

_bottom_depth	height of the column of water in meters
_distance	distance between source and destination (in meters)

Returns: Effective angle of the last mode striped

References getBeta().

Referenced by getAttenuation().

Here is the call graph for this function:

◆ getTheta_g_max()

const double UnderwaterPhysicalRogersModel::getTheta_g_max ( const double & _sound_speed_water_bottom ) const

inlineprotected

Maximum grazion angle for an RBR mode

Parameters

_sound_speed_bottom sound speed in m/s of the sound at the bottom

Returns: Maximum grazion angle for an RBR mode

References get_g().

Referenced by getAttenuation().

Here is the call graph for this function:

◆ getThorp()

double UnderwaterPhysicalRogersModel::getThorp ( double _frequency )

inlineprotected

Absorption coefficient calculated by using Thorp's equation.

Parameters

_frequency in kHz

Returns: absorprion coefficient in dB/m

References FROMDBPERKYARDTODMPERM.

Referenced by getAttenuation().

Member Data Documentation

◆ attenuation_coeff_sediment

double UnderwaterPhysicalRogersModel::attenuation_coeff_sediment

private

Attenuation coefficient of the sediment (dB/(m*kHz)).

Referenced by command(), get_Ks(), and UnderwaterPhysicalRogersModel().

◆ bottom_depth

double UnderwaterPhysicalRogersModel::bottom_depth

private

Water depth (m)

Referenced by command(), getGain(), and UnderwaterPhysicalRogersModel().

◆ debug_

int UnderwaterPhysicalRogersModel::debug_

private

Debug level.

Referenced by getGain(), and UnderwaterPhysicalRogersModel().

◆ density_sediment

double UnderwaterPhysicalRogersModel::density_sediment

private

Sediment density (g/cm^3).

Referenced by command(), get_M0(), and UnderwaterPhysicalRogersModel().

◆ density_water

double UnderwaterPhysicalRogersModel::density_water

private

Water density (g/cm^3).

Referenced by command(), get_M0(), and UnderwaterPhysicalRogersModel().

◆ FROMDBPERKYARDTODMPERM [1/2]

const double UnderwaterPhysicalRogersModel::FROMDBPERKYARDTODMPERM

staticprotected

Initial value:

=

0.001093613298338

Conversion factor from dB/kyard to dB/m.

Referenced by getThorp().

◆ FROMDBPERKYARDTODMPERM [2/2]

constexpr double UnderwaterPhysicalRogersModel::FROMDBPERKYARDTODMPERM

staticconstexprprotected

Initial value:

=

0.001093613298338

Conversion factor from dB/kyard to dB/m.

◆ sound_speed_sediment

double UnderwaterPhysicalRogersModel::sound_speed_sediment

private

Speed of sound in the sediment (m/s).

Referenced by command(), get_N0(), and UnderwaterPhysicalRogersModel().

◆ sound_speed_water_bottom

double UnderwaterPhysicalRogersModel::sound_speed_water_bottom

private

Speed of sound in water at the sea bottom level (m/s).

Referenced by command(), get_g(), get_N0(), getGain(), and UnderwaterPhysicalRogersModel().

◆ sound_speed_water_surface

double UnderwaterPhysicalRogersModel::sound_speed_water_surface

private

Speed of sound in water at the sea surface level (m/s).

Referenced by command(), get_g(), and UnderwaterPhysicalRogersModel().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/physical/uwphysicalrogersmodel/uwphysicalrogersmodel.h
DESERT_Framework/DESERT/physical/uwphysicalrogersmodel/uwphysicalrogersmodel.cpp
