#include <uw-ofdm-aloha.h>

Inheritance diagram for UWOFDMAloha:

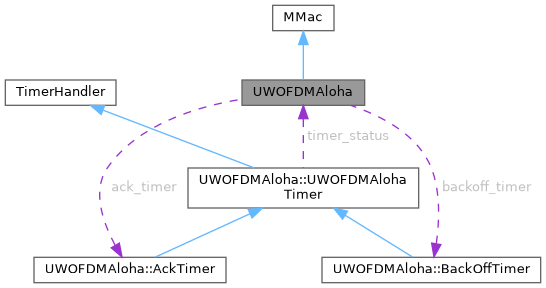

Collaboration diagram for UWOFDMAloha:

Classes
class	AckTimer

class	BackOffTimer

class	UWOFDMAlohaTimer

Public Member Functions
	UWOFDMAloha ()

virtual	~UWOFDMAloha ()

virtual int	command (int argc, const char const argv)

void	init_macofdm_node (int subCarNum, double subCarSize, int ctrl_subCar, string modulation)

Protected Types
enum	UWOFDMALOHA_STATUS { UWOFDMALOHA_STATE_IDLE = 1 , UWOFDMALOHA_STATE_BACKOFF , UWOFDMALOHA_STATE_TX_DATA , UWOFDMALOHA_STATE_TX_ACK , UWOFDMALOHA_STATE_WAIT_ACK , UWOFDMALOHA_STATE_DATA_RX , UWOFDMALOHA_STATE_ACK_RX , UWOFDMALOHA_STATE_NOT_SET , UWOFDMALOHA_STATE_CHK_ACK_TIMEOUT , UWOFDMALOHA_STATE_RX_IDLE , UWOFDMALOHA_STATE_RX_WAIT_ACK , UWOFDMALOHA_STATE_CHK_BACKOFF_TIMEOUT , UWOFDMALOHA_STATE_RX_BACKOFF , UWOFDMALOHA_STATE_WRONG_PKT_RX , UWOFDMALOHA_STATE_RX_IN_PROGRESS , UWOFDMALOHA_STATE_MULTIPLE_RX_IN_PROGRESS }

enum	UWOFDMALOHA_REASON_STATUS { UWOFDMALOHA_REASON_DATA_PENDING , UWOFDMALOHA_REASON_DATA_RX , UWOFDMALOHA_REASON_DATA_TX , UWOFDMALOHA_REASON_ACK_TX , UWOFDMALOHA_REASON_ACK_RX , UWOFDMALOHA_REASON_ACK_TIMEOUT , UWOFDMALOHA_REASON_DATA_EMPTY , UWOFDMALOHA_REASON_NOT_SET , UWOFDMALOHA_REASON_MAX_TX_TRIES , UWOFDMALOHA_REASON_START_RX , UWOFDMALOHA_REASON_PKT_NOT_FOR_ME , UWOFDMALOHA_REASON_WAIT_ACK_PENDING , UWOFDMALOHA_REASON_PKT_ERROR , UWOFDMALOHA_REASON_BACKOFF_TIMEOUT , UWOFDMALOHA_REASON_BACKOFF_PENDING , UWOFDMALOHA_REASON_PKT_RECEIVING }

enum	UWOFDMALOHA_PKT_TYPE { UWOFDMALOHA_ACK_PKT = 1 , UWOFDMALOHA_DATA_PKT , UWOFDMALOHA_DATAMAX_PKT }

enum	UWOFDMALOHA_ACK_MODES { UWOFDMALOHA_ACK_MODE = 1 , UWOFDMALOHA_NO_ACK_MODE }

enum	UWOFDMALOHA_TIMER_STATUS { UWOFDMALOHA_IDLE = 1 , UWOFDMALOHA_RUNNING , UWOFDMALOHA_FROZEN , UWOFDMALOHA_EXPIRED }

Protected Member Functions
virtual void	recvFromUpperLayers (Packet *p)

virtual void	Mac2PhyStartTx (Packet *p)

virtual void	Phy2MacEndTx (const Packet *p)

virtual void	Phy2MacStartRx (const Packet *p)

virtual void	Phy2MacEndRx (Packet *p)

virtual double	computeTxTime (UWOFDMALOHA_PKT_TYPE type)

virtual void	initPkt (Packet *p, UWOFDMALOHA_PKT_TYPE pkt_type, int dest_addr=0)

virtual double	getBackoffTime ()

virtual void	txData ()

virtual void	txAck (int dest_addr)

virtual void	stateIdle ()

virtual void	stateRxIdle ()

virtual void	stateTxData ()

virtual void	stateTxAck (int dest_addr)

virtual void	stateWaitAck ()

virtual void	stateRxWaitAck ()

virtual void	stateBackoff ()

virtual void	stateRxBackoff ()

virtual void	stateCheckAckExpired ()

virtual void	stateCheckBackoffExpired ()

virtual void	stateRxData (Packet *p)

virtual void	stateRxAck (Packet *p)

virtual void	exitBackoff ()

virtual void	printStateInfo (double delay=0)

virtual void	initInfo ()

virtual void	refreshState (UWOFDMALOHA_STATUS state)

virtual void	refreshReason (UWOFDMALOHA_REASON_STATUS reason)

virtual void	incrCurrTxRounds ()

virtual void	resetCurrTxRounds ()

virtual void	updateRTT (double rtt)

virtual double	getRTT ()

virtual void	updateAckTimeout (double rtt)

virtual void	updateLastDataIdRx (int id)

int	getPktSeqNum (Packet *p)

void	putPktInQueue (Packet *p)

void	eraseItemFromPktQueue (int seq_num)

void	putAckTimerInMap (int seq_num)

void	eraseItemFrommapAckTimer (int seq_num)

virtual int	getRemainingPkts ()

virtual void	incrUpperDataRx ()

int	getUpLayersDataPktsRx ()

void	displayCarriers (Packet *p)

void	addInvalidCarriers (int c)

Protected Attributes
int	max_tx_tries

double	wait_constant

double	backoff_tuner

int	max_payload

int	HDR_size

int	ACK_size

double	ACK_timeout

int	buffer_pkts

double	alpha_

double	max_backoff_counter

int	uwofdmaloha_debug

std::vector< string >	mac_carMod

std::vector< int >	mac_carVec

int	mac_ncarriers

double	mac_carrierSize

int	ctrl_car

bool	AckInBand = true

bool	alohaOnCarrier = false

int	waitforpktnum = 0

int	n_receptions

std::vector< Packet * >	pkt_rcv_queue

std::vector< int >	nouse_carriers

bool	disturbanceNode

int	last_sent_data_id

bool	print_transitions

bool	has_buffer_queue

double	start_tx_time

double	srtt

double	sumrtt

double	sumrtt2

int	rttsamples

int	curr_tx_rounds

int	last_data_id_rx

int	recv_data_id

Packet *	curr_data_pkt

int	txsn

AckTimer	ack_timer

BackOffTimer	backoff_timer

UWOFDMALOHA_REASON_STATUS	last_reason

UWOFDMALOHA_STATUS	curr_state

UWOFDMALOHA_STATUS	prev_state

UWOFDMALOHA_STATUS	prev_prev_state

UWOFDMALOHA_ACK_MODES	ack_mode

map< pktSeqNum, Packet * >	mapPacket

map< pktSeqNum, AckTimer >	mapAckTimer

ofstream	fout

Static Protected Attributes
static bool	initialized = false

static const double	prop_speed = 1500.0

static map< UWOFDMALOHA_STATUS, string >	status_info

static map< UWOFDMALOHA_REASON_STATUS, string >	reason_info

static map< UWOFDMALOHA_PKT_TYPE, string >	pkt_type_info

Member Enumeration Documentation

◆ UWOFDMALOHA_ACK_MODES

enum UWOFDMAloha::UWOFDMALOHA_ACK_MODES

protected

Enumeration class of UWOFDMAloha acknowledgement mode. First enumerator is given value 1. This protocol supports both acknowledgement and non-acknowledgement technique. If Acknowledgement is set, it uses Stop-And-Wait ARQ technique.

Enumerator
UWOFDMALOHA_ACK_MODE
UWOFDMALOHA_NO_ACK_MODE

◆ UWOFDMALOHA_PKT_TYPE

enum UWOFDMAloha::UWOFDMALOHA_PKT_TYPE

protected

Enumeration class of UWOFDMAloha packet type. First enumerator is given value

Three kinds of packets are supported by UWOFDMAloha protocol.

Enumerator
UWOFDMALOHA_ACK_PKT
UWOFDMALOHA_DATA_PKT
UWOFDMALOHA_DATAMAX_PKT

◆ UWOFDMALOHA_REASON_STATUS

enum UWOFDMAloha::UWOFDMALOHA_REASON_STATUS

protected

Enumeration class which tells the nodes the reason why it is in this state. First enumerator is given value 1.

Enumerator
UWOFDMALOHA_REASON_DATA_PENDING
UWOFDMALOHA_REASON_DATA_RX
UWOFDMALOHA_REASON_DATA_TX
UWOFDMALOHA_REASON_ACK_TX
UWOFDMALOHA_REASON_ACK_RX
UWOFDMALOHA_REASON_ACK_TIMEOUT
UWOFDMALOHA_REASON_DATA_EMPTY
UWOFDMALOHA_REASON_NOT_SET
UWOFDMALOHA_REASON_MAX_TX_TRIES
UWOFDMALOHA_REASON_START_RX
UWOFDMALOHA_REASON_PKT_NOT_FOR_ME
UWOFDMALOHA_REASON_WAIT_ACK_PENDING
UWOFDMALOHA_REASON_PKT_ERROR
UWOFDMALOHA_REASON_BACKOFF_TIMEOUT
UWOFDMALOHA_REASON_BACKOFF_PENDING
UWOFDMALOHA_REASON_PKT_RECEIVING

◆ UWOFDMALOHA_STATUS

enum UWOFDMAloha::UWOFDMALOHA_STATUS

protected

Enumeration class of UWOFDMAloha status. First enumerator is given value 1.

Enumerator
UWOFDMALOHA_STATE_IDLE
UWOFDMALOHA_STATE_BACKOFF
UWOFDMALOHA_STATE_TX_DATA
UWOFDMALOHA_STATE_TX_ACK
UWOFDMALOHA_STATE_WAIT_ACK
UWOFDMALOHA_STATE_DATA_RX
UWOFDMALOHA_STATE_ACK_RX
UWOFDMALOHA_STATE_NOT_SET
UWOFDMALOHA_STATE_CHK_ACK_TIMEOUT
UWOFDMALOHA_STATE_RX_IDLE
UWOFDMALOHA_STATE_RX_WAIT_ACK
UWOFDMALOHA_STATE_CHK_BACKOFF_TIMEOUT
UWOFDMALOHA_STATE_RX_BACKOFF
UWOFDMALOHA_STATE_WRONG_PKT_RX
UWOFDMALOHA_STATE_RX_IN_PROGRESS
UWOFDMALOHA_STATE_MULTIPLE_RX_IN_PROGRESS

◆ UWOFDMALOHA_TIMER_STATUS

enum UWOFDMAloha::UWOFDMALOHA_TIMER_STATUS

protected

Enumeration class of UWOFDMAloha timer status. First enumerator is given value

It is employed to know the current status of a timer.

Enumerator
UWOFDMALOHA_IDLE
UWOFDMALOHA_RUNNING
UWOFDMALOHA_FROZEN
UWOFDMALOHA_EXPIRED

Constructor & Destructor Documentation

◆ UWOFDMAloha()

UWOFDMAloha::UWOFDMAloha ( )

Constructor of UWOFDMAloha Class

References ACK_size, ACK_timeout, alpha_, backoff_tuner, buffer_pkts, has_buffer_queue, HDR_size, max_backoff_counter, max_payload, max_tx_tries, uwofdmaloha_debug, and wait_constant.

Referenced by UWOFDMAloha::AckTimer::expire().

◆ ~UWOFDMAloha()

UWOFDMAloha::~UWOFDMAloha ( )

virtual

Destructor of UWOFDMAloha Class

Member Function Documentation

◆ addInvalidCarriers()

void UWOFDMAloha::addInvalidCarriers ( int c )

inlineprotected

Adds carriers that should not be used

References nouse_carriers.

Referenced by command().

◆ command()

int UWOFDMAloha::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	number of arguments in argv
argv	array of strings which are the command parameters (Note that argv[0] is the name of the object)

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched succesfully or not

References ack_mode, addInvalidCarriers(), disturbanceNode, fout, getUpLayersDataPktsRx(), init_macofdm_node(), initialized, initInfo(), mapPacket, print_transitions, UWOFDMALOHA_ACK_MODE, and UWOFDMALOHA_NO_ACK_MODE.

Here is the call graph for this function:

◆ computeTxTime()

double UWOFDMAloha::computeTxTime ( UWOFDMALOHA_PKT_TYPE type )

protectedvirtual

Compute the transmission time of a packet. It uses a cross-layer message to calculate the duration of that packet.

Parameters

type	is a UWOFDMALOHA_PKT_TYPE

Returns: tranmission time of a packet which is a double data type.

References ACK_size, HDR_size, mapPacket, max_payload, UWOFDMALOHA_ACK_PKT, and UWOFDMALOHA_DATA_PKT.

◆ displayCarriers()

void UWOFDMAloha::displayCarriers ( Packet * p )

inlineprotected

Prints the carriers as a sequence of 0s and 1s

References hdr_OFDM::carriers, and mac_ncarriers.

Referenced by initPkt(), and stateBackoff().

◆ eraseItemFrommapAckTimer()

void UWOFDMAloha::eraseItemFrommapAckTimer ( int seq_num )

inlineprotected

Erase an item from acknowledgement stored container.

Parameters

seq_num which is an integer data type.

References mapAckTimer.

Referenced by stateRxAck().

◆ eraseItemFromPktQueue()

void UWOFDMAloha::eraseItemFromPktQueue ( int seq_num )

inlineprotected

It erases the packet from the container.

Parameters

seq_num which is an integer data type.

References mapPacket, and uwofdmaloha_debug.

Referenced by stateRxAck(), stateTxData(), and txData().

◆ exitBackoff()

void UWOFDMAloha::exitBackoff ( )

protectedvirtual

It stops the backoff timer.

References backoff_timer, and UWOFDMAloha::UWOFDMAlohaTimer::stop().

Referenced by stateCheckBackoffExpired().

Here is the call graph for this function:

◆ getBackoffTime()

double UWOFDMAloha::getBackoffTime ( )

protectedvirtual

This function calculates the backoff duration and return the backoff time.It employs the exponential backoff algorithm.

Returns: backoff duration which is a double data type.

References ACK_timeout, backoff_timer, backoff_tuner, UWOFDMAloha::UWOFDMAlohaTimer::getCounter(), UWOFDMAloha::UWOFDMAlohaTimer::incrCounter(), max_backoff_counter, and uwofdmaloha_debug.

Referenced by stateBackoff().

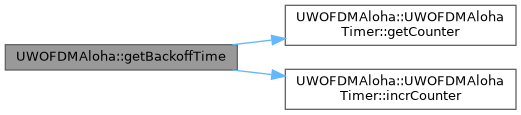

Here is the call graph for this function:

◆ getPktSeqNum()

int UWOFDMAloha::getPktSeqNum ( Packet * p )

inlineprotected

This method is used to get the sequence number from a packet.

Parameters

packet pointer

Returns: it returns sequence number which is an integer data type.

Referenced by initPkt(), Mac2PhyStartTx(), Phy2MacEndRx(), Phy2MacStartRx(), putPktInQueue(), stateRxAck(), stateRxData(), stateTxData(), and txData().

◆ getRemainingPkts()

virtual int UWOFDMAloha::getRemainingPkts ( )

inlineprotectedvirtual

Number of packets which MAC layer receives form upper layer(s) but were not transmitted.

Returns: an integer value.

References mapPacket.

◆ getRTT()

virtual double UWOFDMAloha::getRTT ( )

inlineprotectedvirtual

This method is used to get the average RTT over all the receives RTT.

Returns: average RTT time which is a double data type.

References rttsamples, and sumrtt.

◆ getUpLayersDataPktsRx()

int UWOFDMAloha::getUpLayersDataPktsRx ( )

inlineprotected

Referenced by command().

◆ incrCurrTxRounds()

virtual void UWOFDMAloha::incrCurrTxRounds ( )

inlineprotectedvirtual

Increments the current transmission round of a packet. It keeps track of the number of retransmition of a packet.

References curr_tx_rounds.

Referenced by stateTxData(), and txData().

◆ incrUpperDataRx()

virtual void UWOFDMAloha::incrUpperDataRx ( )

inlineprotectedvirtual

Increment the number of Data packet receive for the upper layer.

Referenced by recvFromUpperLayers().

◆ init_macofdm_node()

void UWOFDMAloha::init_macofdm_node	(	int	subCarNum,
		double	subCarSize,
		int	ctrl_subCar,
		string	modulation
	)

Initialize subCarriers parameters inside a node, default all carriers are used

Parameters

subCarNum	number of subcarriers used in the system
carSize	size of carriers
ctrl_subCar	number of control subcarriers if used
modulation	modulation used in the subcarriers

References ctrl_car, mac_carMod, mac_carrierSize, mac_carVec, mac_ncarriers, and nouse_carriers.

Referenced by command().

◆ initInfo()

void UWOFDMAloha::initInfo ( )

protectedvirtual

This function is used to initialize the UWOFDMAloha protocol.

Referenced by command().

◆ initPkt()

void UWOFDMAloha::initPkt	(	Packet *	p,
		UWOFDMALOHA_PKT_TYPE	pkt_type,
		int	dest_addr = `0`
	)

protectedvirtual

This method, initialize the packet. If the packet is received from the upper layer, it adds the header (if any). In case of UWOFDMAloha with ARQ technique, it set the fields of ACK packet.

Parameters

Packet	pointer P. The packet can be Data packet or ACK packet.
pkt_type	is an UWOFDMALOHA_PKT_TYPE. Packet can be either Data packet or ACK packet.
dest_addr	is a integer data type. It is initialized as 0.

References ACK_size, hdr_OFDM::carMod, hdr_OFDM::carrierNum, hdr_OFDM::carriers, hdr_OFDM::carrierSize, displayCarriers(), disturbanceNode, getPktSeqNum(), HDR_size, mac_carMod, mac_carrierSize, mac_carVec, mac_ncarriers, hdr_OFDM::nativeOFDM, PT_MMAC_ACK, recv_data_id, UWOFDMALOHA_ACK_PKT, UWOFDMALOHA_DATA_PKT, and uwofdmaloha_debug.

Referenced by recvFromUpperLayers(), and txAck().

Here is the call graph for this function:

◆ Mac2PhyStartTx()

void UWOFDMAloha::Mac2PhyStartTx ( Packet * p )

protectedvirtual

It informs that a packet transmission started.

Parameters

Packet pointer

References getPktSeqNum(), and uwofdmaloha_debug.

Referenced by txAck(), and txData().

Here is the call graph for this function:

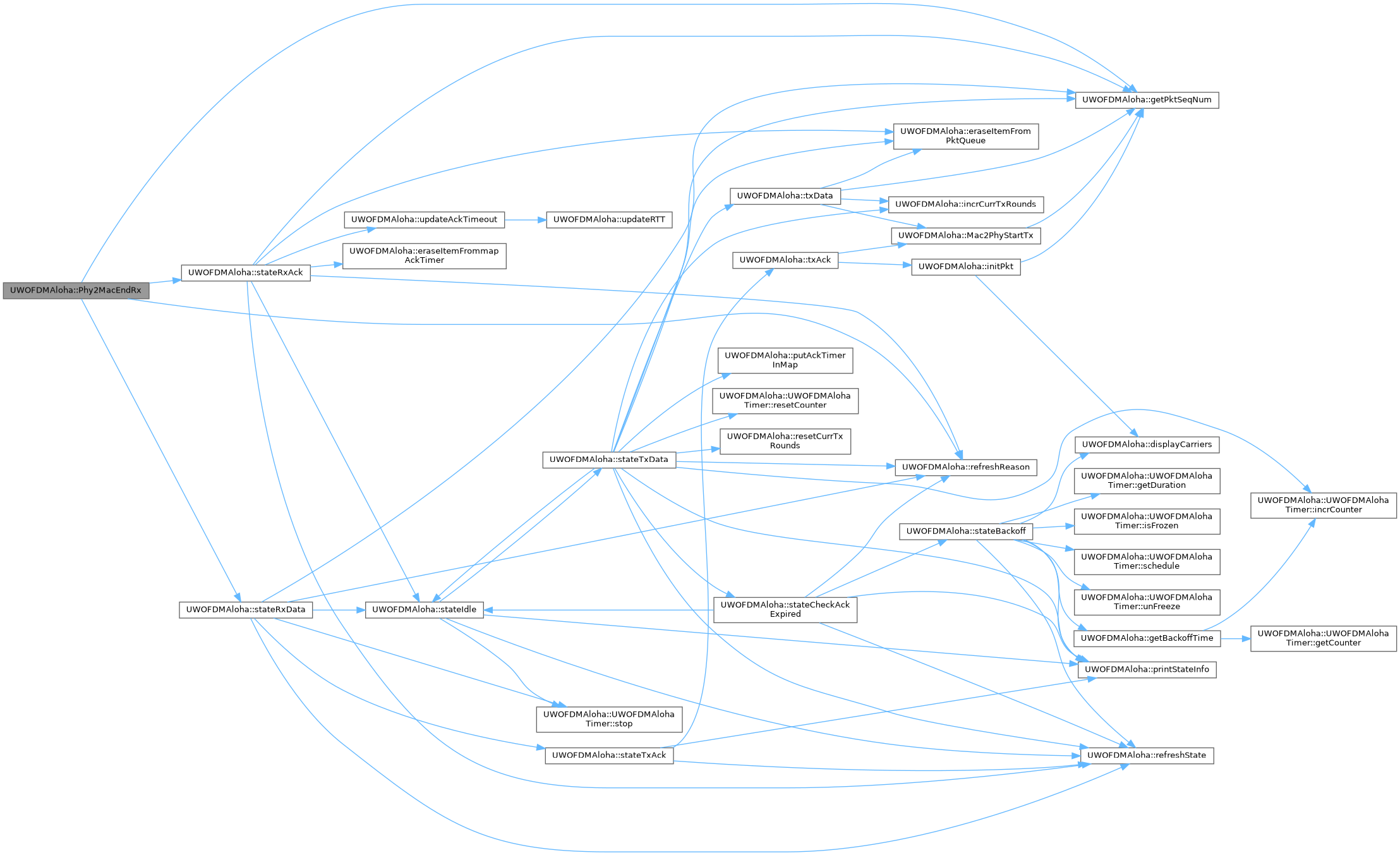

◆ Phy2MacEndRx()

void UWOFDMAloha::Phy2MacEndRx ( Packet * p )

protectedvirtual

PHY layer informs the MAC layer that the reception of the packet is over.

Parameters

Packet pointer.

References ack_mode, curr_state, getPktSeqNum(), n_receptions, prop_speed, refreshReason(), stateRxAck(), stateRxData(), status_info, uwofdmaloha_debug, UWOFDMALOHA_NO_ACK_MODE, UWOFDMALOHA_REASON_ACK_RX, UWOFDMALOHA_REASON_DATA_RX, UWOFDMALOHA_REASON_PKT_ERROR, UWOFDMALOHA_REASON_PKT_NOT_FOR_ME, UWOFDMALOHA_STATE_IDLE, UWOFDMALOHA_STATE_WAIT_ACK, and waitforpktnum.

Here is the call graph for this function:

◆ Phy2MacEndTx()

void UWOFDMAloha::Phy2MacEndTx ( const Packet * p )

protectedvirtual

It infroms that a packet transmission end.

Parameters

Packet pointer

References ack_mode, curr_state, last_reason, prev_state, reason_info, refreshReason(), stateIdle(), stateWaitAck(), status_info, UWOFDMALOHA_ACK_MODE, uwofdmaloha_debug, UWOFDMALOHA_REASON_ACK_TX, UWOFDMALOHA_REASON_DATA_TX, UWOFDMALOHA_STATE_IDLE, UWOFDMALOHA_STATE_TX_ACK, UWOFDMALOHA_STATE_TX_DATA, and UWOFDMALOHA_STATE_WAIT_ACK.

Here is the call graph for this function:

◆ Phy2MacStartRx()

void UWOFDMAloha::Phy2MacStartRx ( const Packet * p )

protectedvirtual

PHY layer informs the MAC layer that it is receiving a packet. @Param Packet pointer (constant)

References getPktSeqNum(), n_receptions, and uwofdmaloha_debug.

Here is the call graph for this function:

◆ printStateInfo()

void UWOFDMAloha::printStateInfo ( double delay = 0 )

protectedvirtual

This methods print the state information of the nodes.

Parameters

delay is a double data type.

References curr_state, fout, last_reason, prev_state, reason_info, status_info, uwofdmaloha_debug, and UWOFDMALOHA_STATE_BACKOFF.

Referenced by stateBackoff(), stateCheckAckExpired(), stateCheckBackoffExpired(), stateIdle(), stateRxBackoff(), stateRxIdle(), stateRxWaitAck(), stateTxAck(), stateTxData(), and stateWaitAck().

◆ putAckTimerInMap()

void UWOFDMAloha::putAckTimerInMap ( int seq_num )

inlineprotected

Put acknowledgement timer in the container.

Parameters

seq_num which is an integer data type.

References ack_timer, and mapAckTimer.

Referenced by stateTxData().

◆ putPktInQueue()

void UWOFDMAloha::putPktInQueue ( Packet * p )

inlineprotected

A node receives packet(s) from upper layer and store them in the container.

Parameters

packet pointer

References getPktSeqNum(), mapPacket, and uwofdmaloha_debug.

Referenced by recvFromUpperLayers().

Here is the call graph for this function:

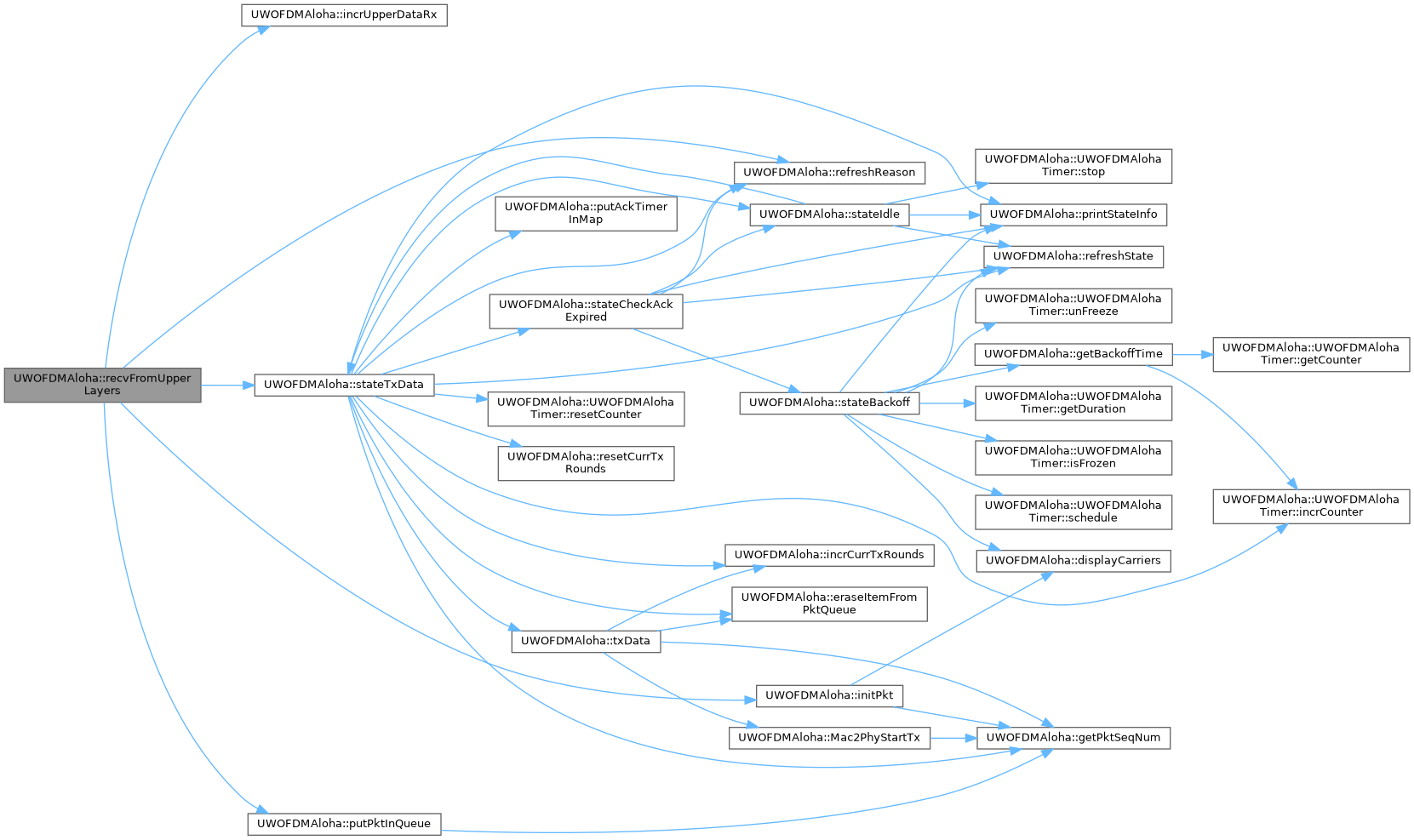

◆ recvFromUpperLayers()

void UWOFDMAloha::recvFromUpperLayers ( Packet * p )

protectedvirtual

This function receives the packet from upper layer and save it in the queue.

Parameters

Packet pointer

References buffer_pkts, curr_state, has_buffer_queue, incrUpperDataRx(), initPkt(), mapPacket, n_receptions, pkt_rcv_queue, prev_prev_state, prev_state, putPktInQueue(), refreshReason(), stateTxData(), status_info, UWOFDMALOHA_DATA_PKT, uwofdmaloha_debug, UWOFDMALOHA_REASON_DATA_PENDING, and UWOFDMALOHA_STATE_IDLE.

Here is the call graph for this function:

◆ refreshReason()

virtual void UWOFDMAloha::refreshReason ( UWOFDMALOHA_REASON_STATUS reason )

inlineprotectedvirtual

To know the reason why a node is in this current state.

Parameters

reason is an UWOFDMALOHA_REASON_STATUS type.

References last_reason.

Referenced by Phy2MacEndRx(), Phy2MacEndTx(), recvFromUpperLayers(), stateCheckAckExpired(), stateCheckBackoffExpired(), stateRxAck(), stateRxData(), and stateTxData().

◆ refreshState()

virtual void UWOFDMAloha::refreshState ( UWOFDMALOHA_STATUS state )

inlineprotectedvirtual

Refreshes the states of the node. The node save the information of three states, they are: previous to previous state, previous state and current state of the node.

Parameters

state which is an UWOFDMALOHA_STATUS type.

References curr_state, prev_prev_state, and prev_state.

Referenced by stateBackoff(), stateCheckAckExpired(), stateCheckBackoffExpired(), stateIdle(), stateRxAck(), stateRxBackoff(), stateRxData(), stateRxIdle(), stateRxWaitAck(), stateTxAck(), stateTxData(), and stateWaitAck().

◆ resetCurrTxRounds()

virtual void UWOFDMAloha::resetCurrTxRounds ( )

inlineprotectedvirtual

If a node is going to transmit a new packet, it resets the tx counter.

References curr_tx_rounds.

Referenced by stateTxData().

◆ stateBackoff()

void UWOFDMAloha::stateBackoff ( )

protectedvirtual

If ACK packet is not received within the acknowledgement expire time.

References backoff_timer, displayCarriers(), getBackoffTime(), UWOFDMAloha::UWOFDMAlohaTimer::getDuration(), UWOFDMAloha::UWOFDMAlohaTimer::isFrozen(), mapPacket, print_transitions, printStateInfo(), refreshState(), UWOFDMAloha::UWOFDMAlohaTimer::schedule(), UWOFDMAloha::UWOFDMAlohaTimer::unFreeze(), uwofdmaloha_debug, and UWOFDMALOHA_STATE_BACKOFF.

Referenced by stateCheckAckExpired(), and stateCheckBackoffExpired().

Here is the call graph for this function:

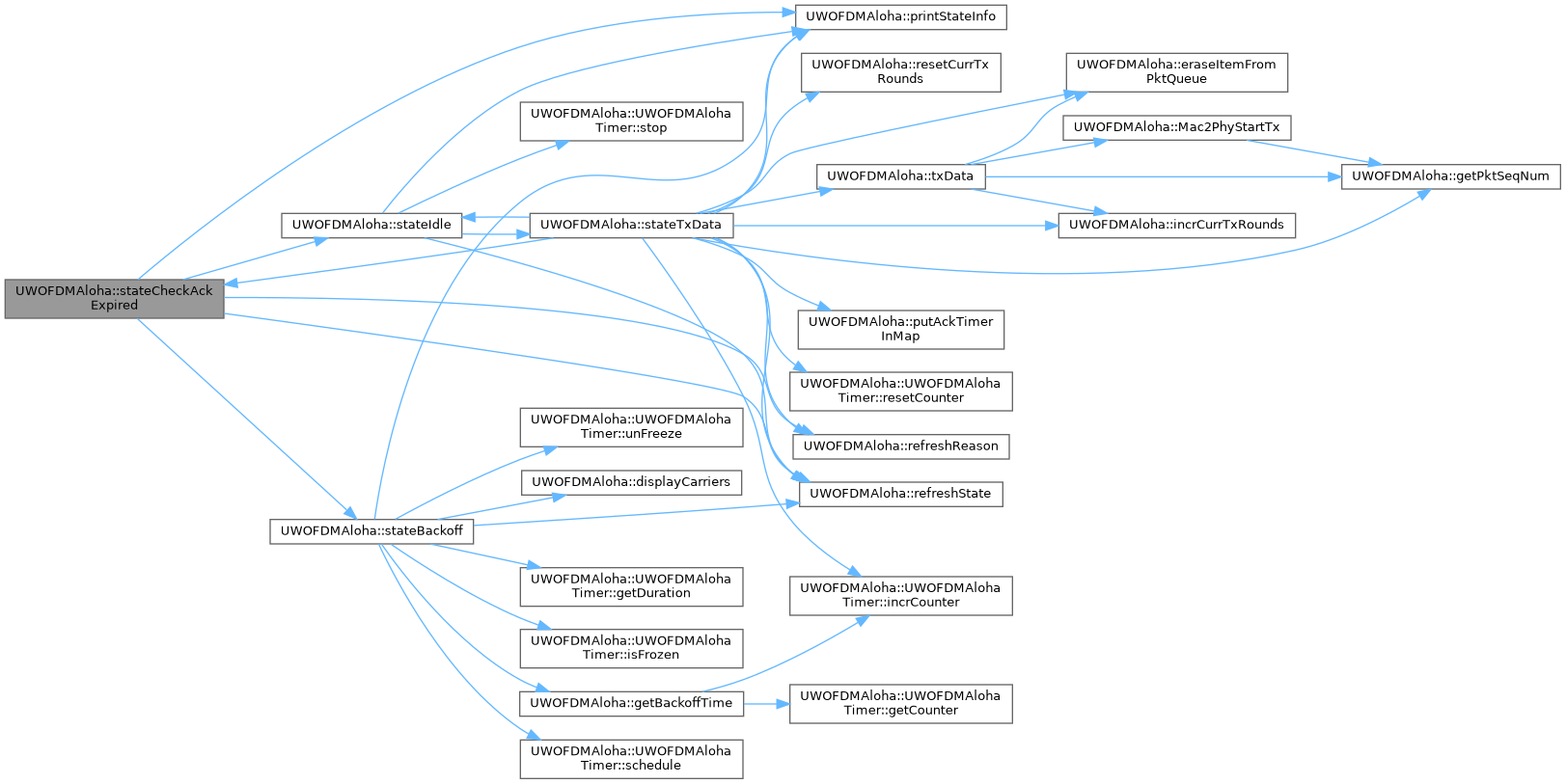

◆ stateCheckAckExpired()

void UWOFDMAloha::stateCheckAckExpired ( )

protectedvirtual

It checks whether the ack timer is already expired while it was busy with other activities.

References curr_state, mapAckTimer, print_transitions, printStateInfo(), refreshReason(), refreshState(), stateBackoff(), stateIdle(), status_info, uwofdmaloha_debug, UWOFDMALOHA_REASON_ACK_TIMEOUT, UWOFDMALOHA_REASON_WAIT_ACK_PENDING, UWOFDMALOHA_STATE_CHK_ACK_TIMEOUT, and UWOFDMALOHA_STATE_WAIT_ACK.

Referenced by stateTxData().

Here is the call graph for this function:

◆ stateCheckBackoffExpired()

void UWOFDMAloha::stateCheckBackoffExpired ( )

protectedvirtual

It checks whether the backoff timer is already expired while it was busy with other activities.

References backoff_timer, curr_state, exitBackoff(), UWOFDMAloha::UWOFDMAlohaTimer::isActive(), UWOFDMAloha::UWOFDMAlohaTimer::isExpired(), print_transitions, printStateInfo(), refreshReason(), refreshState(), stateBackoff(), stateIdle(), status_info, uwofdmaloha_debug, UWOFDMALOHA_REASON_BACKOFF_PENDING, UWOFDMALOHA_REASON_BACKOFF_TIMEOUT, and UWOFDMALOHA_STATE_CHK_BACKOFF_TIMEOUT.

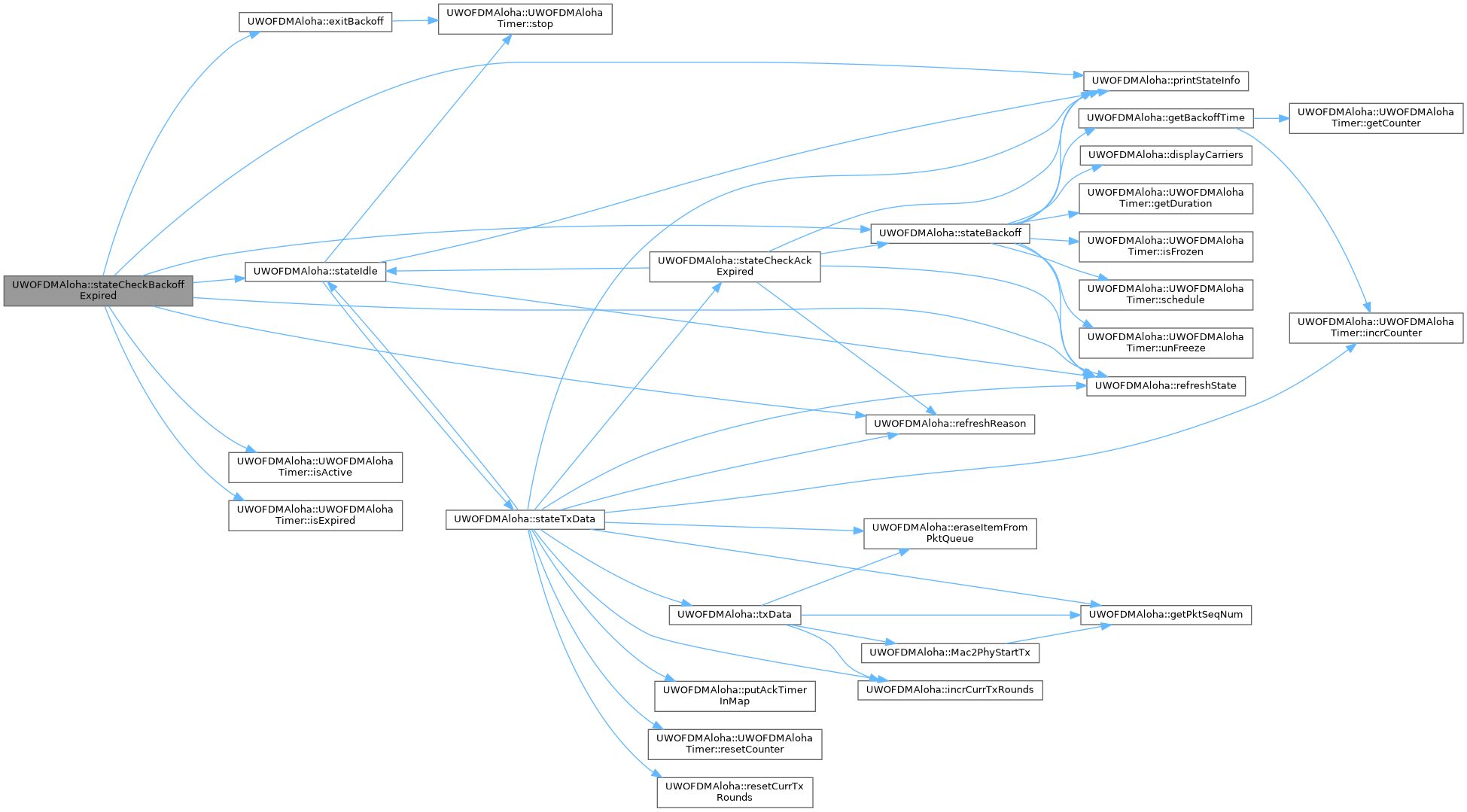

Here is the call graph for this function:

◆ stateIdle()

void UWOFDMAloha::stateIdle ( )

protectedvirtual

Node is in Idle state. It only changes its state if it has packet(s) to transmit or it receives a packet.

References backoff_timer, mapAckTimer, mapPacket, n_receptions, pkt_rcv_queue, print_transitions, printStateInfo(), refreshState(), stateTxData(), UWOFDMAloha::UWOFDMAlohaTimer::stop(), uwofdmaloha_debug, and UWOFDMALOHA_STATE_IDLE.

Referenced by Phy2MacEndTx(), stateCheckAckExpired(), stateCheckBackoffExpired(), stateRxAck(), stateRxData(), and stateTxData().

Here is the call graph for this function:

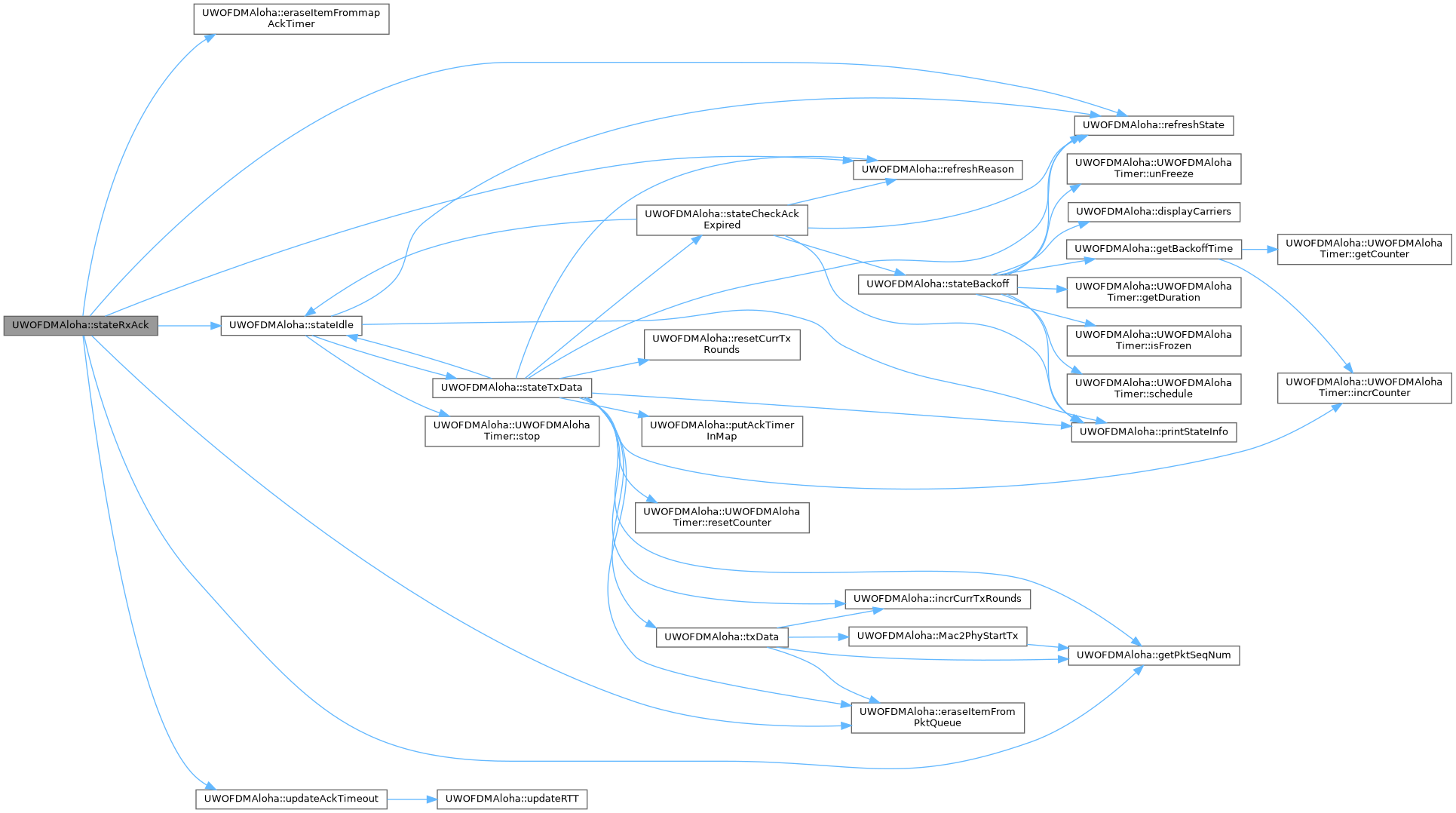

◆ stateRxAck()

void UWOFDMAloha::stateRxAck ( Packet * p )

protectedvirtual

The node comes to this state if it receives an ACK packet. After receiving an ACK packet it changes it states according to the previously stored status information.

References eraseItemFrommapAckTimer(), eraseItemFromPktQueue(), getPktSeqNum(), mapAckTimer, refreshReason(), refreshState(), start_tx_time, stateIdle(), updateAckTimeout(), uwofdmaloha_debug, UWOFDMALOHA_REASON_ACK_RX, and UWOFDMALOHA_STATE_ACK_RX.

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

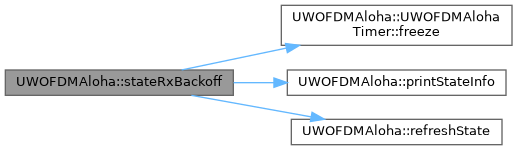

◆ stateRxBackoff()

void UWOFDMAloha::stateRxBackoff ( )

protectedvirtual

If a node start receiving a packet when it is in backoff state. The node first freeze (or another word, hold) the backoff timer and start receiving the packet.

References backoff_timer, UWOFDMAloha::UWOFDMAlohaTimer::freeze(), print_transitions, printStateInfo(), refreshState(), and UWOFDMALOHA_STATE_RX_BACKOFF.

Here is the call graph for this function:

◆ stateRxData()

void UWOFDMAloha::stateRxData ( Packet * p )

protectedvirtual

It process the packet which is received. After receiving a packet it changes it states according to the previously stored status information.

Parameters

<i>Data</i> packet pointer

References ack_mode, ack_timer, getPktSeqNum(), HDR_size, recv_data_id, refreshReason(), refreshState(), stateIdle(), stateTxAck(), UWOFDMAloha::UWOFDMAlohaTimer::stop(), UWOFDMALOHA_ACK_MODE, uwofdmaloha_debug, UWOFDMALOHA_REASON_DATA_RX, and UWOFDMALOHA_STATE_DATA_RX.

Referenced by Phy2MacEndRx().

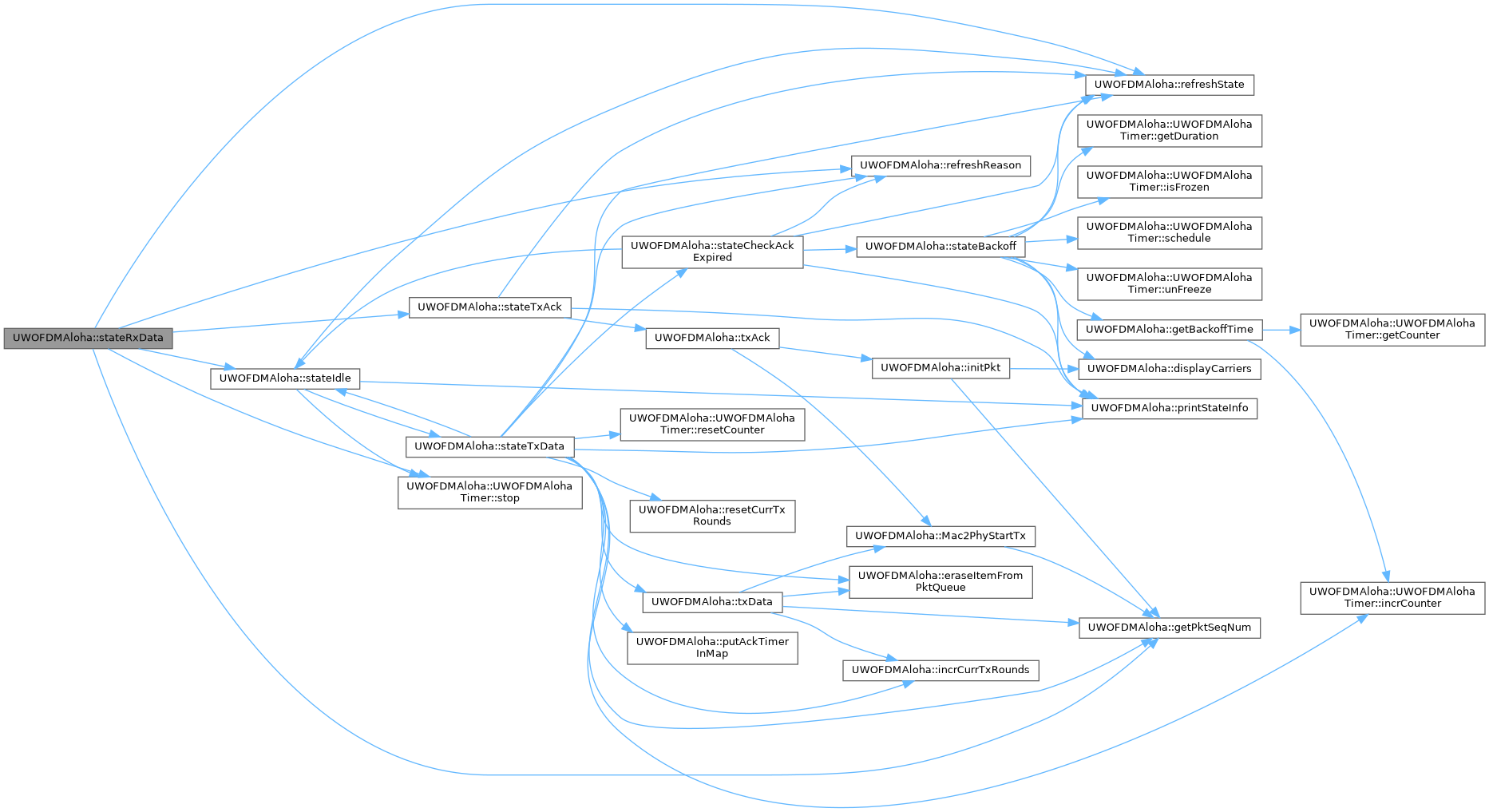

Here is the call graph for this function:

◆ stateRxIdle()

void UWOFDMAloha::stateRxIdle ( )

protectedvirtual

If a node start receiving a packet in Idle state.

References print_transitions, printStateInfo(), refreshState(), and UWOFDMALOHA_STATE_RX_IDLE.

Here is the call graph for this function:

◆ stateRxWaitAck()

void UWOFDMAloha::stateRxWaitAck ( )

protectedvirtual

If a node receives any packet while it was waiting for ACK packet, it moves to this state. The packet it is receiving can be a Data packet from another node or ACK packet.

References print_transitions, printStateInfo(), refreshState(), and UWOFDMALOHA_STATE_RX_WAIT_ACK.

Here is the call graph for this function:

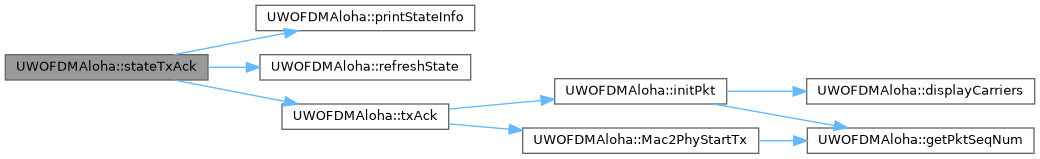

◆ stateTxAck()

void UWOFDMAloha::stateTxAck ( int dest_addr )

protectedvirtual

If the protocl uses ARQ technique, in that case, after receiving a Data packet the node sends an ACK packet.

References print_transitions, printStateInfo(), refreshState(), txAck(), uwofdmaloha_debug, and UWOFDMALOHA_STATE_TX_ACK.

Referenced by stateRxData().

Here is the call graph for this function:

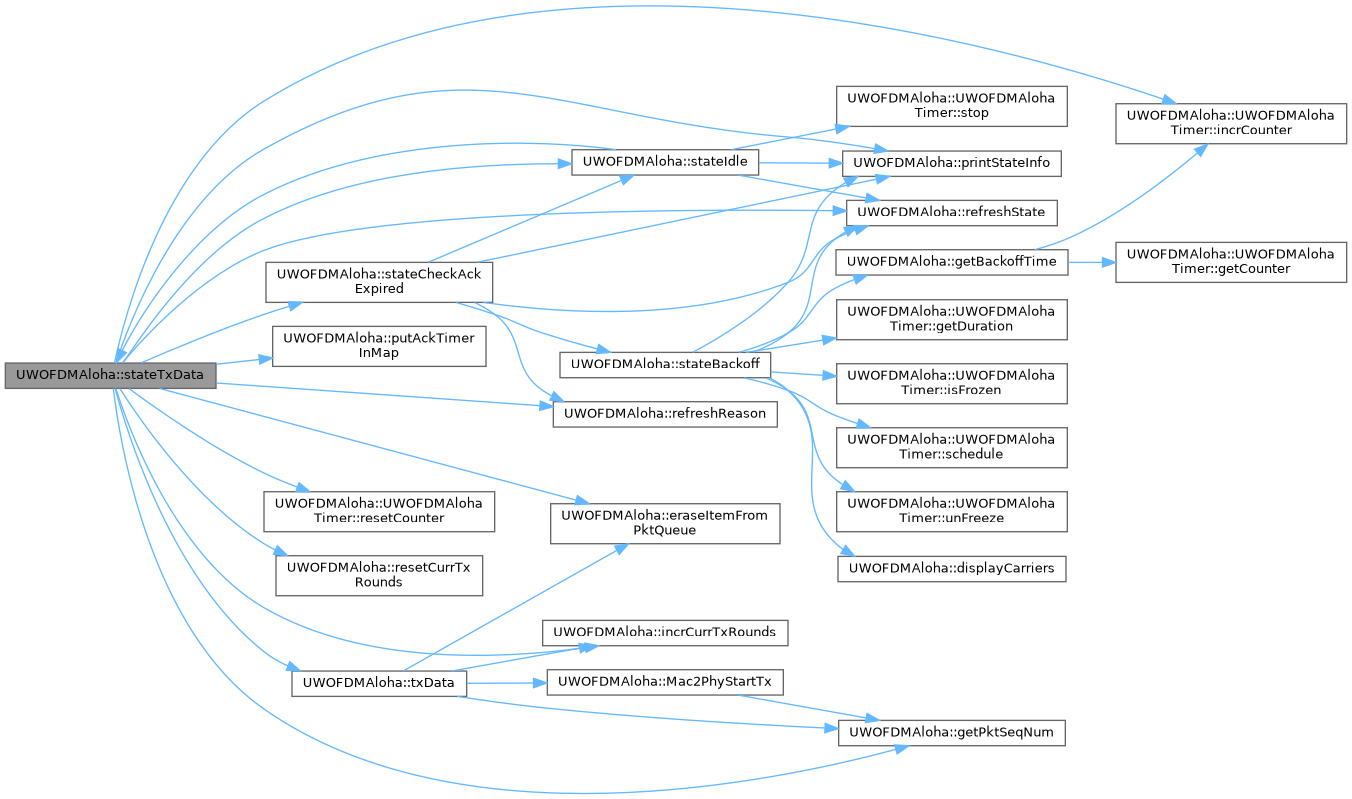

◆ stateTxData()

void UWOFDMAloha::stateTxData ( )

protectedvirtual

If a node has packet to transmits. In such case, it moves from Idle state to data transmits state.

References backoff_timer, hdr_OFDM::carMod, curr_data_pkt, curr_tx_rounds, eraseItemFromPktQueue(), getPktSeqNum(), UWOFDMAloha::UWOFDMAlohaTimer::incrCounter(), incrCurrTxRounds(), last_sent_data_id, mac_ncarriers, mapAckTimer, mapPacket, max_tx_tries, print_transitions, printStateInfo(), putAckTimerInMap(), refreshReason(), refreshState(), UWOFDMAloha::UWOFDMAlohaTimer::resetCounter(), resetCurrTxRounds(), start_tx_time, stateCheckAckExpired(), stateIdle(), txData(), uwofdmaloha_debug, UWOFDMALOHA_REASON_MAX_TX_TRIES, UWOFDMALOHA_STATE_TX_DATA, and waitforpktnum.

Referenced by recvFromUpperLayers(), and stateIdle().

Here is the call graph for this function:

◆ stateWaitAck()

void UWOFDMAloha::stateWaitAck ( )

protectedvirtual

After transmitting a Data packet, a node waits for the ACK packet.

References ACK_timeout, mapAckTimer, print_transitions, printStateInfo(), refreshState(), uwofdmaloha_debug, UWOFDMALOHA_STATE_WAIT_ACK, and wait_constant.

Referenced by Phy2MacEndTx().

Here is the call graph for this function:

◆ txAck()

void UWOFDMAloha::txAck ( int dest_addr )

protectedvirtual

This methods transmits ACK packet from MAC layer to PHY layer.

Parameters

dest_addr which is an integer data type.

References initPkt(), Mac2PhyStartTx(), UWOFDMALOHA_ACK_PKT, and uwofdmaloha_debug.

Referenced by stateTxAck().

Here is the call graph for this function:

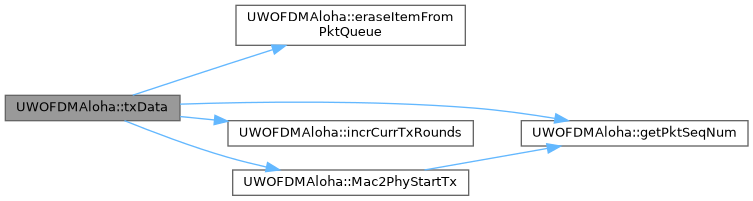

◆ txData()

void UWOFDMAloha::txData ( )

protectedvirtual

This method transmits Data packets from MAC layer to PHY layer.

References ack_mode, curr_data_pkt, eraseItemFromPktQueue(), getPktSeqNum(), incrCurrTxRounds(), Mac2PhyStartTx(), uwofdmaloha_debug, UWOFDMALOHA_NO_ACK_MODE, and waitforpktnum.

Referenced by stateTxData().

Here is the call graph for this function:

◆ updateAckTimeout()

void UWOFDMAloha::updateAckTimeout ( double rtt )

protectedvirtual

Like updateRTT() function.

References ACK_timeout, updateRTT(), and uwofdmaloha_debug.

Referenced by stateRxAck().

Here is the call graph for this function:

◆ updateLastDataIdRx()

virtual void UWOFDMAloha::updateLastDataIdRx ( int id )

inlineprotectedvirtual

It updates the sequence number of the last data packet rx.

Parameters

id	is an integer data type.

References last_data_id_rx.

◆ updateRTT()

void UWOFDMAloha::updateRTT ( double rtt )

protectedvirtual

Update the Round Trip Time (RTT) which is necessary to compute the acknowledgement duration as well as backoff duration.

Parameters

rtt	is a double data type.

References ACK_timeout, alpha_, rttsamples, srtt, sumrtt, and sumrtt2.

Referenced by updateAckTimeout().

Member Data Documentation

◆ ack_mode

UWOFDMALOHA_ACK_MODES UWOFDMAloha::ack_mode

protected

Enum variable. It tells the node whether to use ARQ technique or not.

Referenced by command(), Phy2MacEndRx(), Phy2MacEndTx(), stateRxData(), and txData().

◆ ACK_size

int UWOFDMAloha::ACK_size

protected

Size of the ACK, if the node uses ARQ technique

Referenced by computeTxTime(), initPkt(), and UWOFDMAloha().

◆ ACK_timeout

double UWOFDMAloha::ACK_timeout

protected

ACK timeout for the initial packet

Referenced by getBackoffTime(), stateWaitAck(), updateAckTimeout(), updateRTT(), and UWOFDMAloha().

◆ ack_timer

AckTimer UWOFDMAloha::ack_timer

protected

An object of the AckTimer class

Referenced by putAckTimerInMap(), and stateRxData().

◆ AckInBand

bool UWOFDMAloha::AckInBand = true

protected

◆ alohaOnCarrier

bool UWOFDMAloha::alohaOnCarrier = false

protected

◆ alpha_

double UWOFDMAloha::alpha_

protected

This variable is used to tune the RTT

Referenced by updateRTT(), and UWOFDMAloha().

◆ backoff_timer

BackOffTimer UWOFDMAloha::backoff_timer

protected

An object of the backoff timer class

Referenced by exitBackoff(), getBackoffTime(), stateBackoff(), stateCheckBackoffExpired(), stateIdle(), stateRxBackoff(), and stateTxData().

◆ backoff_tuner

double UWOFDMAloha::backoff_tuner

protected

Tunes the backoff duration.

Referenced by getBackoffTime(), and UWOFDMAloha().

◆ buffer_pkts

int UWOFDMAloha::buffer_pkts

protected

Number of packets a node can store in the container

Referenced by recvFromUpperLayers(), and UWOFDMAloha().

◆ ctrl_car

int UWOFDMAloha::ctrl_car

protected

Referenced by init_macofdm_node().

◆ curr_data_pkt

Packet* UWOFDMAloha::curr_data_pkt

protected

Pointer of the latest selected data packet.

Referenced by stateTxData(), and txData().

◆ curr_state

UWOFDMALOHA_STATUS UWOFDMAloha::curr_state

protected

Enum variable. It stores the current state of a node

Referenced by Phy2MacEndRx(), Phy2MacEndTx(), printStateInfo(), recvFromUpperLayers(), refreshState(), stateCheckAckExpired(), and stateCheckBackoffExpired().

◆ curr_tx_rounds

int UWOFDMAloha::curr_tx_rounds

protected

How many times a packet is transmitted

Referenced by incrCurrTxRounds(), resetCurrTxRounds(), and stateTxData().

◆ disturbanceNode

bool UWOFDMAloha::disturbanceNode

protected

Referenced by command(), and initPkt().

◆ fout

ofstream UWOFDMAloha::fout

protected

An object of ofstream class

Referenced by command(), and printStateInfo().

◆ has_buffer_queue

bool UWOFDMAloha::has_buffer_queue

protected

Whether the node has buffer to store data or not

Referenced by recvFromUpperLayers(), and UWOFDMAloha().

◆ HDR_size

int UWOFDMAloha::HDR_size

protected

Size of the HDR if any

Referenced by computeTxTime(), initPkt(), stateRxData(), and UWOFDMAloha().

◆ initialized

bool UWOFDMAloha::initialized = false

staticprotected

It checks whether UWOFDMAloha protocol is initialized or not. If FALSE means, not initialized and if TRUE means it is initialized

Referenced by command(), and initInfo().

◆ last_data_id_rx

int UWOFDMAloha::last_data_id_rx

protected

The sequence number of last received packet

Referenced by updateLastDataIdRx().

◆ last_reason

UWOFDMALOHA_REASON_STATUS UWOFDMAloha::last_reason

protected

Enum variable which stores the last reason why a node changes its state

Referenced by Phy2MacEndTx(), printStateInfo(), and refreshReason().

◆ last_sent_data_id

int UWOFDMAloha::last_sent_data_id

protected

sequence number of the last sent packet

Referenced by stateTxData().

◆ mac_carMod

std::vector<string> UWOFDMAloha::mac_carMod

protected

--— OFDM PARAMS

Referenced by init_macofdm_node(), and initPkt().

◆ mac_carrierSize

double UWOFDMAloha::mac_carrierSize

protected

Referenced by init_macofdm_node(), and initPkt().

◆ mac_carVec

std::vector<int> UWOFDMAloha::mac_carVec

protected

Referenced by init_macofdm_node(), and initPkt().

◆ mac_ncarriers

int UWOFDMAloha::mac_ncarriers

protected

Referenced by displayCarriers(), init_macofdm_node(), initPkt(), and stateTxData().

◆ mapAckTimer

map<pktSeqNum, AckTimer> UWOFDMAloha::mapAckTimer

protected

Container where acknowledgement timer(s) is stored

Referenced by eraseItemFrommapAckTimer(), putAckTimerInMap(), stateCheckAckExpired(), stateIdle(), stateRxAck(), stateTxData(), and stateWaitAck().

◆ mapPacket

map<pktSeqNum, Packet *> UWOFDMAloha::mapPacket

protected

Container where Data packets are stored

Referenced by command(), computeTxTime(), eraseItemFromPktQueue(), getRemainingPkts(), putPktInQueue(), recvFromUpperLayers(), stateBackoff(), stateIdle(), and stateTxData().

◆ max_backoff_counter

double UWOFDMAloha::max_backoff_counter

protected

Maximum number of backoff it will consider while it increases the backoff exponentially

Referenced by getBackoffTime(), and UWOFDMAloha().

◆ max_payload

int UWOFDMAloha::max_payload

protected

Maximum number of payload in a packet.

Referenced by computeTxTime(), and UWOFDMAloha().

◆ max_tx_tries

int UWOFDMAloha::max_tx_tries

protected

Maximum number of retransmissions attempt.

Referenced by stateTxData(), and UWOFDMAloha().

◆ n_receptions

int UWOFDMAloha::n_receptions

protected

Referenced by Phy2MacEndRx(), Phy2MacStartRx(), recvFromUpperLayers(), and stateIdle().

◆ nouse_carriers

std::vector<int> UWOFDMAloha::nouse_carriers

protected

Referenced by addInvalidCarriers(), and init_macofdm_node().

◆ pkt_rcv_queue

std::vector<Packet *> UWOFDMAloha::pkt_rcv_queue

protected

Referenced by recvFromUpperLayers(), and stateIdle().

◆ pkt_type_info

map< UWOFDMAloha::UWOFDMALOHA_PKT_TYPE, string > UWOFDMAloha::pkt_type_info

staticprotected

Container which stores all the packet type information of UWOFDMAloha

Referenced by initInfo().

◆ prev_prev_state

UWOFDMALOHA_STATUS UWOFDMAloha::prev_prev_state

protected

Enum variable. It stores the previous to previous state of a node

Referenced by recvFromUpperLayers(), and refreshState().

◆ prev_state

UWOFDMALOHA_STATUS UWOFDMAloha::prev_state

protected

Enum variable. It stores the previous state of a node

Referenced by Phy2MacEndTx(), printStateInfo(), recvFromUpperLayers(), and refreshState().

◆ print_transitions

bool UWOFDMAloha::print_transitions

protected

Whether to print the state of the nodes

Referenced by command(), initInfo(), stateBackoff(), stateCheckAckExpired(), stateCheckBackoffExpired(), stateIdle(), stateRxBackoff(), stateRxIdle(), stateRxWaitAck(), stateTxAck(), stateTxData(), and stateWaitAck().

◆ prop_speed

const double UWOFDMAloha::prop_speed = 1500.0

staticprotected

Speed of the sound signal

Referenced by Phy2MacEndRx().

◆ reason_info

map< UWOFDMAloha::UWOFDMALOHA_REASON_STATUS, string > UWOFDMAloha::reason_info

staticprotected

Container which stores all the reason information

Referenced by initInfo(), Phy2MacEndTx(), and printStateInfo().

◆ recv_data_id

int UWOFDMAloha::recv_data_id

protected

The sequence number of the packet which is received

Referenced by initPkt(), and stateRxData().

◆ rttsamples

int UWOFDMAloha::rttsamples

protected

Number of RTT samples

Referenced by getRTT(), and updateRTT().

◆ srtt

double UWOFDMAloha::srtt

protected

Smoothed Round Trip Time, calculated as for TCP

Referenced by updateRTT().

◆ start_tx_time

double UWOFDMAloha::start_tx_time

protected

Time when a packet start transmitting

Referenced by stateRxAck(), and stateTxData().

◆ status_info

map< UWOFDMAloha::UWOFDMALOHA_STATUS, string > UWOFDMAloha::status_info

staticprotected

Container which stores all the status information

Referenced by initInfo(), Phy2MacEndRx(), Phy2MacEndTx(), printStateInfo(), recvFromUpperLayers(), stateCheckAckExpired(), and stateCheckBackoffExpired().

◆ sumrtt

double UWOFDMAloha::sumrtt

protected

Sum of RTT samples

Referenced by getRTT(), and updateRTT().

◆ sumrtt2

double UWOFDMAloha::sumrtt2

protected

Sum of (RTT^2)

Referenced by updateRTT().

◆ txsn

int UWOFDMAloha::txsn

protected

Sequence number of the packet which is transmitted

◆ uwofdmaloha_debug

int UWOFDMAloha::uwofdmaloha_debug

protected

◆ wait_constant

double UWOFDMAloha::wait_constant

protected

This fixed time is used to componsate different time variations.

Referenced by stateWaitAck(), and UWOFDMAloha().

◆ waitforpktnum

int UWOFDMAloha::waitforpktnum = 0

protected

Referenced by Phy2MacEndRx(), stateTxData(), and txData().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/data_link/uw-ofdm-aloha/uw-ofdm-aloha.h
DESERT_Framework/DESERT/data_link/uw-ofdm-aloha/uw-ofdm-aloha.cpp

Classes

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Member Enumeration Documentation

◆ UWOFDMALOHA_ACK_MODES

◆ UWOFDMALOHA_PKT_TYPE

◆ UWOFDMALOHA_REASON_STATUS

◆ UWOFDMALOHA_STATUS

◆ UWOFDMALOHA_TIMER_STATUS

Constructor & Destructor Documentation

◆ UWOFDMAloha()

◆ ~UWOFDMAloha()

Member Function Documentation

◆ addInvalidCarriers()

◆ command()

◆ computeTxTime()

◆ displayCarriers()

◆ eraseItemFrommapAckTimer()

◆ eraseItemFromPktQueue()

◆ exitBackoff()

◆ getBackoffTime()

◆ getPktSeqNum()

◆ getRemainingPkts()

◆ getRTT()

◆ getUpLayersDataPktsRx()

◆ incrCurrTxRounds()

◆ incrUpperDataRx()

◆ init_macofdm_node()

◆ initInfo()

◆ initPkt()

◆ Mac2PhyStartTx()

◆ Phy2MacEndRx()

◆ Phy2MacEndTx()

◆ Phy2MacStartRx()

◆ printStateInfo()

◆ putAckTimerInMap()

◆ putPktInQueue()

◆ recvFromUpperLayers()

◆ refreshReason()

◆ refreshState()

◆ resetCurrTxRounds()

◆ stateBackoff()

◆ stateCheckAckExpired()

◆ stateCheckBackoffExpired()

◆ stateIdle()

◆ stateRxAck()

◆ stateRxBackoff()

◆ stateRxData()

◆ stateRxIdle()

◆ stateRxWaitAck()

◆ stateTxAck()

◆ stateTxData()

◆ stateWaitAck()

◆ txAck()

◆ txData()

◆ updateAckTimeout()

◆ updateLastDataIdRx()

◆ updateRTT()

Member Data Documentation

◆ ack_mode

◆ ACK_size

◆ ACK_timeout

◆ ack_timer

◆ AckInBand

◆ alohaOnCarrier

◆ alpha_

◆ backoff_timer

◆ backoff_tuner

◆ buffer_pkts

◆ ctrl_car

◆ curr_data_pkt

◆ curr_state

◆ curr_tx_rounds

◆ disturbanceNode

◆ fout

◆ has_buffer_queue

◆ HDR_size
