UWMPhypatch Class Reference

#include <uwmphypatch.h>

Inheritance diagram for UWMPhypatch:

Collaboration diagram for UWMPhypatch:

Public Member Functions
	UWMPhypatch ()
	~UWMPhypatch ()
virtual void	recv (Packet *)

Protected Member Functions
virtual void	startTx (Packet *p)
virtual void	endTx (Packet *p)
virtual void	startRx (Packet *p)
virtual void	endRx (Packet *p)
virtual double	getTxDuration (Packet *)
virtual int	getModulationType (Packet *)

Private Attributes
int	debug_

Detailed Description

Class to patch the absence of a PHY layer's module when we want to use a module of the MAC layer.

This module just receive a packet and forward it to the layer below (or above) sending the required cross-layer messages to the MAC layer.

Definition at line 62 of file uwmphypatch.h.

Constructor & Destructor Documentation

UWMPhypatch()

UWMPhypatch::UWMPhypatch

(

)

Class constructor.

Definition at line 57 of file uwmphypatch.cpp.

~UWMPhypatch()

UWMPhypatch::~UWMPhypatch

(

)

Class destructor.

Definition at line 62 of file uwmphypatch.cpp.

Member Function Documentation

endRx()

void UWMPhypatch::endRx ( Packet *  p )

protectedvirtual

 Method to send a packet to the above layers after the finishing of a

reception.

 @param p pointer to the last received packet.

Definition at line 100 of file uwmphypatch.cpp.

endTx()

void UWMPhypatch::endTx ( Packet *  p )

protectedvirtual

 Method to send a cross layer message Phy2MacEndTx(p) to notify the

above layers of the simulator about the end of a given transmission, see http://telecom.dei.unipd.it/ns/miracle/doxygen/classMPhy.html#c8c2f52d3833fed8ac736aca0ee52c98.

 @param p pointer to the last transmitted packet.

Definition at line 88 of file uwmphypatch.cpp.

getModulationType()

int UWMPhypatch::getModulationType ( Packet *  )

protectedvirtual

Unused method.

Definition at line 111 of file uwmphypatch.cpp.

getTxDuration()

double UWMPhypatch::getTxDuration ( Packet *  )

protectedvirtual

Unused method.

Definition at line 107 of file uwmphypatch.cpp.

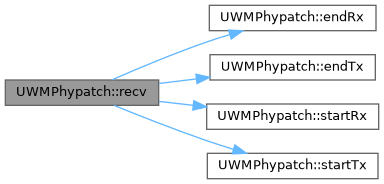

recv()

void UWMPhypatch::recv ( Packet *  p )

virtual

Method to handle the reception of packets arriving from the upper layers of the network simulator.

Parameters

p	pointer to the packet that has been received from the simulator's upper layers.

Definition at line 67 of file uwmphypatch.cpp.

startRx()

void UWMPhypatch::startRx ( Packet *  p )

protectedvirtual

 Method in charge to send a cross layer message Phy2MacStartRx(p) to

notify the above layers of the simulator about the start of a reception, see http://telecom.dei.unipd.it/ns/miracle/doxygen/classMPhy.html#a15cc91b98013e1c631ad85072867ab6.

 @param p pointer to the last received packet.

Definition at line 94 of file uwmphypatch.cpp.

startTx()

void UWMPhypatch::startTx ( Packet *  p )

protectedvirtual

Method to send the packet to be transmitted over the communication channel.

Parameters

p	pointer to the packet to be transmitted.

Definition at line 82 of file uwmphypatch.cpp.

Member Data Documentation

debug_

int UWMPhypatch::debug_

private

Flag to enable debug mode (i.e., printing of debug messages) if set to 1.

Definition at line 64 of file uwmphypatch.h.

---

The documentation for this class was generated from the following files:

• uwmphypatch.h
• uwmphypatch.cpp
