This is the base class of UWAloha protocol, which is a derived class of MMac. More...

#include <uwaloha.h>

Inheritance diagram for UWAloha:

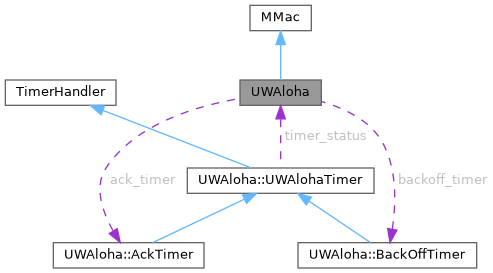

Collaboration diagram for UWAloha:

Classes
class	AckTimer

class	BackOffTimer

class	UWAlohaTimer

Public Member Functions
	UWAloha ()

virtual	~UWAloha ()

virtual int	command (int argc, const char const argv)

Protected Types
enum	UWALOHA_STATUS { UWALOHA_STATE_IDLE = 1 , UWALOHA_STATE_BACKOFF , UWALOHA_STATE_TX_DATA , UWALOHA_STATE_TX_ACK , UWALOHA_STATE_WAIT_ACK , UWALOHA_STATE_DATA_RX , UWALOHA_STATE_ACK_RX , UWALOHA_STATE_NOT_SET , UWALOHA_STATE_CHK_ACK_TIMEOUT , UWALOHA_STATE_RX_IDLE , UWALOHA_STATE_RX_WAIT_ACK , UWALOHA_STATE_CHK_BACKOFF_TIMEOUT , UWALOHA_STATE_RX_BACKOFF , UWALOHA_STATE_WRONG_PKT_RX }

enum	UWALOHA_REASON_STATUS { UWALOHA_REASON_DATA_PENDING , UWALOHA_REASON_DATA_RX , UWALOHA_REASON_DATA_TX , UWALOHA_REASON_ACK_TX , UWALOHA_REASON_ACK_RX , UWALOHA_REASON_ACK_TIMEOUT , UWALOHA_REASON_DATA_EMPTY , UWALOHA_REASON_NOT_SET , UWALOHA_REASON_MAX_TX_TRIES , UWALOHA_REASON_START_RX , UWALOHA_REASON_PKT_NOT_FOR_ME , UWALOHA_REASON_WAIT_ACK_PENDING , UWALOHA_REASON_PKT_ERROR , UWALOHA_REASON_BACKOFF_TIMEOUT , UWALOHA_REASON_BACKOFF_PENDING }

enum	UWALOHA_PKT_TYPE { UWALOHA_ACK_PKT = 1 , UWALOHA_DATA_PKT , UWALOHA_DATAMAX_PKT }

enum	UWALOHA_ACK_MODES { UWALOHA_ACK_MODE = 1 , UWALOHA_NO_ACK_MODE }

enum	UWALOHA_TIMER_STATUS { UWALOHA_IDLE = 1 , UWALOHA_RUNNING , UWALOHA_FROZEN , UWALOHA_EXPIRED }

Protected Member Functions
virtual void	recvFromUpperLayers (Packet *p)

virtual void	Mac2PhyStartTx (Packet *p)

virtual void	Phy2MacEndTx (const Packet *p)

virtual void	Phy2MacStartRx (const Packet *p)

virtual void	Phy2MacEndRx (Packet *p)

virtual double	computeTxTime (UWALOHA_PKT_TYPE type)

virtual void	initPkt (Packet *p, UWALOHA_PKT_TYPE pkt_type, int dest_addr=0)

virtual double	getBackoffTime ()

virtual void	txData ()

virtual void	txAck (int dest_addr)

virtual void	stateIdle ()

virtual void	stateRxIdle ()

virtual void	stateTxData ()

virtual void	stateTxAck (int dest_addr)

virtual void	stateWaitAck ()

virtual void	stateRxWaitAck ()

virtual void	stateBackoff ()

virtual void	stateRxBackoff ()

virtual void	stateCheckAckExpired ()

virtual void	stateCheckBackoffExpired ()

virtual void	stateRxData (Packet *p)

virtual void	stateRxAck (Packet *p)

virtual void	exitBackoff ()

virtual void	printStateInfo (double delay=0)

virtual void	initInfo ()

virtual void	refreshState (UWALOHA_STATUS state)

virtual void	refreshReason (UWALOHA_REASON_STATUS reason)

virtual void	incrCurrTxRounds ()

virtual void	resetCurrTxRounds ()

virtual void	updateRTT (double rtt)

virtual double	getRTT ()

virtual void	updateAckTimeout (double rtt)

virtual void	updateLastDataIdRx (int id)

virtual void	waitForUser ()

int	getPktSeqNum (Packet *p)

void	putPktInQueue (Packet *p)

void	eraseItemFromPktQueue (int seq_num)

void	putAckTimerInMap (int seq_num)

void	eraseItemFrommapAckTimer (int seq_num)

virtual int	getRemainingPkts ()

virtual void	incrUpperDataRx ()

int	getUpLayersDataPktsRx ()

Protected Attributes
int	max_tx_tries

double	wait_constant

double	backoff_tuner

int	max_payload

int	HDR_size

int	ACK_size

double	ACK_timeout

int	buffer_pkts

double	alpha_

int	max_backoff_counter

int	uwaloha_debug

int	last_sent_data_id

bool	print_transitions

bool	has_buffer_queue

double	start_tx_time

double	srtt

double	sumrtt

double	sumrtt2

int	rttsamples

int	curr_tx_rounds

int	last_data_id_rx

int	recv_data_id

Packet *	curr_data_pkt

int	txsn

AckTimer	ack_timer

BackOffTimer	backoff_timer

UWALOHA_REASON_STATUS	last_reason

UWALOHA_STATUS	curr_state

UWALOHA_STATUS	prev_state

UWALOHA_STATUS	prev_prev_state

UWALOHA_ACK_MODES	ack_mode

map< pktSeqNum, Packet * >	mapPacket

map< pktSeqNum, AckTimer >	mapAckTimer

ofstream	fout

Static Protected Attributes
static bool	initialized = false

static const double	prop_speed = 1500.0

static map< UWALOHA_STATUS, string >	status_info

static map< UWALOHA_REASON_STATUS, string >	reason_info

static map< UWALOHA_PKT_TYPE, string >	pkt_type_info

Detailed Description

This is the base class of UWAloha protocol, which is a derived class of MMac.

Member Enumeration Documentation

◆ UWALOHA_ACK_MODES

enum UWAloha::UWALOHA_ACK_MODES

protected

Enumeration class of UWAloha acknowledgement mode. First enumerator is given value 1. This protocol supports both acknowledgement and non-acknowledgement technique. If Acknowledgement is set, it uses Stop-And-Wait ARQ technique.

Enumerator
UWALOHA_ACK_MODE
UWALOHA_NO_ACK_MODE

◆ UWALOHA_PKT_TYPE

enum UWAloha::UWALOHA_PKT_TYPE

protected

Enumeration class of UWAloha packet type. First enumerator is given value

Three kinds of packets are supported by UWAloha protocol.

Enumerator
UWALOHA_ACK_PKT
UWALOHA_DATA_PKT
UWALOHA_DATAMAX_PKT

◆ UWALOHA_REASON_STATUS

enum UWAloha::UWALOHA_REASON_STATUS

protected

Enumeration class which tells the nodes the reason why it is in this state. First enumerator is given value 1.

Enumerator
UWALOHA_REASON_DATA_PENDING
UWALOHA_REASON_DATA_RX
UWALOHA_REASON_DATA_TX
UWALOHA_REASON_ACK_TX
UWALOHA_REASON_ACK_RX
UWALOHA_REASON_ACK_TIMEOUT
UWALOHA_REASON_DATA_EMPTY
UWALOHA_REASON_NOT_SET
UWALOHA_REASON_MAX_TX_TRIES
UWALOHA_REASON_START_RX
UWALOHA_REASON_PKT_NOT_FOR_ME
UWALOHA_REASON_WAIT_ACK_PENDING
UWALOHA_REASON_PKT_ERROR
UWALOHA_REASON_BACKOFF_TIMEOUT
UWALOHA_REASON_BACKOFF_PENDING

◆ UWALOHA_STATUS

enum UWAloha::UWALOHA_STATUS

protected

Enumeration class of UWAloha status. First enumerator is given value 1.

Enumerator
UWALOHA_STATE_IDLE
UWALOHA_STATE_BACKOFF
UWALOHA_STATE_TX_DATA
UWALOHA_STATE_TX_ACK
UWALOHA_STATE_WAIT_ACK
UWALOHA_STATE_DATA_RX
UWALOHA_STATE_ACK_RX
UWALOHA_STATE_NOT_SET
UWALOHA_STATE_CHK_ACK_TIMEOUT
UWALOHA_STATE_RX_IDLE
UWALOHA_STATE_RX_WAIT_ACK
UWALOHA_STATE_CHK_BACKOFF_TIMEOUT
UWALOHA_STATE_RX_BACKOFF
UWALOHA_STATE_WRONG_PKT_RX

◆ UWALOHA_TIMER_STATUS

enum UWAloha::UWALOHA_TIMER_STATUS

protected

Enumeration class of UWAloha timer status. First enumerator is given value

It is employed to know the current status of a timer.

Enumerator
UWALOHA_IDLE
UWALOHA_RUNNING
UWALOHA_FROZEN
UWALOHA_EXPIRED

Constructor & Destructor Documentation

◆ UWAloha()

UWAloha::UWAloha ( )

Constructor of UWAloha Class

References ACK_size, ACK_timeout, alpha_, backoff_tuner, buffer_pkts, has_buffer_queue, HDR_size, max_backoff_counter, max_payload, max_tx_tries, uwaloha_debug, and wait_constant.

Referenced by UWAloha::AckTimer::expire().

◆ ~UWAloha()

UWAloha::~UWAloha ( )

virtual

Destructor of UWAloha Class

Member Function Documentation

◆ command()

int UWAloha::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	number of arguments in argv
argv	array of strings which are the command parameters (Note that argv[0] is the name of the object)

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched succesfully or not

References ack_mode, fout, getUpLayersDataPktsRx(), initialized, initInfo(), mapPacket, print_transitions, UWALOHA_ACK_MODE, and UWALOHA_NO_ACK_MODE.

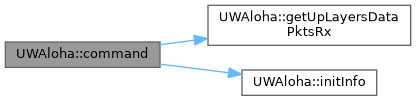

Here is the call graph for this function:

◆ computeTxTime()

double UWAloha::computeTxTime ( UWALOHA_PKT_TYPE type )

protectedvirtual

Compute the transmission time of a packet. It uses a cross-layer message to calculate the duration of that packet.

Parameters

type	is a UWALOHA_PKT_TYPE

Returns: tranmission time of a packet which is a double data type.

References ACK_size, HDR_size, mapPacket, max_payload, UWALOHA_ACK_PKT, and UWALOHA_DATA_PKT.

◆ eraseItemFrommapAckTimer()

void UWAloha::eraseItemFrommapAckTimer ( int seq_num )

inlineprotected

Erase an item from acknowledgement stored container.

Parameters

seq_num which is an integer data type.

References mapAckTimer.

Referenced by stateRxAck().

◆ eraseItemFromPktQueue()

void UWAloha::eraseItemFromPktQueue ( int seq_num )

inlineprotected

It erases the packet from the container.

Parameters

seq_num which is an integer data type.

References mapPacket.

Referenced by stateRxAck(), stateTxData(), and txData().

◆ exitBackoff()

void UWAloha::exitBackoff ( )

protectedvirtual

It stops the backoff timer.

References backoff_timer, and UWAloha::UWAlohaTimer::stop().

Referenced by stateCheckBackoffExpired().

Here is the call graph for this function:

◆ getBackoffTime()

double UWAloha::getBackoffTime ( )

protectedvirtual

This function calculates the backoff duration and return the backoff time.It employs the exponential backoff algorithm.

Returns: backoff duration which is a double data type.

References ACK_timeout, backoff_timer, backoff_tuner, UWAloha::UWAlohaTimer::getCounter(), UWAloha::UWAlohaTimer::incrCounter(), max_backoff_counter, and uwaloha_debug.

Referenced by stateBackoff().

Here is the call graph for this function:

◆ getPktSeqNum()

int UWAloha::getPktSeqNum ( Packet * p )

inlineprotected

This method is used to get the sequence number from a packet.

Parameters

packet pointer

Returns: it returns sequence number which is an integer data type.

Referenced by putPktInQueue(), stateRxAck(), stateTxData(), and txData().

◆ getRemainingPkts()

virtual int UWAloha::getRemainingPkts ( )

inlineprotectedvirtual

Number of packets which MAC layer receives form upper layer(s) but were not transmitted.

Returns: an integer value.

References mapPacket.

◆ getRTT()

virtual double UWAloha::getRTT ( )

inlineprotectedvirtual

This method is used to get the average RTT over all the receives RTT.

Returns: average RTT time which is a double data type.

References rttsamples, and sumrtt.

◆ getUpLayersDataPktsRx()

int UWAloha::getUpLayersDataPktsRx ( )

inlineprotected

Referenced by command().

◆ incrCurrTxRounds()

virtual void UWAloha::incrCurrTxRounds ( )

inlineprotectedvirtual

Increments the current transmission round of a packet. It keeps track of the number of retransmition of a packet.

References curr_tx_rounds.

Referenced by stateTxData(), and txData().

◆ incrUpperDataRx()

virtual void UWAloha::incrUpperDataRx ( )

inlineprotectedvirtual

Increment the number of Data packet receive for the upper layer.

Referenced by recvFromUpperLayers().

◆ initInfo()

void UWAloha::initInfo ( )

protectedvirtual

This function is used to initialize the UWAloha protocol.

References initialized, pkt_type_info, print_transitions, reason_info, status_info, UWALOHA_ACK_PKT, UWALOHA_DATA_PKT, UWALOHA_DATAMAX_PKT, UWALOHA_REASON_ACK_RX, UWALOHA_REASON_ACK_TIMEOUT, UWALOHA_REASON_ACK_TX, UWALOHA_REASON_BACKOFF_PENDING, UWALOHA_REASON_BACKOFF_TIMEOUT, UWALOHA_REASON_DATA_EMPTY, UWALOHA_REASON_DATA_PENDING, UWALOHA_REASON_DATA_RX, UWALOHA_REASON_DATA_TX, UWALOHA_REASON_MAX_TX_TRIES, UWALOHA_REASON_PKT_ERROR, UWALOHA_REASON_PKT_NOT_FOR_ME, UWALOHA_REASON_START_RX, UWALOHA_REASON_WAIT_ACK_PENDING, UWALOHA_STATE_ACK_RX, UWALOHA_STATE_BACKOFF, UWALOHA_STATE_CHK_ACK_TIMEOUT, UWALOHA_STATE_CHK_BACKOFF_TIMEOUT, UWALOHA_STATE_DATA_RX, UWALOHA_STATE_IDLE, UWALOHA_STATE_RX_BACKOFF, UWALOHA_STATE_RX_IDLE, UWALOHA_STATE_RX_WAIT_ACK, UWALOHA_STATE_TX_ACK, UWALOHA_STATE_TX_DATA, UWALOHA_STATE_WAIT_ACK, and UWALOHA_STATE_WRONG_PKT_RX.

Referenced by command().

◆ initPkt()

void UWAloha::initPkt	(	Packet *	p,
		UWALOHA_PKT_TYPE	pkt_type,
		int	dest_addr = `0`
	)

protectedvirtual

This method, initialize the packet. If the packet is received from the upper layer, it adds the header (if any). In case of UWAloha with ARQ technique, it set the fields of ACK packet.

Parameters

Packet	pointer P. The packet can be Data packet or ACK packet.
pkt_type	is an UWALOHA_PKT_TYPE. Packet can be either Data packet or ACK packet.
dest_addr	is a integer data type. It is initialized as 0.

References ACK_size, HDR_size, PT_MMAC_ACK, recv_data_id, UWALOHA_ACK_PKT, and UWALOHA_DATA_PKT.

Referenced by recvFromUpperLayers(), and txAck().

◆ Mac2PhyStartTx()

void UWAloha::Mac2PhyStartTx ( Packet * p )

protectedvirtual

It informs that a packet transmission started.

Parameters

Packet pointer

References uwaloha_debug.

Referenced by txAck(), and txData().

◆ Phy2MacEndRx()

void UWAloha::Phy2MacEndRx ( Packet * p )

protectedvirtual

PHY layer informs the MAC layer that the reception of the packet is over.

Parameters

Packet pointer.

References curr_state, prop_speed, PT_MMAC_ACK, refreshReason(), stateRxAck(), stateRxData(), status_info, uwaloha_debug, UWALOHA_REASON_ACK_RX, UWALOHA_REASON_DATA_RX, UWALOHA_REASON_PKT_ERROR, UWALOHA_REASON_PKT_NOT_FOR_ME, and UWALOHA_STATE_WAIT_ACK.

Here is the call graph for this function:

◆ Phy2MacEndTx()

void UWAloha::Phy2MacEndTx ( const Packet * p )

protectedvirtual

It infroms that a packet transmission end.

Parameters

Packet pointer

References ack_mode, curr_state, refreshReason(), stateIdle(), stateWaitAck(), status_info, UWALOHA_ACK_MODE, uwaloha_debug, UWALOHA_REASON_ACK_TX, UWALOHA_REASON_DATA_TX, UWALOHA_STATE_IDLE, UWALOHA_STATE_TX_ACK, UWALOHA_STATE_TX_DATA, and UWALOHA_STATE_WAIT_ACK.

Here is the call graph for this function:

◆ Phy2MacStartRx()

void UWAloha::Phy2MacStartRx ( const Packet * p )

protectedvirtual

PHY layer informs the MAC layer that it is receiving a packet. @Param Packet pointer (constant)

References uwaloha_debug.

◆ printStateInfo()

void UWAloha::printStateInfo ( double delay = 0 )

protectedvirtual

This methods print the state information of the nodes.

Parameters

delay is a double data type.

References curr_state, fout, last_reason, prev_state, reason_info, status_info, uwaloha_debug, and UWALOHA_STATE_BACKOFF.

Referenced by stateBackoff(), stateCheckAckExpired(), stateCheckBackoffExpired(), stateIdle(), stateRxBackoff(), stateRxIdle(), stateRxWaitAck(), stateTxAck(), stateTxData(), and stateWaitAck().

◆ putAckTimerInMap()

void UWAloha::putAckTimerInMap ( int seq_num )

inlineprotected

Put acknowledgement timer in the container.

Parameters

seq_num which is an integer data type.

References ack_timer, and mapAckTimer.

Referenced by stateTxData().

◆ putPktInQueue()

void UWAloha::putPktInQueue ( Packet * p )

inlineprotected

A node receives packet(s) from upper layer and store them in the container.

Parameters

packet pointer

References getPktSeqNum(), and mapPacket.

Referenced by recvFromUpperLayers().

Here is the call graph for this function:

◆ recvFromUpperLayers()

void UWAloha::recvFromUpperLayers ( Packet * p )

protectedvirtual

This function receives the packet from upper layer and save it in the queue.

Parameters

Packet pointer

References buffer_pkts, curr_state, has_buffer_queue, incrUpperDataRx(), initPkt(), mapPacket, putPktInQueue(), refreshReason(), stateTxData(), UWALOHA_DATA_PKT, UWALOHA_REASON_DATA_PENDING, and UWALOHA_STATE_IDLE.

Here is the call graph for this function:

◆ refreshReason()

virtual void UWAloha::refreshReason ( UWALOHA_REASON_STATUS reason )

inlineprotectedvirtual

To know the reason why a node is in this current state.

Parameters

reason is an UWALOHA_REASON_STATUS type.

References last_reason.

Referenced by Phy2MacEndRx(), Phy2MacEndTx(), recvFromUpperLayers(), stateCheckAckExpired(), stateCheckBackoffExpired(), stateRxAck(), stateRxData(), and stateTxData().

◆ refreshState()

virtual void UWAloha::refreshState ( UWALOHA_STATUS state )

inlineprotectedvirtual

Refreshes the states of the node. The node save the information of three states, they are: previous to previous state, previous state and current state of the node.

Parameters

state which is an UWALOHA_STATUS type.

References curr_state, prev_prev_state, and prev_state.

Referenced by stateBackoff(), stateCheckAckExpired(), stateCheckBackoffExpired(), stateIdle(), stateRxAck(), stateRxBackoff(), stateRxData(), stateRxIdle(), stateRxWaitAck(), stateTxAck(), stateTxData(), and stateWaitAck().

◆ resetCurrTxRounds()

virtual void UWAloha::resetCurrTxRounds ( )

inlineprotectedvirtual

If a node is going to transmit a new packet, it resets the tx counter.

References curr_tx_rounds.

Referenced by stateTxData().

◆ stateBackoff()

void UWAloha::stateBackoff ( )

protectedvirtual

If ACK packet is not received within the acknowledgement expire time.

References backoff_timer, getBackoffTime(), UWAloha::UWAlohaTimer::getDuration(), UWAloha::UWAlohaTimer::isFrozen(), print_transitions, printStateInfo(), refreshState(), UWAloha::UWAlohaTimer::schedule(), UWAloha::UWAlohaTimer::unFreeze(), uwaloha_debug, and UWALOHA_STATE_BACKOFF.

Referenced by stateCheckAckExpired(), and stateCheckBackoffExpired().

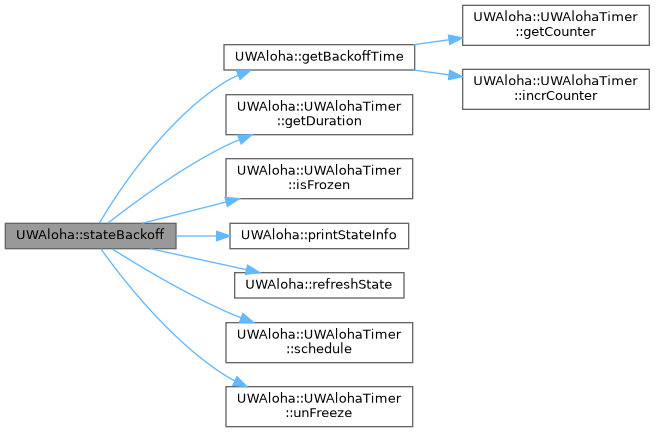

Here is the call graph for this function:

◆ stateCheckAckExpired()

void UWAloha::stateCheckAckExpired ( )

protectedvirtual

It checks whether the ack timer is already expired while it was busy with other activities.

References curr_state, mapAckTimer, print_transitions, printStateInfo(), refreshReason(), refreshState(), stateBackoff(), stateIdle(), status_info, uwaloha_debug, UWALOHA_REASON_ACK_TIMEOUT, UWALOHA_REASON_WAIT_ACK_PENDING, UWALOHA_STATE_CHK_ACK_TIMEOUT, and UWALOHA_STATE_WAIT_ACK.

Referenced by stateTxData().

Here is the call graph for this function:

◆ stateCheckBackoffExpired()

void UWAloha::stateCheckBackoffExpired ( )

protectedvirtual

It checks whether the backoff timer is already expired while it was busy with other activities.

References backoff_timer, curr_state, exitBackoff(), UWAloha::UWAlohaTimer::isActive(), UWAloha::UWAlohaTimer::isExpired(), print_transitions, printStateInfo(), refreshReason(), refreshState(), stateBackoff(), stateIdle(), status_info, uwaloha_debug, UWALOHA_REASON_BACKOFF_PENDING, UWALOHA_REASON_BACKOFF_TIMEOUT, and UWALOHA_STATE_CHK_BACKOFF_TIMEOUT.

Here is the call graph for this function:

◆ stateIdle()

void UWAloha::stateIdle ( )

protectedvirtual

Node is in Idle state. It only changes its state if it has packet(s) to transmit or it receives a packet.

References backoff_timer, mapAckTimer, mapPacket, print_transitions, printStateInfo(), refreshState(), stateTxData(), UWAloha::UWAlohaTimer::stop(), uwaloha_debug, and UWALOHA_STATE_IDLE.

Referenced by Phy2MacEndTx(), stateCheckAckExpired(), stateCheckBackoffExpired(), stateRxAck(), stateRxData(), and stateTxData().

Here is the call graph for this function:

◆ stateRxAck()

void UWAloha::stateRxAck ( Packet * p )

protectedvirtual

The node comes to this state if it receives an ACK packet. After receiving an ACK packet it changes it states according to the previously stored status information.

References eraseItemFrommapAckTimer(), eraseItemFromPktQueue(), getPktSeqNum(), mapAckTimer, refreshReason(), refreshState(), start_tx_time, stateIdle(), updateAckTimeout(), uwaloha_debug, UWALOHA_REASON_ACK_RX, and UWALOHA_STATE_ACK_RX.

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

◆ stateRxBackoff()

void UWAloha::stateRxBackoff ( )

protectedvirtual

If a node start receiving a packet when it is in backoff state. The node first freeze (or another word, hold) the backoff timer and start receiving the packet.

References backoff_timer, UWAloha::UWAlohaTimer::freeze(), print_transitions, printStateInfo(), refreshState(), and UWALOHA_STATE_RX_BACKOFF.

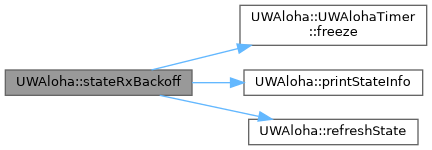

Here is the call graph for this function:

◆ stateRxData()

void UWAloha::stateRxData ( Packet * p )

protectedvirtual

It process the packet which is received. After receiving a packet it changes it states according to the previously stored status information.

Parameters

<i>Data</i> packet pointer

References ack_mode, ack_timer, HDR_size, recv_data_id, refreshReason(), refreshState(), stateIdle(), stateTxAck(), UWAloha::UWAlohaTimer::stop(), UWALOHA_ACK_MODE, uwaloha_debug, UWALOHA_REASON_DATA_RX, and UWALOHA_STATE_DATA_RX.

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

◆ stateRxIdle()

void UWAloha::stateRxIdle ( )

protectedvirtual

If a node start receiving a packet in Idle state.

References print_transitions, printStateInfo(), refreshState(), and UWALOHA_STATE_RX_IDLE.

Here is the call graph for this function:

◆ stateRxWaitAck()

void UWAloha::stateRxWaitAck ( )

protectedvirtual

If a node receives any packet while it was waiting for ACK packet, it moves to this state. The packet it is receiving can be a Data packet from another node or ACK packet.

References print_transitions, printStateInfo(), refreshState(), and UWALOHA_STATE_RX_WAIT_ACK.

Here is the call graph for this function:

◆ stateTxAck()

void UWAloha::stateTxAck ( int dest_addr )

protectedvirtual

If the protocl uses ARQ technique, in that case, after receiving a Data packet the node sends an ACK packet.

References print_transitions, printStateInfo(), refreshState(), txAck(), uwaloha_debug, and UWALOHA_STATE_TX_ACK.

Referenced by stateRxData().

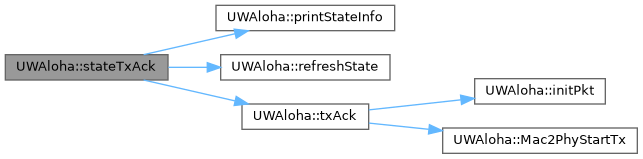

Here is the call graph for this function:

◆ stateTxData()

void UWAloha::stateTxData ( )

protectedvirtual

If a node has packet to transmits. In such case, it moves from Idle state to data transmits state.

References backoff_timer, curr_data_pkt, curr_tx_rounds, eraseItemFromPktQueue(), getPktSeqNum(), UWAloha::UWAlohaTimer::incrCounter(), incrCurrTxRounds(), last_sent_data_id, mapAckTimer, mapPacket, max_tx_tries, print_transitions, printStateInfo(), putAckTimerInMap(), refreshReason(), refreshState(), UWAloha::UWAlohaTimer::resetCounter(), resetCurrTxRounds(), start_tx_time, stateCheckAckExpired(), stateIdle(), txData(), uwaloha_debug, UWALOHA_REASON_MAX_TX_TRIES, and UWALOHA_STATE_TX_DATA.

Referenced by recvFromUpperLayers(), and stateIdle().

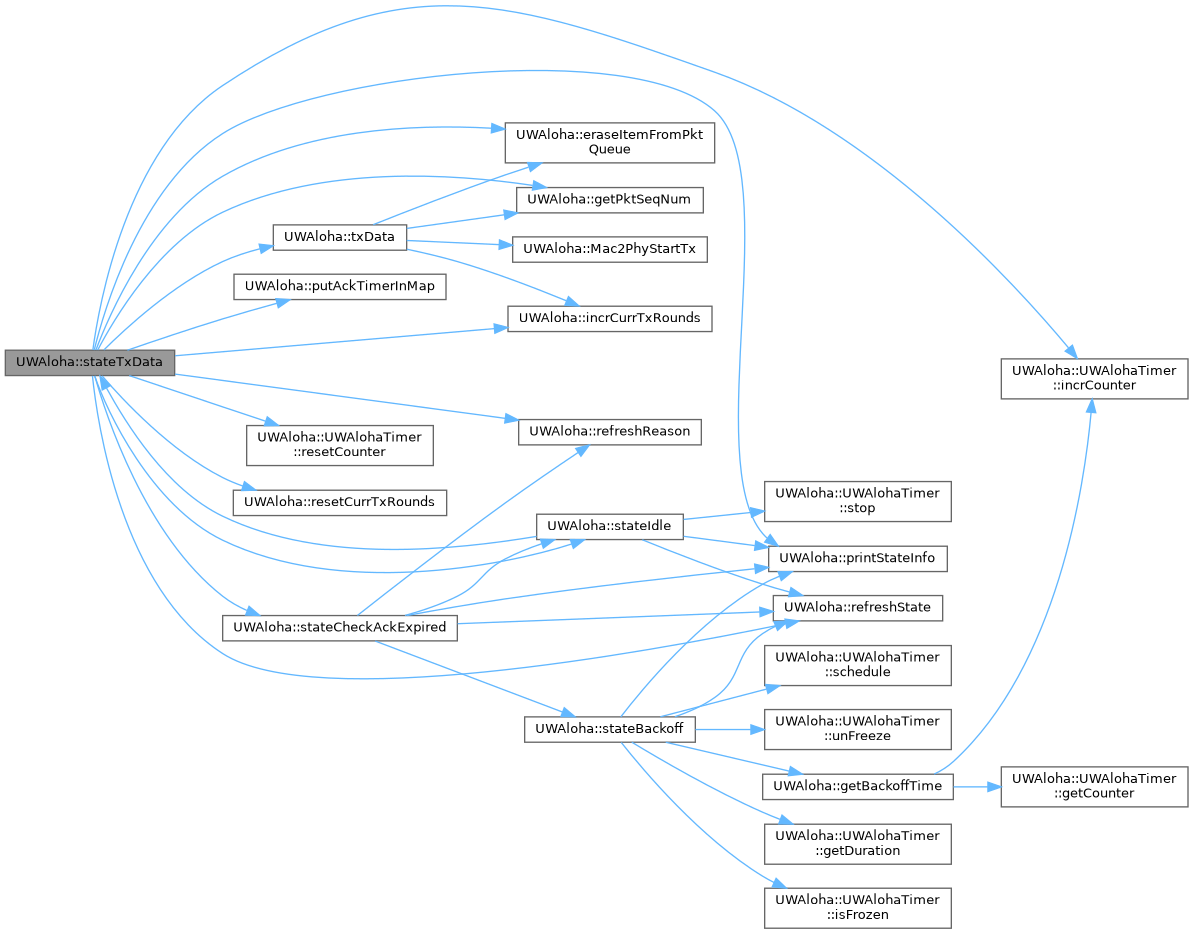

Here is the call graph for this function:

◆ stateWaitAck()

void UWAloha::stateWaitAck ( )

protectedvirtual

After transmitting a Data packet, a node waits for the ACK packet.

References ACK_timeout, mapAckTimer, print_transitions, printStateInfo(), refreshState(), uwaloha_debug, UWALOHA_STATE_WAIT_ACK, and wait_constant.

Referenced by Phy2MacEndTx().

Here is the call graph for this function:

◆ txAck()

void UWAloha::txAck ( int dest_addr )

protectedvirtual

This methods transmits ACK packet from MAC layer to PHY layer.

Parameters

dest_addr which is an integer data type.

References initPkt(), Mac2PhyStartTx(), and UWALOHA_ACK_PKT.

Referenced by stateTxAck().

Here is the call graph for this function:

◆ txData()

void UWAloha::txData ( )

protectedvirtual

This method transmits Data packets from MAC layer to PHY layer.

References ack_mode, curr_data_pkt, eraseItemFromPktQueue(), getPktSeqNum(), incrCurrTxRounds(), Mac2PhyStartTx(), and UWALOHA_NO_ACK_MODE.

Referenced by stateTxData().

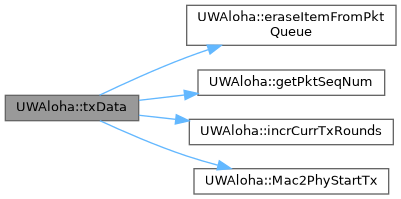

Here is the call graph for this function:

◆ updateAckTimeout()

void UWAloha::updateAckTimeout ( double rtt )

protectedvirtual

Like updateRTT() function.

References ACK_timeout, updateRTT(), and uwaloha_debug.

Referenced by stateRxAck().

Here is the call graph for this function:

◆ updateLastDataIdRx()

virtual void UWAloha::updateLastDataIdRx ( int id )

inlineprotectedvirtual

It updates the sequence number of the last data packet rx.

Parameters

id	is an integer data type.

References last_data_id_rx.

◆ updateRTT()

void UWAloha::updateRTT ( double rtt )

protectedvirtual

Update the Round Trip Time (RTT) which is necessary to compute the acknowledgement duration as well as backoff duration.

Parameters

rtt	is a double data type.

References ACK_timeout, alpha_, rttsamples, srtt, sumrtt, and sumrtt2.

Referenced by updateAckTimeout().

◆ waitForUser()

void UWAloha::waitForUser ( )

protectedvirtual

Member Data Documentation

◆ ack_mode

UWALOHA_ACK_MODES UWAloha::ack_mode

protected

Enum variable. It tells the node whether to use ARQ technique or not.

Referenced by command(), Phy2MacEndTx(), stateRxData(), and txData().

◆ ACK_size

int UWAloha::ACK_size

protected

Size of the ACK, if the node uses ARQ technique

Referenced by computeTxTime(), initPkt(), and UWAloha().

◆ ACK_timeout

double UWAloha::ACK_timeout

protected

ACK timeout for the initial packet

Referenced by getBackoffTime(), stateWaitAck(), updateAckTimeout(), updateRTT(), and UWAloha().

◆ ack_timer

AckTimer UWAloha::ack_timer

protected

An object of the AckTimer class

Referenced by putAckTimerInMap(), and stateRxData().

◆ alpha_

double UWAloha::alpha_

protected

This variable is used to tune the RTT

Referenced by updateRTT(), and UWAloha().

◆ backoff_timer

BackOffTimer UWAloha::backoff_timer

protected

An object of the backoff timer class

Referenced by exitBackoff(), getBackoffTime(), stateBackoff(), stateCheckBackoffExpired(), stateIdle(), stateRxBackoff(), and stateTxData().

◆ backoff_tuner

double UWAloha::backoff_tuner

protected

Tunes the backoff duration.

Referenced by getBackoffTime(), and UWAloha().

◆ buffer_pkts

int UWAloha::buffer_pkts

protected

Number of packets a node can store in the container

Referenced by recvFromUpperLayers(), and UWAloha().

◆ curr_data_pkt

Packet* UWAloha::curr_data_pkt

protected

Pointer of the latest selected data packet.

Referenced by stateTxData(), and txData().

◆ curr_state

UWALOHA_STATUS UWAloha::curr_state

protected

Enum variable. It stores the current state of a node

Referenced by Phy2MacEndRx(), Phy2MacEndTx(), printStateInfo(), recvFromUpperLayers(), refreshState(), stateCheckAckExpired(), and stateCheckBackoffExpired().

◆ curr_tx_rounds

int UWAloha::curr_tx_rounds

protected

How many times a packet is transmitted

Referenced by incrCurrTxRounds(), resetCurrTxRounds(), and stateTxData().

◆ fout

ofstream UWAloha::fout

protected

An object of ofstream class

Referenced by command(), and printStateInfo().

◆ has_buffer_queue

bool UWAloha::has_buffer_queue

protected

Whether the node has buffer to store data or not

Referenced by recvFromUpperLayers(), and UWAloha().

◆ HDR_size

int UWAloha::HDR_size

protected

Size of the HDR if any

Referenced by computeTxTime(), initPkt(), stateRxData(), and UWAloha().

◆ initialized

bool UWAloha::initialized = false

staticprotected

It checks whether UWAloha protocol is initialized or not. If FALSE means, not initialized and if TRUE means it is initialized

Referenced by command(), and initInfo().

◆ last_data_id_rx

int UWAloha::last_data_id_rx

protected

The sequence number of last received packet

Referenced by updateLastDataIdRx().

◆ last_reason

UWALOHA_REASON_STATUS UWAloha::last_reason

protected

Enum variable which stores the last reason why a node changes its state

Referenced by printStateInfo(), and refreshReason().

◆ last_sent_data_id

int UWAloha::last_sent_data_id

protected

sequence number of the last sent packet

Referenced by stateTxData().

◆ mapAckTimer

map<pktSeqNum, AckTimer> UWAloha::mapAckTimer

protected

Container where acknowledgement timer(s) is stored

Referenced by eraseItemFrommapAckTimer(), putAckTimerInMap(), stateCheckAckExpired(), stateIdle(), stateRxAck(), stateTxData(), and stateWaitAck().

◆ mapPacket

map<pktSeqNum, Packet *> UWAloha::mapPacket

protected

Container where Data packets are stored

Referenced by command(), computeTxTime(), eraseItemFromPktQueue(), getRemainingPkts(), putPktInQueue(), recvFromUpperLayers(), stateIdle(), and stateTxData().

◆ max_backoff_counter

int UWAloha::max_backoff_counter

protected

Maximum number of backoff it will consider while it increases the backoff exponentially

Referenced by getBackoffTime(), and UWAloha().

◆ max_payload

int UWAloha::max_payload

protected

Maximum number of payload in a packet.

Referenced by computeTxTime(), and UWAloha().

◆ max_tx_tries

int UWAloha::max_tx_tries

protected

Maximum number of transmissions for one packet.

Referenced by stateTxData(), and UWAloha().

◆ pkt_type_info

map< UWAloha::UWALOHA_PKT_TYPE, string > UWAloha::pkt_type_info

staticprotected

Container which stores all the packet type information of UWAloha

Referenced by initInfo().

◆ prev_prev_state

UWALOHA_STATUS UWAloha::prev_prev_state

protected

Enum variable. It stores the previous to previous state of a node

Referenced by refreshState().

◆ prev_state

UWALOHA_STATUS UWAloha::prev_state

protected

Enum variable. It stores the previous state of a node

Referenced by printStateInfo(), and refreshState().

◆ print_transitions

bool UWAloha::print_transitions

protected

Whether to print the state of the nodes

Referenced by command(), initInfo(), stateBackoff(), stateCheckAckExpired(), stateCheckBackoffExpired(), stateIdle(), stateRxBackoff(), stateRxIdle(), stateRxWaitAck(), stateTxAck(), stateTxData(), and stateWaitAck().

◆ prop_speed

const double UWAloha::prop_speed = 1500.0

staticprotected

Speed of the sound signal

Referenced by Phy2MacEndRx().

◆ reason_info

map< UWAloha::UWALOHA_REASON_STATUS, string > UWAloha::reason_info

staticprotected

Container which stores all the reason information

Referenced by initInfo(), and printStateInfo().

◆ recv_data_id

int UWAloha::recv_data_id

protected

The sequence number of the packet which is received

Referenced by initPkt(), and stateRxData().

◆ rttsamples

int UWAloha::rttsamples

protected

Number of RTT samples

Referenced by getRTT(), and updateRTT().

◆ srtt

double UWAloha::srtt

protected

Smoothed Round Trip Time, calculated as for TCP

Referenced by updateRTT().

◆ start_tx_time

double UWAloha::start_tx_time

protected

Time when a packet start transmitting

Referenced by stateRxAck(), and stateTxData().

◆ status_info

map< UWAloha::UWALOHA_STATUS, string > UWAloha::status_info

staticprotected

Container which stores all the status information

Referenced by initInfo(), Phy2MacEndRx(), Phy2MacEndTx(), printStateInfo(), stateCheckAckExpired(), and stateCheckBackoffExpired().

◆ sumrtt

double UWAloha::sumrtt

protected

Sum of RTT samples

Referenced by getRTT(), and updateRTT().

◆ sumrtt2

double UWAloha::sumrtt2

protected

Sum of (RTT^2)

Referenced by updateRTT().

◆ txsn

int UWAloha::txsn

protected

Sequence number of the packet which is transmitted

◆ uwaloha_debug

int UWAloha::uwaloha_debug

protected

Debuging Flag

Referenced by getBackoffTime(), Mac2PhyStartTx(), Phy2MacEndRx(), Phy2MacEndTx(), Phy2MacStartRx(), printStateInfo(), stateBackoff(), stateCheckAckExpired(), stateCheckBackoffExpired(), stateIdle(), stateRxAck(), stateRxData(), stateTxAck(), stateTxData(), stateWaitAck(), updateAckTimeout(), and UWAloha().

◆ wait_constant

double UWAloha::wait_constant

protected

This fixed time is used to componsate different time variations.

Referenced by stateWaitAck(), and UWAloha().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/data_link/uwaloha/uwaloha.h
DESERT_Framework/DESERT/data_link/uwaloha/uwaloha.cpp

Classes

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ UWALOHA_ACK_MODES

◆ UWALOHA_PKT_TYPE

◆ UWALOHA_REASON_STATUS

◆ UWALOHA_STATUS

◆ UWALOHA_TIMER_STATUS

Constructor & Destructor Documentation

◆ UWAloha()

◆ ~UWAloha()

Member Function Documentation

◆ command()

◆ computeTxTime()

◆ eraseItemFrommapAckTimer()

◆ eraseItemFromPktQueue()

◆ exitBackoff()

◆ getBackoffTime()

◆ getPktSeqNum()

◆ getRemainingPkts()

◆ getRTT()

◆ getUpLayersDataPktsRx()

◆ incrCurrTxRounds()

◆ incrUpperDataRx()

◆ initInfo()

◆ initPkt()

◆ Mac2PhyStartTx()

◆ Phy2MacEndRx()

◆ Phy2MacEndTx()

◆ Phy2MacStartRx()

◆ printStateInfo()

◆ putAckTimerInMap()

◆ putPktInQueue()

◆ recvFromUpperLayers()

◆ refreshReason()

◆ refreshState()

◆ resetCurrTxRounds()

◆ stateBackoff()

◆ stateCheckAckExpired()

◆ stateCheckBackoffExpired()

◆ stateIdle()

◆ stateRxAck()

◆ stateRxBackoff()

◆ stateRxData()

◆ stateRxIdle()

◆ stateRxWaitAck()

◆ stateTxAck()

◆ stateTxData()

◆ stateWaitAck()

◆ txAck()

◆ txData()

◆ updateAckTimeout()

◆ updateLastDataIdRx()

◆ updateRTT()

◆ waitForUser()

Member Data Documentation

◆ ack_mode

◆ ACK_size

◆ ACK_timeout

◆ ack_timer

◆ alpha_

◆ backoff_timer

◆ backoff_tuner

◆ buffer_pkts

◆ curr_data_pkt

◆ curr_state

◆ curr_tx_rounds

◆ fout

◆ has_buffer_queue

◆ HDR_size

◆ initialized

◆ last_data_id_rx

◆ last_reason

◆ last_sent_data_id

◆ mapAckTimer
