#include <sun-ipr-sink.h>

Inheritance diagram for SunIPRoutingSink:

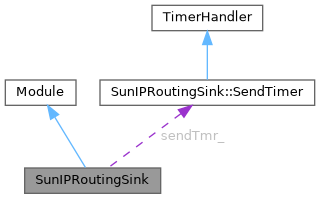

Collaboration diagram for SunIPRoutingSink:

Classes
class	SendTimer

Public Member Functions
	SunIPRoutingSink ()

virtual	~SunIPRoutingSink ()

Protected Member Functions
virtual int	command (int, const char const )

virtual void	recv (Packet *)

virtual int	recvSyncClMsg (ClMessage *)

virtual int	recvAsyncClMsg (ClMessage *)

virtual void	initialize ()

virtual void	sendProbe ()

const double	getDelay (const double &period_) const

virtual void	start ()

virtual void	stop ()

virtual void	transmit ()

virtual void	setProbeTimer (const double &)

virtual const double &	getProbeTimer () const

virtual void	sendBackAck (const Packet *)

virtual void	initPktAck (Packet *)

const long &	getProbeCount () const

const long &	getAckCount () const

virtual void	tracePacket (const Packet *const, const string &position="UNDEF___")

virtual string	createTraceString (const string &, const double &, const int &, const int &, const int &, const int &, const int &, const int &, const int &, const double &, const int &, const int &)

virtual void	writeInTrace (const string &)

virtual void	writePathInTrace (const Packet *)

Static Protected Member Functions
static string	printIP (const nsaddr_t &)

static string	printIP (const ns_addr_t &)

static nsaddr_t	str2addr (const char *)

static const int	getProbePktHeaderSize ()

static const int	getAckHeaderSize ()

Protected Attributes
nsaddr_t	ipAddr_

double	t_probe

int	PoissonTraffic_

double	periodPoissonTraffic_

int	printDebug_

int	numberofnodes_

unsigned int **	arrayofstats_

SendTimer	sendTmr_

bool	trace_

bool	trace_path_

char *	trace_file_name_

char *	trace_file_path_name_

ostringstream	osstream_

ofstream	trace_file_

ofstream	trace_file_path_

char	trace_separator_

Static Protected Attributes
static long	probe_count_ = 0

static long	number_of_ackpkt_ = 0

Private Member Functions
	SunIPRoutingSink (const SunIPRoutingSink &)

Friends
class	SendTimer

Detailed Description

SunIPRoutingSink class is used to represent the routing layer of a sink.

Constructor & Destructor Documentation

◆ SunIPRoutingSink() [1/2]

SunIPRoutingSink::SunIPRoutingSink ( )

Constructor of SunIPRoutingNode class.

References ipAddr_, periodPoissonTraffic_, PoissonTraffic_, printDebug_, t_probe, and trace_separator_.

◆ ~SunIPRoutingSink()

SunIPRoutingSink::~SunIPRoutingSink ( )

virtual

Constructor of SunIPRoutingNode class.

References ipAddr_, printDebug_, and printIP().

Here is the call graph for this function:

◆ SunIPRoutingSink() [2/2]

SunIPRoutingSink::SunIPRoutingSink ( const SunIPRoutingSink & )

private

Copy constructor declared as private. It is not possible to create a new SunIPRoutingSink object passing to its constructor another SunIPRoutingSink object.

Parameters

SunIPRoutingSink& SunIPRoutingSink object.

Member Function Documentation

◆ command()

int SunIPRoutingSink::command	(	int	argc,
		const char const	argv
	)

protectedvirtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

References arrayofstats_, getAckCount(), getAckHeaderSize(), getProbeCount(), getProbePktHeaderSize(), getProbeTimer(), initialize(), ipAddr_, numberofnodes_, sendProbe(), start(), stop(), str2addr(), trace_, trace_file_, trace_file_name_, trace_file_path_, trace_file_path_name_, and trace_path_.

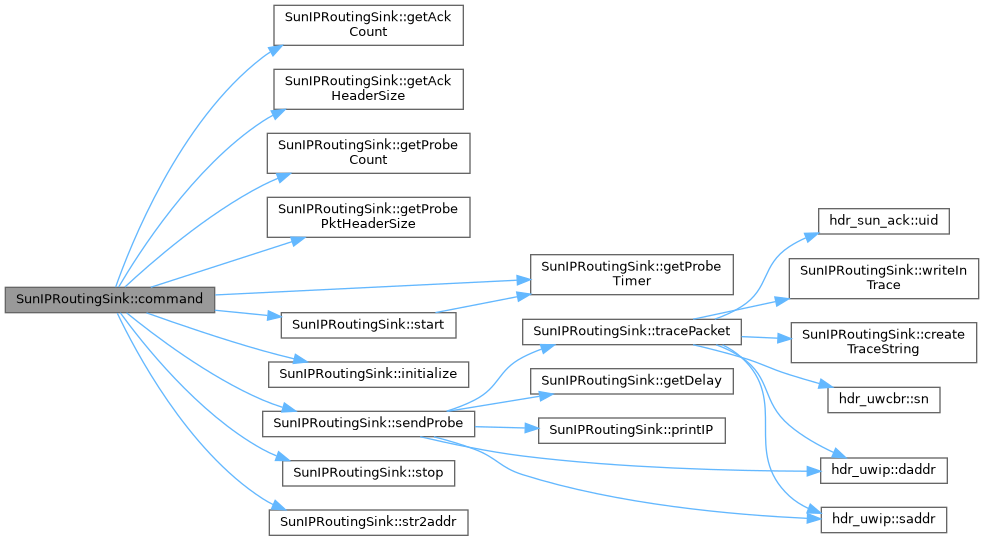

Here is the call graph for this function:

◆ createTraceString()

string SunIPRoutingSink::createTraceString	(	const string &	info_string,
		const double &	simulation_time_,
		const int &	node_id_,
		const int &	pkt_id_,
		const int &	pkt_sn_,
		const int &	pkt_from_,
		const int &	pkt_next_hop,
		const int &	pkt_source_,
		const int &	pkt_destination_,
		const double &	snr_,
		const int &	direction_,
		const int &	pkt_type
	)

protectedvirtual

Function that accept a list of string and create an entry for the trace file.

References osstream_, and trace_separator_.

Referenced by tracePacket().

◆ getAckCount()

const long & SunIPRoutingSink::getAckCount ( ) const

inlineprotected

Returns the number of Ack packets processed by the entire network.

Returns: Number of Ack packets processed by the entire network.

References number_of_ackpkt_.

Referenced by command().

◆ getAckHeaderSize()

static const int SunIPRoutingSink::getAckHeaderSize ( )

inlinestaticprotected

Returns the size in byte of a hdr_sun_ack packet header.

Returns: The size of a hdr_sun_ack packet header.

Referenced by command().

◆ getDelay()

const double SunIPRoutingSink::getDelay ( const double & period_ ) const

inlineprotected

Returns a delay value to use in transmission. The delay can be 0 or poissonian accordingly with the flag PoissonTraffic_.

Returns: Transmission delay.

See also: PoissonTraffic_; periodPoissonTraffic_

References PoissonTraffic_.

Referenced by sendBackAck(), and sendProbe().

◆ getProbeCount()

const long & SunIPRoutingSink::getProbeCount ( ) const

inlineprotected

Returns the number of Probe packets processed by the entire network.

Returns: Number of Probe packets processed by the entire network.

References probe_count_.

Referenced by command().

◆ getProbePktHeaderSize()

static const int SunIPRoutingSink::getProbePktHeaderSize ( )

inlinestaticprotected

Returns the size in byte of a hdr_sun_probe packet header.

Returns: The size of a hdr_sun_probe packet header.

Referenced by command().

◆ getProbeTimer()

const double & SunIPRoutingSink::getProbeTimer ( ) const

protectedvirtual

Returns the current time interval between two consecutive probes.

Returns: The time interval between two consecutive probes.

References t_probe.

Referenced by command(), start(), and transmit().

◆ initialize()

void SunIPRoutingSink::initialize ( )

protectedvirtual

Initializes a SunIPRoutingNode node. It sends to the lower layers a Sync message asking for the IP of the node.

See also: UWIPClMsgReqAddr(int src); sendSyncClMsgDown(ClMessage* m)

References ipAddr_.

Referenced by command().

◆ initPktAck()

void SunIPRoutingSink::initPktAck ( Packet * p )

protectedvirtual

Initializes an ack packet passed as argument with the default values.

Parameters

Packet* Pointer to a packet already allocated to fill with the right values.

References ipAddr_, and PT_SUN_ACK.

Referenced by sendBackAck().

◆ printIP() [1/2]

string SunIPRoutingSink::printIP ( const ns_addr_t & ipt_ )

staticprotected

Return a string with an IP in the classic form "x.x.x.x" converting an ns2 ns_addr_t address.

Parameters

ns_addr_t& ns2 address

Returns: String that contains a printable IP in the classic form "x.x.x.x"

References printIP().

Here is the call graph for this function:

◆ printIP() [2/2]

string SunIPRoutingSink::printIP ( const nsaddr_t & ip_ )

staticprotected

Return a string with an IP in the classic form "x.x.x.x" converting an ns2 nsaddr_t address.

Parameters

nsaddr_t& ns2 address

Returns: String that contains a printable IP in the classic form "x.x.x.x"

Referenced by printIP(), recv(), sendBackAck(), sendProbe(), writePathInTrace(), and ~SunIPRoutingSink().

◆ recv()

void SunIPRoutingSink::recv ( Packet * p )

protectedvirtual

Performs the reception of packets from upper and lower layers.

Parameters

Packet* Pointer to the packet will be received.

References arrayofstats_, hdr_uwip::daddr(), ipAddr_, hdr_sun_data::list_of_hops_length(), numberofnodes_, printDebug_, printIP(), PT_SUN_ACK, PT_SUN_PATH_EST, PT_SUN_PROBE, hdr_uwip::saddr(), sendBackAck(), trace_, trace_path_, tracePacket(), and writePathInTrace().

Here is the call graph for this function:

◆ recvAsyncClMsg()

int SunIPRoutingSink::recvAsyncClMsg ( ClMessage * m )

protectedvirtual

Cross-Layer messages asynchronous interpreter. Used to retrive the IP od the current node from the IP module.

Parameters

ClMessage* an instance of ClMessage that represent the message received and used for the answer.

Returns: 0 if successful.

References UWIPClMsgSendAddr::getAddr(), ipAddr_, and UWIP_CLMSG_SEND_ADDR.

Here is the call graph for this function:

◆ recvSyncClMsg()

int SunIPRoutingSink::recvSyncClMsg ( ClMessage * m )

protectedvirtual

Cross-Layer messages synchronous interpreter.

Parameters

ClMessage* an instance of ClMessage that represent the message received

Returns: 0 if successful.

◆ sendBackAck()

void SunIPRoutingSink::sendBackAck ( const Packet * p )

protectedvirtual

Creates an ack packet and sends it to the previous hop using the information contained in the header of the data packet passed as input parameter. It is an ack to the previous hop, and not to the source of the packet.

Parameters

Packet* Pointer to a Data packet to acknowledge.

See also: SunIPRoutingSink::initPktAck()

References hdr_uwip::daddr(), getDelay(), initPktAck(), ipAddr_, number_of_ackpkt_, periodPoissonTraffic_, printDebug_, printIP(), hdr_uwcbr::sn(), trace_, tracePacket(), and hdr_sun_ack::uid().

Referenced by recv().

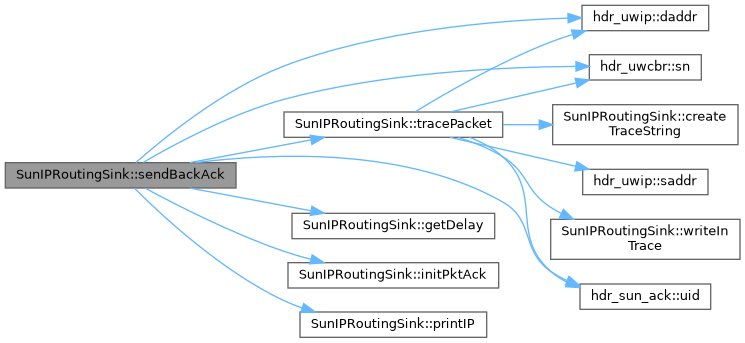

Here is the call graph for this function:

◆ sendProbe()

void SunIPRoutingSink::sendProbe ( )

protectedvirtual

Creates and sends in broadcast a probe message to notify the presence of the sink.

References hdr_uwip::daddr(), getDelay(), ipAddr_, periodPoissonTraffic_, printDebug_, printIP(), probe_count_, PT_SUN_PROBE, hdr_uwip::saddr(), trace_, and tracePacket().

Referenced by command(), and transmit().

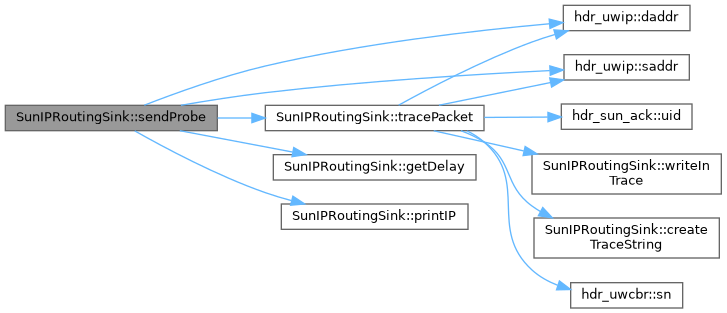

Here is the call graph for this function:

◆ setProbeTimer()

void SunIPRoutingSink::setProbeTimer ( const double & t_ )

protectedvirtual

Sets the probe interval timer.

Parameters

double& Time t in seconds between two consecutive probes.

References t_probe.

◆ start()

void SunIPRoutingSink::start ( )

protectedvirtual

Starts to send Probe packets.

References getProbeTimer(), and sendTmr_.

Referenced by command().

Here is the call graph for this function:

◆ stop()

void SunIPRoutingSink::stop ( )

protectedvirtual

Stops to send Probe packets.

References sendTmr_.

Referenced by command().

◆ str2addr()

nsaddr_t SunIPRoutingSink::str2addr ( const char * str )

staticprotected

Returns a nsaddr_t address from an IP written as a string in the form "x.x.x.x".

Parameters

char* IP in string form

Returns: nsaddr_t that contains the IP converter from the input string

Referenced by command().

◆ tracePacket()

void SunIPRoutingSink::tracePacket	(	const Packet * const	p,
		const string &	position = `"UNDEF___"`
	)

protectedvirtual

Traces a packet.

Parameters

Packet	to be traced.
String	optional for the packet.

References createTraceString(), hdr_uwip::daddr(), ipAddr_, PT_SUN_ACK, hdr_uwip::saddr(), hdr_uwcbr::sn(), trace_, hdr_sun_ack::uid(), and writeInTrace().

Referenced by recv(), sendBackAck(), and sendProbe().

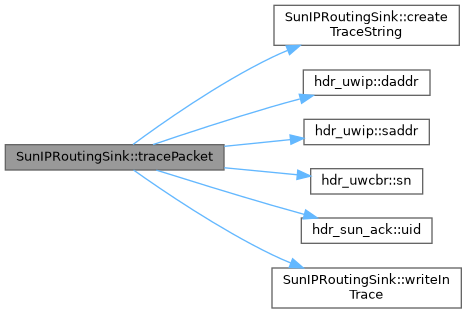

Here is the call graph for this function:

◆ transmit()

void SunIPRoutingSink::transmit ( )

protectedvirtual

Sends a single Probe packet.

References getProbeTimer(), sendProbe(), and sendTmr_.

Here is the call graph for this function:

◆ writeInTrace()

void SunIPRoutingSink::writeInTrace ( const string & string_to_write_ )

protectedvirtual

Opens the trace file, writes the string passed as input and closes the file.

Parameters

String to write in the trace file.

References trace_file_, and trace_file_name_.

Referenced by tracePacket().

◆ writePathInTrace()

void SunIPRoutingSink::writePathInTrace ( const Packet * p )

protectedvirtual

Writes in the Path Trace file the path contained in the Packet

Parameters

Packet to analyze.

References hdr_uwip::daddr(), hdr_sun_data::list_of_hops(), hdr_sun_data::list_of_hops_length(), osstream_, printIP(), hdr_uwip::saddr(), trace_file_path_, and trace_file_path_name_.

Referenced by recv().

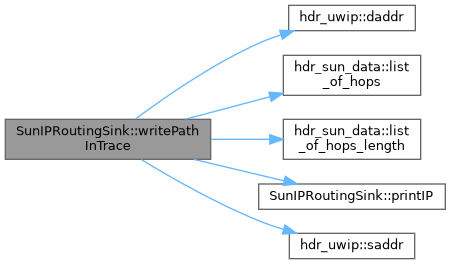

Here is the call graph for this function:

Friends And Related Symbol Documentation

◆ SendTimer

friend class SendTimer

friend

Member Data Documentation

◆ arrayofstats_

unsigned int** SunIPRoutingSink::arrayofstats_

protected

Structure that contains the number of data packets received by the the sink, for different nodes and for different values of hop count. It is used for statistics purposes.

Referenced by command(), and recv().

◆ ipAddr_

nsaddr_t SunIPRoutingSink::ipAddr_

protected

IP of the current node.

Referenced by command(), initialize(), initPktAck(), recv(), recvAsyncClMsg(), sendBackAck(), sendProbe(), SunIPRoutingSink(), tracePacket(), and ~SunIPRoutingSink().

◆ number_of_ackpkt_

long SunIPRoutingSink::number_of_ackpkt_ = 0

staticprotected

Comulative number of Ack packets processed by SunIPRoutingNode objects.

Referenced by getAckCount(), and sendBackAck().

◆ numberofnodes_

int SunIPRoutingSink::numberofnodes_

protected

Number of nodes in the network, used for statistic purposes.

Referenced by command(), and recv().

◆ osstream_

ostringstream SunIPRoutingSink::osstream_

protected

Used to convert to string.

Referenced by createTraceString(), and writePathInTrace().

◆ periodPoissonTraffic_

double SunIPRoutingSink::periodPoissonTraffic_

protected

Period of the Poisson traffic.

Referenced by sendBackAck(), sendProbe(), and SunIPRoutingSink().

◆ PoissonTraffic_

int SunIPRoutingSink::PoissonTraffic_

protected

Enable (1) or disable (0) the Poisson traffic for SUN packets.

Referenced by getDelay(), and SunIPRoutingSink().

◆ printDebug_

int SunIPRoutingSink::printDebug_

protected

Flag to enable or disable dirrefent levels of debug.

Referenced by recv(), sendBackAck(), sendProbe(), SunIPRoutingSink(), and ~SunIPRoutingSink().

◆ probe_count_

long SunIPRoutingSink::probe_count_ = 0

staticprotected

Comulative number of probes sent by SunIPRoutingSink objects.

Referenced by getProbeCount(), and sendProbe().

◆ sendTmr_

SendTimer SunIPRoutingSink::sendTmr_

protected

SendTimer object.

Referenced by start(), stop(), and transmit().

◆ t_probe

double SunIPRoutingSink::t_probe

protected

Period of the probing.

Referenced by getProbeTimer(), setProbeTimer(), and SunIPRoutingSink().

◆ trace_

bool SunIPRoutingSink::trace_

protected

Flag used to enable or disable the trace file for nodes,

Referenced by command(), recv(), sendBackAck(), sendProbe(), and tracePacket().

◆ trace_file_

ofstream SunIPRoutingSink::trace_file_

protected

Ofstream used to write the trace file in the disk.

Referenced by command(), and writeInTrace().

◆ trace_file_name_

char* SunIPRoutingSink::trace_file_name_

protected

Name of the trace file writter for the current node.

Referenced by command(), and writeInTrace().

◆ trace_file_path_

ofstream SunIPRoutingSink::trace_file_path_

protected

Ofstream used to write the path trace file in the disk.

Referenced by command(), and writePathInTrace().

◆ trace_file_path_name_

char* SunIPRoutingSink::trace_file_path_name_

protected

Name of the trace file that contains the list of paths of the data packets received.

Referenced by command(), and writePathInTrace().

◆ trace_path_

bool SunIPRoutingSink::trace_path_

protected

Flag used to enable or disable the path trace file for nodes,

Referenced by command(), and recv().

◆ trace_separator_

char SunIPRoutingSink::trace_separator_

protected

Used as separator among elements in an entr of the tracefile.

Referenced by createTraceString(), and SunIPRoutingSink().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/network/uwsun/sun-ipr-sink.h
DESERT_Framework/DESERT/network/uwsun/sun-ipr-sink.cpp

Classes

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

◆ SunIPRoutingSink() [1/2]

◆ ~SunIPRoutingSink()

◆ SunIPRoutingSink() [2/2]

Member Function Documentation

◆ command()

◆ createTraceString()

◆ getAckCount()

◆ getAckHeaderSize()

◆ getDelay()

◆ getProbeCount()

◆ getProbePktHeaderSize()

◆ getProbeTimer()

◆ initialize()

◆ initPktAck()

◆ printIP() [1/2]

◆ printIP() [2/2]

◆ recv()

◆ recvAsyncClMsg()

◆ recvSyncClMsg()

◆ sendBackAck()

◆ sendProbe()

◆ setProbeTimer()

◆ start()

◆ stop()

◆ str2addr()

◆ tracePacket()

◆ transmit()

◆ writeInTrace()

◆ writePathInTrace()

Friends And Related Symbol Documentation

◆ SendTimer

Member Data Documentation

◆ arrayofstats_

◆ ipAddr_

◆ number_of_ackpkt_

◆ numberofnodes_

◆ osstream_

◆ periodPoissonTraffic_

◆ PoissonTraffic_

◆ printDebug_

◆ probe_count_

◆ sendTmr_

◆ t_probe

◆ trace_

◆ trace_file_

◆ trace_file_name_

◆ trace_file_path_

◆ trace_file_path_name_

◆ trace_path_

◆ trace_separator_
