#include <uwflooding-sec.h>

Inheritance diagram for NeighborReputationHandler:

Collaboration diagram for NeighborReputationHandler:

Public Member Functions
	NeighborReputationHandler (uint8_t neigh_addr, UwFloodingSec *m, double alpha_val, int dbg)

virtual	~NeighborReputationHandler ()

bool	addUnconfirmedPkt (int uid, double expire_time)

bool	checkUnconfirmedPkt (int uid)

void	updateChannelMetrics (double val_snr, double last_noise_val)

void	updateInstantNoise (double inst_noise_val)

Protected Member Functions
bool	getNextPacket (int &uid, double &exp_time) const

void	removeOldPackets ()

virtual void	expire (Event *e)

Protected Attributes
UwFloodingSec *uint8_t	neighbor_addr

std::map< int, double >	unconfirmed_pkts

bool	is_running

int	waiting_uid

double	avg_snr

double	alpha

bool	is_first_pkt

double	last_noise

double	inst_noise

int	debug

Detailed Description

This class defines the timer used to check the packet forwarding by the neighbor and handle reputation

Constructor & Destructor Documentation

◆ NeighborReputationHandler()

NeighborReputationHandler::NeighborReputationHandler	(	uint8_t	neigh_addr,
		UwFloodingSec *	m,
		double	alpha_val,
		int	dbg
	)

Class constructor

Parameters

neigh_addr	address of the neighbor
m	pointer to the UwFloding module
alpha_val	paramer to be used to combine new and old snr values
dbg	debug variable

◆ ~NeighborReputationHandler()

NeighborReputationHandler::~NeighborReputationHandler ( )

virtual

Class destructor

Member Function Documentation

◆ addUnconfirmedPkt()

bool NeighborReputationHandler::addUnconfirmedPkt	(	int	uid,
		double	expire_time
	)

Add in the map the unconfirmed packets with the corresponidg timeout

Parameters

uid	unique id of the analyzed packet
expire_time	expire time for the forwarding of neighbor

Returns: true if the packet is correctly inserted, false oterwhise

References debug, UwFloodingSec::ipAddr_, is_running, neighbor_addr, unconfirmed_pkts, and waiting_uid.

◆ checkUnconfirmedPkt()

bool NeighborReputationHandler::checkUnconfirmedPkt ( int uid )

Check if the packet with the given uid is an unconfirmed one and set it as confirmed

Parameters

uid	unique id if the analyzed packet

Returns: true if the packet is present, false otherwise

References avg_snr, debug, getNextPacket(), inst_noise, is_running, last_noise, neighbor_addr, unconfirmed_pkts, and waiting_uid.

Here is the call graph for this function:

◆ expire()

void NeighborReputationHandler::expire ( Event * e )

protectedvirtual

Method called when the timer expire

Parameters

Event* pointer to an object of type Event

References avg_snr, debug, getNextPacket(), inst_noise, UwFloodingSec::ipAddr_, is_running, last_noise, neighbor_addr, removeOldPackets(), unconfirmed_pkts, and waiting_uid.

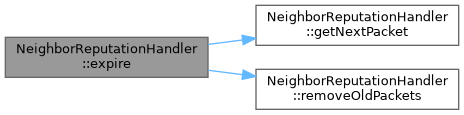

Here is the call graph for this function:

◆ getNextPacket()

bool NeighborReputationHandler::getNextPacket	(	int &	uid,
		double &	exp_time
	)		const

protected

Returns as reference the uid of the next packet that id going to expire. Returns false if there are no packets in the map.

Parameters

uid	unique id of the next packet that is going to expire.
exp_time	expire time of the next packet that is going to expire.

Returns: false if there is no packets in the map, true otherwise.

References unconfirmed_pkts.

Referenced by checkUnconfirmedPkt(), and expire().

◆ removeOldPackets()

void NeighborReputationHandler::removeOldPackets ( )

protected

Removes packet with an old expire time.

References avg_snr, debug, inst_noise, UwFloodingSec::ipAddr_, last_noise, neighbor_addr, and unconfirmed_pkts.

Referenced by expire().

◆ updateChannelMetrics()

void NeighborReputationHandler::updateChannelMetrics	(	double	val_snr,
		double	last_noise_val
	)

Update average SNR

Parameters

val_snr	new SNR value
last_noise_val	value of the noise for the last received packet

References alpha, avg_snr, debug, inst_noise, is_first_pkt, last_noise, and neighbor_addr.

◆ updateInstantNoise()

void NeighborReputationHandler::updateInstantNoise ( double inst_noise_val )

Update the value of the instantaneous noise

Parameters

inst_noise_val value of the instantaneous noise

References debug, inst_noise, UwFloodingSec::ipAddr_, last_noise, and neighbor_addr.

Member Data Documentation

◆ alpha

double NeighborReputationHandler::alpha

protected

weight for the new SNR value.

Referenced by updateChannelMetrics().

◆ avg_snr

double NeighborReputationHandler::avg_snr

protected

Uid of the packet that should be forwarded. Average SNR of the last received packets.

Referenced by checkUnconfirmedPkt(), expire(), removeOldPackets(), and updateChannelMetrics().

◆ debug

int NeighborReputationHandler::debug

protected

Referenced by addUnconfirmedPkt(), checkUnconfirmedPkt(), expire(), removeOldPackets(), updateChannelMetrics(), and updateInstantNoise().

◆ inst_noise

double NeighborReputationHandler::inst_noise

protected

Instantaneous noise level.

Referenced by checkUnconfirmedPkt(), expire(), removeOldPackets(), updateChannelMetrics(), and updateInstantNoise().

◆ is_first_pkt

bool NeighborReputationHandler::is_first_pkt

protected

Referenced by updateChannelMetrics().

◆ is_running

bool NeighborReputationHandler::is_running

protected

True if a timer has been already scheduled and not expired yet.

Referenced by addUnconfirmedPkt(), checkUnconfirmedPkt(), and expire().

◆ last_noise

double NeighborReputationHandler::last_noise

protected

Boolean variable to check if the packet is the first received one or not. Used to correctly averaged snr. Noise power of the last correctly received packet.

Referenced by checkUnconfirmedPkt(), expire(), removeOldPackets(), updateChannelMetrics(), and updateInstantNoise().

◆ neighbor_addr

UwFloodingSec* uint8_t NeighborReputationHandler::neighbor_addr

protected

< Pointer to the uwflooding module. Address of the considered neighbor.

Referenced by addUnconfirmedPkt(), checkUnconfirmedPkt(), expire(), removeOldPackets(), updateChannelMetrics(), and updateInstantNoise().

◆ unconfirmed_pkts

std::map<int, double> NeighborReputationHandler::unconfirmed_pkts

protected

Map with the uid of the unconfirmed packets, with the corresponding forwarding timeout.

Referenced by addUnconfirmedPkt(), checkUnconfirmedPkt(), expire(), getNextPacket(), and removeOldPackets().

◆ waiting_uid

int NeighborReputationHandler::waiting_uid

protected

Referenced by addUnconfirmedPkt(), checkUnconfirmedPkt(), and expire().

The documentation for this class was generated from the following files:

DESERT_Addons/security/uwflooding_sec/uwflooding-sec.h
DESERT_Addons/security/uwflooding_sec/uwflooding-sec.cpp
