#include <minterpreterTEL.h>

Inheritance diagram for MinterpreterTEL:

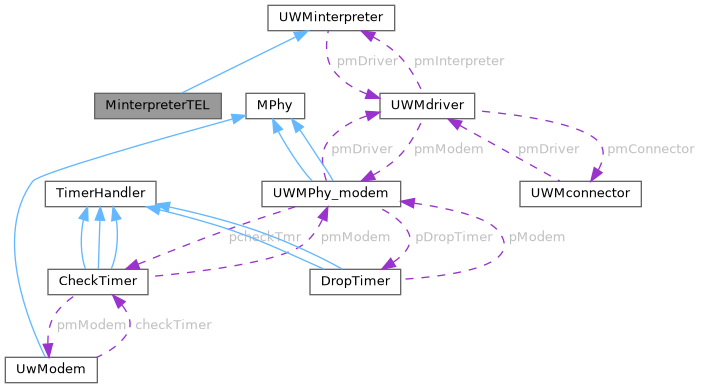

Collaboration diagram for MinterpreterTEL:

Public Member Functions
	MinterpreterTEL (UWMdriver *)

	~MinterpreterTEL ()

std::string	build_poweron_DSP (int _step)

std::string	build_poweroff_DSP (int _step)

std::string	build_busy_FPGA ()

std::string	build_stop_listen ()

std::string	build_config_DSP (int _gain, int _chipset, int _sl, int _th, int _mps_th)

std::string	build_recv_data (int msg_bytes, int _stop_f, double _delay)

std::string	build_send_ctrl (std::string _ctrl, int _delay_f, double _delay)

std::string	build_send_data (std::string _data, int _delay_f, double _delay)

std::string	build_bitrate (int _bitrate)

std::string	build_clear_tx ()

void	parse_TELEGRAM (std::string telegram)

Public Member Functions inherited from UWMinterpreter
	UWMinterpreter (UWMdriver *)

	~UWMinterpreter ()

	UWMinterpreter (UWMdriver *)

	~UWMinterpreter ()

Private Attributes
double	rx_integrity

Additional Inherited Members
Protected Attributes inherited from UWMinterpreter
UWMdriver *	pmDriver

int	debug_

Detailed Description

Class used to build and parse TELEGRAMS (this class derives UWMinterpreter); currently, this class implements methods to build/parse:

simple configuration messages (e.g., setting of DSP and FPGA of modems)
messages involved in the transmission of CONTROL and DATA messages. Contact EvoLogics GmbH, Ackerstr. 76 d-13355 Berlin for more info (email: suppo.nosp@m.rt@e.nosp@m.volog.nosp@m.ics..nosp@m.de).

Constructor & Destructor Documentation

◆ MinterpreterTEL()

MinterpreterTEL::MinterpreterTEL ( UWMdriver * pmDriver_ )

Class constructor.

Parameters

pmDriver_ pointer to the UWMdriver object to link with this UWMinterpreter object.

References rx_integrity.

◆ ~MinterpreterTEL()

MinterpreterTEL::~MinterpreterTEL ( )

Class destructor.

Member Function Documentation

◆ build_bitrate()

std::string MinterpreterTEL::build_bitrate ( int _bitrate )

Method for building the TELEGRAM that will set the bitrate used for transmission.

Parameters

_bitrate

Returns: bitrate_telegram

Referenced by MdriverS2C_Evo_lowlev::modemTxManager().

◆ build_busy_FPGA()

std::string MinterpreterTEL::build_busy_FPGA ( )

Method which builds the string to ask the DSP if it is busy doing modulation/demodulation. The pin under consideration is a read-only pin.

Returns: Formatted string

Referenced by MdriverS2C_Evo_lowlev::modemTxManager().

◆ build_clear_tx()

std::string MinterpreterTEL::build_clear_tx ( )

Method for building the COMMAND that will clear the tx_on pin

Returns: clear_command

Referenced by MdriverS2C_Evo_lowlev::modemTxManager().

◆ build_config_DSP()

std::string MinterpreterTEL::build_config_DSP	(	int	_gain,
		int	_chipset,
		int	_sl,
		int	_th,
		int	_mps_th
	)

Method for building the TELEGRAM that will allow configuring the DSP. It sets basic settings like gain and source level.

Parameters

_gain
_chipset
_sl
_th
mps_th

Returns: config_string

Referenced by MdriverS2C_Evo_lowlev::modemTxManager().

◆ build_poweroff_DSP()

std::string MinterpreterTEL::build_poweroff_DSP ( int _step )

Method for building the string for turning off the DSP of the modem which basically turns off the physical layer. Steps go from 1 to 3.

Parameters

_step At which step of the turn off process are you (1-3)?

Returns: turnoff_string

Referenced by MdriverS2C_Evo_lowlev::modemTxManager().

◆ build_poweron_DSP()

std::string MinterpreterTEL::build_poweron_DSP ( int _step )

Method for building the string that allow turning on the DSP of the modem, which basically turns on the physical layer: it is made up of four steps, numbered from 1 to 4,and there is a short interval of 1 second in the middle of the procedure.

Parameters

_step At which step of the turn on process are you (1-4)?

Returns: turnon_string

Referenced by MdriverS2C_Evo_lowlev::modemTxManager().

◆ build_recv_data()

std::string MinterpreterTEL::build_recv_data	(	int	msg_bytes,
		int	_stop_f,
		double	_delay
	)

Method for building the TELEGRAM that will allow receiving BITS, wheter CONTROL or DATA messages. It basically switches the physical layer to detect signals and demodulate them. Any new TELEGRAM automatically makes the physical layer to exit this mode.

Parameters

_stop_f	Flag to tell the firmware to stop listening after _stop
_delay	Time to wait before shutting stopping listening

Returns: recv_string

Referenced by MdriverS2C_Evo_lowlev::modemTxManager().

◆ build_send_ctrl()

std::string MinterpreterTEL::build_send_ctrl	(	std::string	_ctrl,
		int	_delay_f,
		double	_delay
	)

Method for building the TELEGRAM that will transmit CONTROL messages, which are short messanges of maximum length with fixed bitrate. The bitrate is ? and maximum allowed length is ?.

Parameters

_crtl
_delay_f
_delay

Returns: ctrl_telegram

Referenced by MdriverS2C_Evo_lowlev::modemTxManager().

◆ build_send_data()

std::string MinterpreterTEL::build_send_data	(	std::string	_data,
		int	_delay_f,
		double	_delay
	)

Method for building the TELEGRAM that will send DATA messages. The maximum allowed length of DATA messages is 7881

Parameters

_data
_delay_f	Flag to tell the firmware to real _delay
_delay	Can make the operation to wait some maount of time

Returns: data_telegram

Referenced by MdriverS2C_Evo_lowlev::modemTxManager().

◆ build_stop_listen()

std::string MinterpreterTEL::build_stop_listen ( )

Method which builds the TELEGRAM that makes the physical layer to exit the listen mode. The modem stops listening for incoming signals asnd returns a timestamp.

Returns: Formatted string

Referenced by MdriverS2C_Evo_lowlev::modemTxManager().

◆ parse_TELEGRAM()

void MinterpreterTEL::parse_TELEGRAM ( std::string telegram )

Method for parsing what is received upon receiving a TELEGRAM

Parameters

_received

References UWMinterpreter::pmDriver, rx_integrity, and UWMdriver::updateRx().

Referenced by MdriverS2C_Evo_lowlev::updateStatus().

Here is the call graph for this function:

Member Data Documentation

◆ rx_integrity

double MinterpreterTEL::rx_integrity

private

Integrity of the last received packet.

Referenced by MinterpreterTEL(), and parse_TELEGRAM().

The documentation for this class was generated from the following files:

DESERT_Addons/ms2c_evologics_lowlev/minterpreterTEL.h
DESERT_Addons/ms2c_evologics_lowlev/minterpreterTEL.cpp
