#include <uw-mac-DACAP-alter.h>

Inheritance diagram for MMacDACAP:

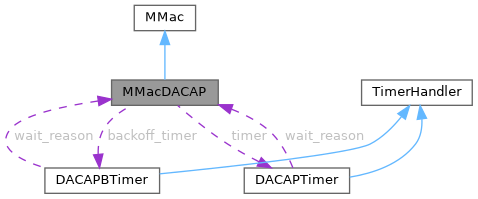

Collaboration diagram for MMacDACAP:

Public Member Functions
	MMacDACAP ()

virtual	~MMacDACAP ()

virtual int	command (int argc, const char const argv)

virtual int	crLayCommand (ClMessage *m)

Protected Member Functions
virtual void	recvFromUpperLayers (Packet *p)

virtual void	Phy2MacEndTx (const Packet *p)

virtual void	Phy2MacStartRx (const Packet *p)

virtual void	Phy2MacEndRx (Packet *p)

virtual double	computeWaitTime (int mode, double distance)

virtual double	computeTxTime (int type)

virtual void	initPkt (Packet *p, int pkt_type)

virtual double	getBackoffTime ()

virtual double	getRecontendTime ()

virtual void	txAck ()

virtual void	txData ()

virtual void	txRts ()

virtual void	txCts ()

virtual void	txWrn ()

virtual void	rxStateIdle (Packet *p)

virtual void	rxStateBackoff (Packet *p)

virtual void	rxStateWaitCTS (Packet *p)

virtual void	rxStateWaitACK (Packet *p)

virtual void	rxStateWaitData (Packet *p)

virtual void	rxStateWaitXCts (Packet *p)

virtual void	rxStateWaitXData (Packet *p)

virtual void	rxStateWaitXAck (Packet *p)

virtual void	rxStateWaitXWarning (Packet *p)

virtual void	rxStateWaitWarning (Packet *p)

virtual void	rxStateSendWarning (Packet *p)

virtual void	rxStateRecontendWindow (Packet *p)

virtual void	stateIdle ()

virtual void	stateSendRTS ()

virtual void	stateBackoff ()

virtual void	stateWaitCTS ()

virtual void	stateDeferData ()

virtual void	stateSendData ()

virtual void	stateWaitACK ()

virtual void	stateCTSReceived ()

virtual void	stateWaitData ()

virtual void	stateDataReceived (Packet *data_pkt)

virtual void	stateWaitXCts ()

virtual void	stateWaitXData ()

virtual void	stateWaitXAck ()

virtual void	stateWaitXWarning ()

virtual void	stateSendAck ()

virtual void	stateSendCTS ()

virtual void	stateWaitWarning ()

virtual void	stateSendWarning ()

virtual void	stateRecontendWindow ()

virtual void	printStateInfo (double delay=0)

virtual void	initInfo ()

virtual void	refreshState (int state)

virtual void	setBackoffNodes (double node, double node_b)

virtual void	exitBackoff ()

virtual void	exitSleep ()

virtual void	freezeBackoff ()

virtual int	getQueueSize ()

virtual void	queuePop (bool flag=true)

virtual void	waitForUser ()

int	getUpLayersDataPktsRx ()

virtual void	incrWrnPktsTx ()

virtual void	incrWrnPktsRx ()

virtual void	incrRtsPktsTx ()

virtual void	incrRtsPktsRx ()

virtual void	incrCtsPktsTx ()

virtual void	incrCtsPktsRx ()

virtual void	incrTotalDeferTimes ()

virtual void	resetStats ()

virtual int	getRemainingPkts ()

virtual int	getWrnPktsTx ()

virtual int	getWrnPktsRx ()

virtual int	getRtsPktsTx ()

virtual int	getRtsPktsRx ()

virtual int	getCtsPktsTx ()

virtual int	getCtsPktsRx ()

virtual int	getTotalDeferTimes ()

virtual void	backoffStartTime ()

virtual void	deferEndTime (double duration)

virtual void	backoffEndTime ()

virtual double	getMeanDeferTime ()

Protected Attributes
int	wrn_pkts_tx

int	wrn_pkts_rx

int	rts_pkts_tx

int	rts_pkts_rx

int	cts_pkts_tx

int	cts_pkts_rx

double	defer_times_no

double	sum_defer_time

double	start_tx_time

double	srtt

double	sumrtt

double	sumrtt2

int	rttsamples

std::queue< Packet * >	Q

bool	TxActive

bool	RxActive

bool	defer_data

bool	session_active

bool	backoff_pending

bool	warning_sent

bool	backoff_freeze_mode

bool	print_transitions

bool	has_buffer_queue

bool	multihop_mode

int	sleep_node_1

int	sleep_node_2

int	last_reason

double	t_min

double	T_W_min

double	delta_D

double	delta_data

double	max_prop_delay

int	op_mode

double	max_tx_tries

int	buffer_pkts

double	backoff_tuner

double	wait_costant

int	max_payload

double	max_backoff_counter

double	alpha_

int	curr_dest_addr

int	CTS_size

int	RTS_size

int	WRN_size

int	HDR_size

int	ACK_size

int	curr_state

int	prev_state

double	RTS_sent_time

double	session_distance

double	backoff_start_time

double	backoff_duration

double	backoff_remaining

double	backoff_first_start

Packet *	curr_data_pkt

int	last_data_id_tx

int	last_data_id_rx

int	u_data_id

DACAPTimer	timer

DACAPBTimer	backoff_timer

int	txsn

int	backoff_counter

ofstream	fout

Static Protected Attributes
static int	u_pkt_id

static map< int, string >	info

Friends
class	DACAPTimer

class	DACAPBTimer

Detailed Description

Class that represents a DACAP node

Constructor & Destructor Documentation

◆ MMacDACAP()

MMacDACAP::MMacDACAP ( )

Costructor of the MMacDACAP class

References ACK_size, alpha_, backoff_tuner, buffer_pkts, CTS_size, delta_D, delta_data, has_buffer_queue, HDR_size, info, initInfo(), max_backoff_counter, max_payload, max_prop_delay, max_tx_tries, RTS_size, t_min, T_W_min, u_pkt_id, wait_costant, and WRN_size.

Here is the call graph for this function:

◆ ~MMacDACAP()

MMacDACAP::~MMacDACAP ( )

virtual

Destructor of the MMacDACAP class

Member Function Documentation

◆ backoffEndTime()

virtual void MMacDACAP::backoffEndTime ( )

inlineprotectedvirtual

calculates the End Time of the backoff timer

References backoff_first_start.

Referenced by exitBackoff().

◆ backoffStartTime()

virtual void MMacDACAP::backoffStartTime ( )

inlineprotectedvirtual

Sets the start time of the backoff timer to NOW

References backoff_first_start.

Referenced by stateBackoff().

◆ command()

int MMacDACAP::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

References ACK_MODE, backoff_freeze_mode, fout, getCtsPktsRx(), getCtsPktsTx(), getMeanDeferTime(), getQueueSize(), getRtsPktsRx(), getRtsPktsTx(), getTotalDeferTimes(), getUpLayersDataPktsRx(), getWrnPktsRx(), getWrnPktsTx(), multihop_mode, NO_ACK_MODE, op_mode, and print_transitions.

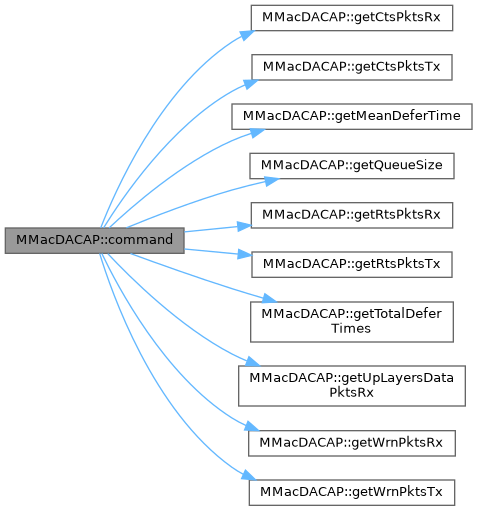

Here is the call graph for this function:

◆ computeTxTime()

double MMacDACAP::computeTxTime ( int type )

protectedvirtual

Computes the time that is needed to transmit a packet, implementing a CrLayMessage for asking the PHY layer to perform this calculation

Parameters

type	of the packet

Returns: double the time needed for transmission in seconds

References ACK_PKT, ACK_size, CTS_PKT, CTS_size, DATA_PKT, HDR_size, max_payload, Q, RTS_PKT, RTS_size, WRN_PKT, and WRN_size.

Referenced by computeWaitTime(), stateWaitACK(), stateWaitCTS(), stateWaitData(), stateWaitWarning(), stateWaitXAck(), stateWaitXCts(), stateWaitXData(), and stateWaitXWarning().

◆ computeWaitTime()

double MMacDACAP::computeWaitTime	(	int	mode,
		double	distance
	)

protectedvirtual

Computes the T_w parameter, that is the minimum time that the sender has to wait between the reception of CTS packet and the effective transmission of data packet

Parameters

mode	indicates whether the ACK mode or no_ACK mode is activated
distance	between the sender and the receiver

Returns: double the value of T_w

References computeTxTime(), DATA_PKT, delta_D, delta_data, max_prop_delay, NO_ACK_MODE, t_min, and T_W_min.

Referenced by stateDeferData(), stateWaitData(), and stateWaitXData().

Here is the call graph for this function:

◆ crLayCommand()

int MMacDACAP::crLayCommand ( ClMessage * m )

virtual

Cross-Layer messages interpreter

Parameters

ClMessage* an instance of ClMessage that represent the message received

Returns: 0 if successful.

◆ deferEndTime()

virtual void MMacDACAP::deferEndTime ( double duration )

inlineprotectedvirtual

Sets the end time of the defer summing the duration to the actual duration of defer

Parameters

double duration of the defer time

References sum_defer_time.

Referenced by stateDeferData().

◆ exitBackoff()

void MMacDACAP::exitBackoff ( )

inlineprotectedvirtual

The backoff timer is stopped

References backoff_duration, backoff_first_start, backoff_freeze_mode, backoff_pending, backoff_remaining, backoff_start_time, backoff_timer, backoffEndTime(), NOT_SET, and timer.

Referenced by rxStateBackoff().

Here is the call graph for this function:

◆ exitSleep()

void MMacDACAP::exitSleep ( )

protectedvirtual

This method erase the MAC address of the two nodes that have intiated a handshake procedure if this handshake is done

References NOT_SET, sleep_node_1, and sleep_node_2.

Referenced by rxStateWaitXAck(), rxStateWaitXCts(), rxStateWaitXData(), rxStateWaitXWarning(), and stateIdle().

◆ freezeBackoff()

void MMacDACAP::freezeBackoff ( )

inlineprotectedvirtual

Freezes the Backoff timer

References backoff_duration, backoff_pending, backoff_remaining, backoff_start_time, NOT_SET, and timer.

Referenced by rxStateBackoff().

◆ getBackoffTime()

double MMacDACAP::getBackoffTime ( )

protectedvirtual

Calculate the backoff time if the node didn't received the ACK

References backoff_counter, backoff_tuner, max_backoff_counter, and max_prop_delay.

Referenced by stateBackoff().

◆ getCtsPktsRx()

virtual int MMacDACAP::getCtsPktsRx ( )

inlineprotectedvirtual

Returns: number of CTS packets received

References cts_pkts_rx.

Referenced by command().

◆ getCtsPktsTx()

virtual int MMacDACAP::getCtsPktsTx ( )

inlineprotectedvirtual

Returns: number of CTS packets transmitted

References cts_pkts_tx.

Referenced by command().

◆ getMeanDeferTime()

virtual double MMacDACAP::getMeanDeferTime ( )

inlineprotectedvirtual

Returns: Mean of all the defer times

References defer_times_no, and sum_defer_time.

Referenced by command().

◆ getQueueSize()

virtual int MMacDACAP::getQueueSize ( )

inlineprotectedvirtual

Returns: the size of DATA queue at the end of simulation

References Q.

Referenced by command().

◆ getRecontendTime()

double MMacDACAP::getRecontendTime ( )

protectedvirtual

Used in multihop mode

References max_prop_delay, and wait_costant.

Referenced by stateRecontendWindow().

◆ getRemainingPkts()

virtual int MMacDACAP::getRemainingPkts ( )

inlineprotectedvirtual

Returns: Number of data packets that are remained in the data queue at the end of simulation

References Q.

◆ getRtsPktsRx()

virtual int MMacDACAP::getRtsPktsRx ( )

inlineprotectedvirtual

Returns: number of RTS packets received

References rts_pkts_rx.

Referenced by command().

◆ getRtsPktsTx()

virtual int MMacDACAP::getRtsPktsTx ( )

inlineprotectedvirtual

Returns: number of RTS packets transmitted

References rts_pkts_tx.

Referenced by command().

◆ getTotalDeferTimes()

virtual int MMacDACAP::getTotalDeferTimes ( )

inlineprotectedvirtual

Returns: number of defers occured

References defer_times_no.

Referenced by command().

◆ getUpLayersDataPktsRx()

int MMacDACAP::getUpLayersDataPktsRx ( )

inlineprotected

Referenced by command().

◆ getWrnPktsRx()

virtual int MMacDACAP::getWrnPktsRx ( )

inlineprotectedvirtual

Returns: number of WRN packets received

References wrn_pkts_rx.

Referenced by command().

◆ getWrnPktsTx()

virtual int MMacDACAP::getWrnPktsTx ( )

inlineprotectedvirtual

Returns: number of WRN packets transmitted

References wrn_pkts_tx.

Referenced by command().

◆ incrCtsPktsRx()

virtual void MMacDACAP::incrCtsPktsRx ( )

inlineprotectedvirtual

Increases the counter of CTS packets received

References cts_pkts_rx.

Referenced by rxStateWaitCTS().

◆ incrCtsPktsTx()

virtual void MMacDACAP::incrCtsPktsTx ( )

inlineprotectedvirtual

Increases the counter of CTS packets transmitted

References cts_pkts_tx.

Referenced by txCts().

◆ incrRtsPktsRx()

virtual void MMacDACAP::incrRtsPktsRx ( )

inlineprotectedvirtual

Increases the counter of RTS packets received

References rts_pkts_rx.

Referenced by rxStateBackoff(), rxStateIdle(), rxStateRecontendWindow(), rxStateSendWarning(), and rxStateWaitData().

◆ incrRtsPktsTx()

virtual void MMacDACAP::incrRtsPktsTx ( )

inlineprotectedvirtual

Increases the counter of RTS packets transmitted

References rts_pkts_tx.

Referenced by txRts().

◆ incrTotalDeferTimes()

virtual void MMacDACAP::incrTotalDeferTimes ( )

inlineprotectedvirtual

Increases the number of times a transmission is deferred

References defer_times_no.

Referenced by stateDeferData().

◆ incrWrnPktsRx()

virtual void MMacDACAP::incrWrnPktsRx ( )

inlineprotectedvirtual

Increases the counter of WRN packets received

References wrn_pkts_rx.

Referenced by rxStateWaitWarning().

◆ incrWrnPktsTx()

virtual void MMacDACAP::incrWrnPktsTx ( )

inlineprotectedvirtual

Increases the counter of WRN packets transmitted

References wrn_pkts_tx.

Referenced by txWrn().

◆ initInfo()

void MMacDACAP::initInfo ( )

protectedvirtual

Initializes the protocol at the beginning of the simulation. This method is called by a command in tcl.

See also: command method

References ACK_PKT, CTS_PKT, DATA_PKT, info, print_transitions, REASON_ACK_RECEIVED, REASON_ACK_SENT, REASON_BACKOFF_END, REASON_BACKOFF_PENDING, REASON_CTS_RECEIVED, REASON_CTS_SENT, REASON_DATA_PENDING, REASON_DATA_RECEIVED, REASON_DATA_SENT, REASON_DEFER, REASON_DEFER_END, REASON_INTERFERENCE, REASON_MAX_TX_TRIES, REASON_NOACK, REASON_NOCTS, REASON_NODATA, REASON_NOWRN, REASON_RTS_RECEIVED, REASON_RTS_SENT, REASON_SAME_RTS_RECEIVED, REASON_TX_ENDED, REASON_WAIT_RECONTEND_END, REASON_WAIT_XWRN_END, REASON_WRN_END, REASON_WRN_RECEIVED, REASON_XACK_END, REASON_XACK_RX, REASON_XCTS_END, REASON_XCTS_RX, REASON_XDATA_END, REASON_XDATA_RX, REASON_XRTS_RX, RTS_PKT, STATE_BACKOFF, STATE_CTS_RECEIVED, STATE_DATA_RECEIVED, STATE_DEFER_DATA, STATE_IDLE, STATE_RECONTEND_WINDOW, STATE_SEND_ACK, STATE_SEND_CTS, STATE_SEND_DATA, STATE_SEND_RTS, STATE_SEND_WRN, STATE_WAIT_ACK, STATE_WAIT_CTS, STATE_WAIT_DATA, STATE_WAIT_WRN, STATE_WAIT_XACK, STATE_WAIT_XCTS, STATE_WAIT_XDATA, STATE_WAIT_XWRN, and WRN_PKT.

Referenced by MMacDACAP().

◆ initPkt()

void MMacDACAP::initPkt	(	Packet *	p,
		int	pkt_type
	)

protectedvirtual

Initializes the packet with the correct MAC source address and destination address, the correct type and size

Parameters

Pointer	to the packet that we have to initialize
type	of the packet that we are going to initialize

References ACK_PKT, CTS_PKT, CTS_size, curr_data_pkt, curr_dest_addr, hdr_dacap::dacap_type, DATA_PKT, hdr_dacap::data_sn, HDR_size, hdr_dacap::orig_type, PT_DACAP, RTS_PKT, RTS_size, hdr_dacap::sn, hdr_dacap::ts, hdr_dacap::tx_tries, txsn, u_data_id, u_pkt_id, WRN_PKT, and WRN_size.

Referenced by recvFromUpperLayers(), txAck(), txCts(), txRts(), and txWrn().

◆ Phy2MacEndRx()

void MMacDACAP::Phy2MacEndRx ( Packet * p )

protectedvirtual

Method called when the Phy Layer finish to receive a Packet

Parameters

const Packet* Pointer to an object of type Packet that rapresent the packet received

References curr_state, hdr_dacap::dacap_type, info, PT_DACAP, rxStateBackoff(), rxStateIdle(), rxStateRecontendWindow(), rxStateSendWarning(), rxStateWaitACK(), rxStateWaitCTS(), rxStateWaitData(), rxStateWaitWarning(), rxStateWaitXAck(), rxStateWaitXCts(), rxStateWaitXData(), rxStateWaitXWarning(), STATE_BACKOFF, STATE_IDLE, STATE_RECONTEND_WINDOW, STATE_SEND_WRN, STATE_WAIT_ACK, STATE_WAIT_CTS, STATE_WAIT_DATA, STATE_WAIT_WRN, STATE_WAIT_XACK, STATE_WAIT_XCTS, STATE_WAIT_XDATA, and STATE_WAIT_XWRN.

Here is the call graph for this function:

◆ Phy2MacEndTx()

void MMacDACAP::Phy2MacEndTx ( const Packet * p )

protectedvirtual

Method called when the PHY layer finish to transmit the packet.

Parameters

Packet* Pointer to an object of type Packet that rapresent the Packet transmitted

References ACK_MODE, backoff_pending, curr_state, info, last_reason, multihop_mode, NO_ACK_MODE, op_mode, Q, REASON_ACK_SENT, REASON_BACKOFF_PENDING, REASON_CTS_SENT, REASON_DATA_SENT, REASON_RTS_SENT, STATE_BACKOFF, STATE_IDLE, STATE_SEND_ACK, STATE_SEND_CTS, STATE_SEND_DATA, STATE_SEND_RTS, STATE_SEND_WRN, STATE_WAIT_ACK, STATE_WAIT_CTS, STATE_WAIT_DATA, stateBackoff(), stateIdle(), stateRecontendWindow(), stateSendWarning(), stateWaitACK(), stateWaitCTS(), and TxActive.

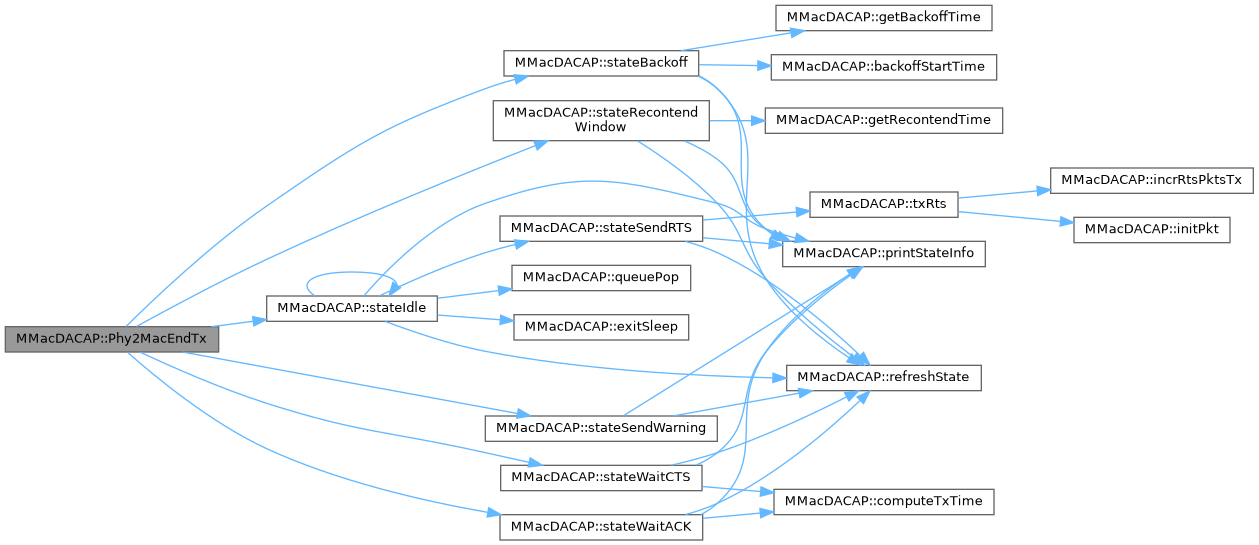

Here is the call graph for this function:

◆ Phy2MacStartRx()

void MMacDACAP::Phy2MacStartRx ( const Packet * p )

protectedvirtual

Method called when the Phy Layer start to receive a Packet

Parameters

const Packet* Pointer to an object of type Packet that rapresent the Packet that is in reception

References RxActive.

◆ printStateInfo()

void MMacDACAP::printStateInfo ( double delay = 0 )

protectedvirtual

Prints a file with every state change for debug purposes.

Parameters

delay from the call of the method and the effective write process on the file

References backoff_counter, curr_state, fout, info, last_reason, prev_state, print_transitions, STATE_BACKOFF, STATE_DEFER_DATA, and STATE_RECONTEND_WINDOW.

Referenced by stateBackoff(), stateCTSReceived(), stateDataReceived(), stateDeferData(), stateIdle(), stateRecontendWindow(), stateSendAck(), stateSendCTS(), stateSendData(), stateSendRTS(), stateSendWarning(), stateWaitACK(), stateWaitCTS(), stateWaitData(), stateWaitWarning(), stateWaitXAck(), stateWaitXCts(), stateWaitXData(), and stateWaitXWarning().

◆ queuePop()

virtual void MMacDACAP::queuePop ( bool flag = true )

inlineprotectedvirtual

Pop the first element of the queue

References Q.

Referenced by rxStateWaitACK(), stateIdle(), and txData().

◆ recvFromUpperLayers()

void MMacDACAP::recvFromUpperLayers ( Packet * p )

protectedvirtual

Receive the packet from the upper layer (e.g. IP)

Parameters

Packet* pointer to the packet received

References buffer_pkts, curr_state, DATA_PKT, has_buffer_queue, initPkt(), last_reason, Q, REASON_DATA_PENDING, RxActive, session_active, STATE_IDLE, and stateSendRTS().

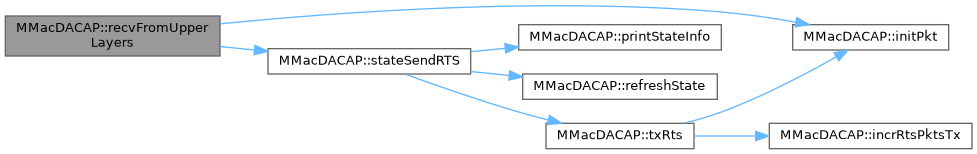

Here is the call graph for this function:

◆ refreshState()

virtual void MMacDACAP::refreshState ( int state )

inlineprotectedvirtual

Refresh the state of the protocol

Parameters

int	current state of the protcol

References curr_state, and prev_state.

Referenced by stateBackoff(), stateCTSReceived(), stateDataReceived(), stateDeferData(), stateIdle(), stateRecontendWindow(), stateSendAck(), stateSendCTS(), stateSendData(), stateSendRTS(), stateSendWarning(), stateWaitACK(), stateWaitCTS(), stateWaitData(), stateWaitWarning(), stateWaitXAck(), stateWaitXCts(), stateWaitXData(), and stateWaitXWarning().

◆ resetStats()

virtual void MMacDACAP::resetStats ( )

inlineprotectedvirtual

Resets all the stats counters

References defer_times_no, wrn_pkts_rx, and wrn_pkts_tx.

◆ rxStateBackoff()

void MMacDACAP::rxStateBackoff ( Packet * p )

protectedvirtual

The case of reception while the protocol is in BACKOFF state is handled

Parameters

Packet* pointer to the packet is reception

References backoff_freeze_mode, CTS_PKT, curr_dest_addr, hdr_dacap::dacap_type, DATA_PKT, hdr_dacap::data_sn, exitBackoff(), freezeBackoff(), incrRtsPktsRx(), info, last_data_id_rx, last_reason, REASON_RTS_RECEIVED, REASON_XCTS_RX, REASON_XDATA_RX, REASON_XRTS_RX, RTS_PKT, RxActive, session_active, session_distance, setBackoffNodes(), STATE_SEND_CTS, STATE_WAIT_XACK, STATE_WAIT_XCTS, STATE_WAIT_XWRN, stateSendCTS(), stateWaitXAck(), stateWaitXCts(), and stateWaitXWarning().

Referenced by Phy2MacEndRx().

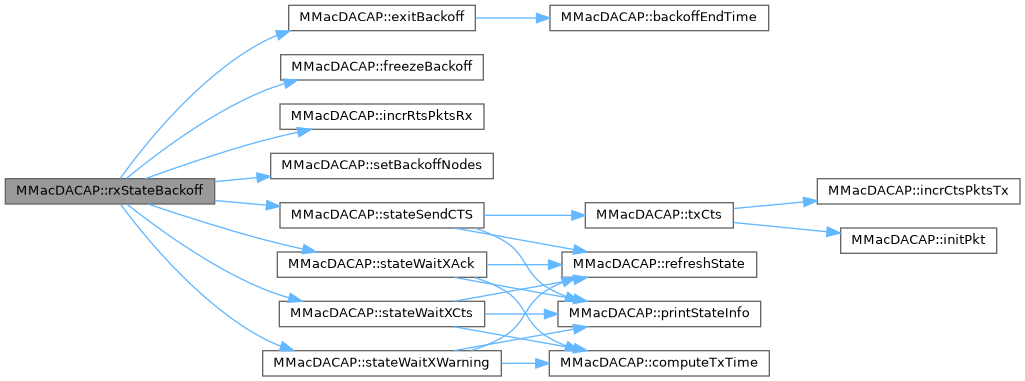

Here is the call graph for this function:

◆ rxStateIdle()

void MMacDACAP::rxStateIdle ( Packet * p )

protectedvirtual

The case of reception while the protocol is in IDLE state is handled

Parameters

Packet* pointer to the packet is reception

References CTS_PKT, curr_dest_addr, hdr_dacap::dacap_type, DATA_PKT, hdr_dacap::data_sn, incrRtsPktsRx(), info, last_data_id_rx, last_reason, REASON_RTS_RECEIVED, REASON_XCTS_RX, REASON_XDATA_RX, REASON_XRTS_RX, RTS_PKT, RxActive, session_active, session_distance, setBackoffNodes(), STATE_SEND_CTS, stateSendCTS(), stateWaitXAck(), stateWaitXCts(), and stateWaitXWarning().

Referenced by Phy2MacEndRx().

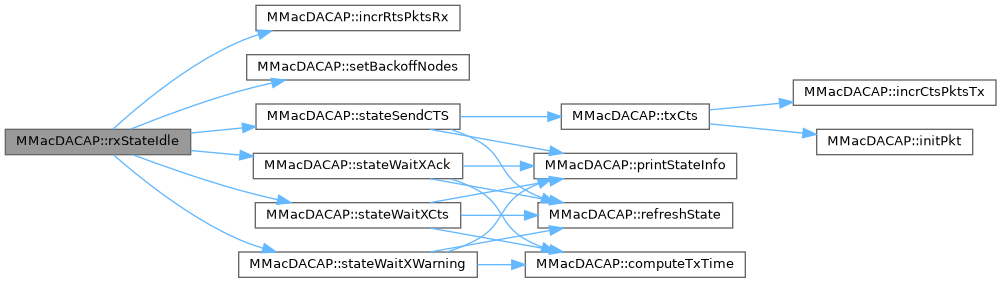

Here is the call graph for this function:

◆ rxStateRecontendWindow()

void MMacDACAP::rxStateRecontendWindow ( Packet * p )

protectedvirtual

The case of reception while the protocol is in RecontendWindow state is handled

Parameters

Packet* pointer to the packet is reception

References CTS_PKT, curr_dest_addr, hdr_dacap::dacap_type, DATA_PKT, hdr_dacap::data_sn, incrRtsPktsRx(), info, last_data_id_rx, last_reason, REASON_RTS_RECEIVED, REASON_XCTS_RX, REASON_XDATA_RX, REASON_XRTS_RX, RTS_PKT, RxActive, session_active, session_distance, setBackoffNodes(), STATE_SEND_CTS, STATE_WAIT_XACK, STATE_WAIT_XCTS, STATE_WAIT_XWRN, stateSendCTS(), stateWaitXAck(), stateWaitXCts(), and stateWaitXWarning().

Referenced by Phy2MacEndRx().

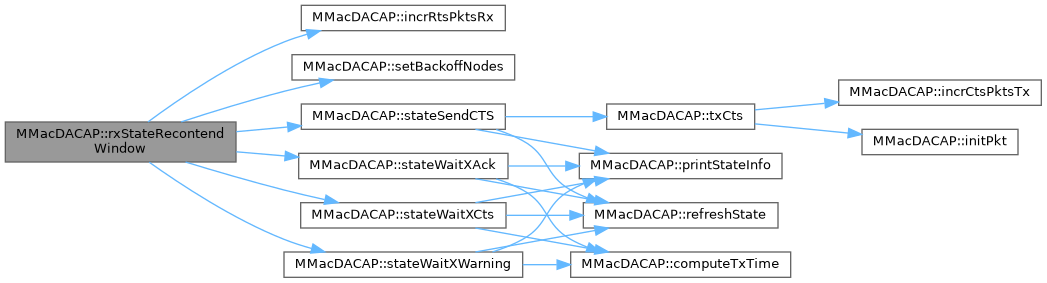

Here is the call graph for this function:

◆ rxStateSendWarning()

void MMacDACAP::rxStateSendWarning ( Packet * p )

protectedvirtual

The case of reception while the protocol is in SendWarning state is handled

Parameters

Packet* pointer to the packet is reception

References ACK_MODE, CTS_PKT, curr_dest_addr, curr_state, hdr_dacap::dacap_type, DATA_PKT, hdr_dacap::data_sn, incrRtsPktsRx(), info, last_data_id_rx, last_reason, max_prop_delay, op_mode, REASON_DATA_RECEIVED, REASON_SAME_RTS_RECEIVED, RTS_PKT, RxActive, session_active, session_distance, stateDataReceived(), stateSendCTS(), t_min, T_W_min, txWrn(), and waitForUser().

Referenced by Phy2MacEndRx().

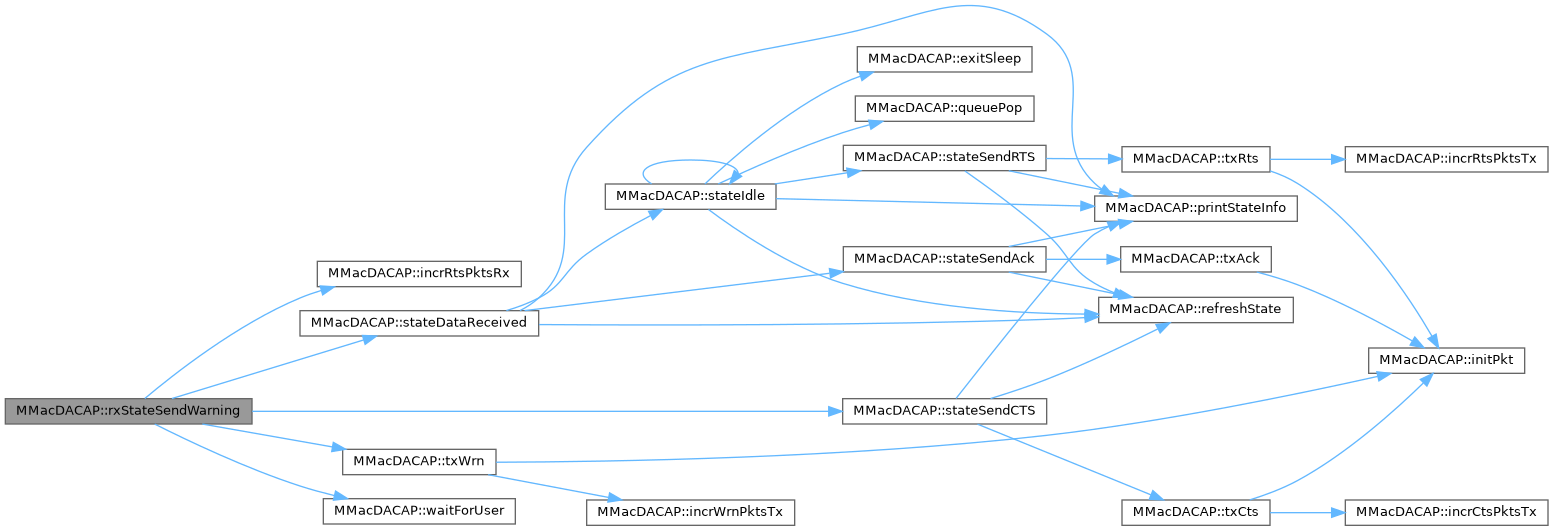

Here is the call graph for this function:

◆ rxStateWaitACK()

void MMacDACAP::rxStateWaitACK ( Packet * p )

protectedvirtual

The case of reception while the protocol is in WaitACK state is handled

Parameters

Packet* pointer to the packet is reception

References ACK_PKT, backoff_pending, curr_dest_addr, hdr_dacap::dacap_type, hdr_dacap::data_sn, info, last_reason, multihop_mode, Q, queuePop(), REASON_ACK_RECEIVED, REASON_BACKOFF_PENDING, RxActive, STATE_BACKOFF, STATE_IDLE, stateBackoff(), stateIdle(), and stateRecontendWindow().

Referenced by Phy2MacEndRx().

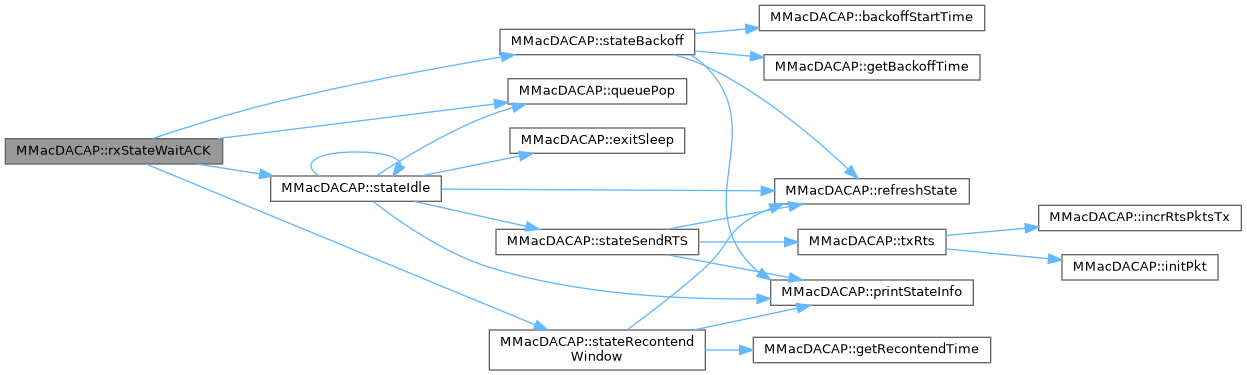

Here is the call graph for this function:

◆ rxStateWaitCTS()

void MMacDACAP::rxStateWaitCTS ( Packet * p )

protectedvirtual

The case of reception while the protocol is in WaitCTS state is handled

Parameters

Packet* pointer to the packet is reception

References ACK_MODE, CTS_PKT, curr_dest_addr, hdr_dacap::dacap_type, hdr_dacap::data_sn, defer_data, incrCtsPktsRx(), info, last_reason, max_prop_delay, NO_ACK_MODE, op_mode, REASON_CTS_RECEIVED, RTS_PKT, RxActive, session_distance, STATE_WAIT_WRN, stateWaitWarning(), t_min, and T_W_min.

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

◆ rxStateWaitData()

void MMacDACAP::rxStateWaitData ( Packet * p )

protectedvirtual

The case of reception while the protocol is in WaitDATA state is handled

Parameters

Packet* pointer to the packet is reception

References curr_dest_addr, hdr_dacap::dacap_type, DATA_PKT, hdr_dacap::data_sn, incrRtsPktsRx(), info, last_data_id_rx, last_reason, REASON_DATA_RECEIVED, REASON_SAME_RTS_RECEIVED, RTS_PKT, RxActive, session_active, session_distance, STATE_DATA_RECEIVED, stateDataReceived(), and stateSendCTS().

Referenced by Phy2MacEndRx().

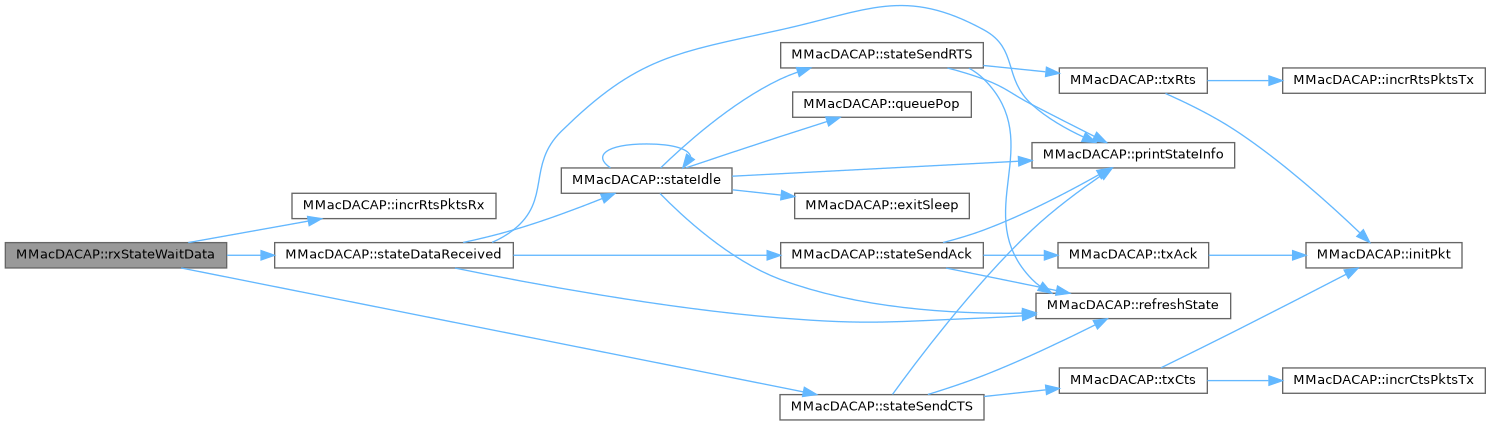

Here is the call graph for this function:

◆ rxStateWaitWarning()

void MMacDACAP::rxStateWaitWarning ( Packet * p )

protectedvirtual

The case of reception while the protocol is in WaitWarning state is handled

Parameters

Packet* pointer to the packet is reception

References ACK_MODE, CTS_PKT, curr_dest_addr, hdr_dacap::dacap_type, hdr_dacap::data_sn, defer_data, incrWrnPktsRx(), max_prop_delay, NO_ACK_MODE, op_mode, RTS_PKT, RxActive, t_min, T_W_min, and WRN_PKT.

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

◆ rxStateWaitXAck()

void MMacDACAP::rxStateWaitXAck ( Packet * p )

protectedvirtual

The case of reception while the protocol is in WaitXAck state is handled

Parameters

Packet* pointer to the packet is reception

References ACK_MODE, ACK_PKT, hdr_dacap::dacap_type, DATA_PKT, hdr_dacap::data_sn, exitSleep(), info, last_reason, NO_ACK_MODE, op_mode, REASON_TX_ENDED, RxActive, sleep_node_1, sleep_node_2, STATE_IDLE, and stateIdle().

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

◆ rxStateWaitXCts()

void MMacDACAP::rxStateWaitXCts ( Packet * p )

protectedvirtual

The case of reception while the protocol is in WaitXCts state is handled

Parameters

Packet* pointer to the packet is reception

References ACK_MODE, ACK_PKT, CTS_PKT, hdr_dacap::dacap_type, DATA_PKT, hdr_dacap::data_sn, exitSleep(), info, last_reason, NO_ACK_MODE, op_mode, REASON_TX_ENDED, REASON_XCTS_RX, REASON_XDATA_RX, RxActive, sleep_node_1, sleep_node_2, STATE_IDLE, STATE_WAIT_XACK, STATE_WAIT_XWRN, stateIdle(), stateWaitXAck(), and stateWaitXWarning().

Referenced by Phy2MacEndRx().

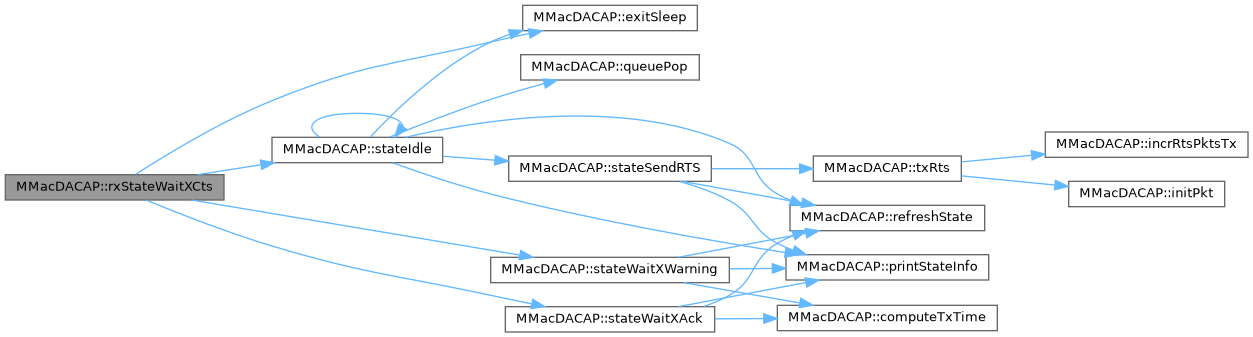

Here is the call graph for this function:

◆ rxStateWaitXData()

void MMacDACAP::rxStateWaitXData ( Packet * p )

protectedvirtual

The case of reception while the protocol is in WaitXData state is handled

Parameters

Packet* pointer to the packet is reception

References ACK_MODE, ACK_PKT, hdr_dacap::dacap_type, DATA_PKT, hdr_dacap::data_sn, exitSleep(), info, last_reason, NO_ACK_MODE, op_mode, REASON_TX_ENDED, REASON_XDATA_RX, RxActive, sleep_node_1, sleep_node_2, STATE_IDLE, STATE_WAIT_XACK, stateIdle(), and stateWaitXAck().

Referenced by Phy2MacEndRx().

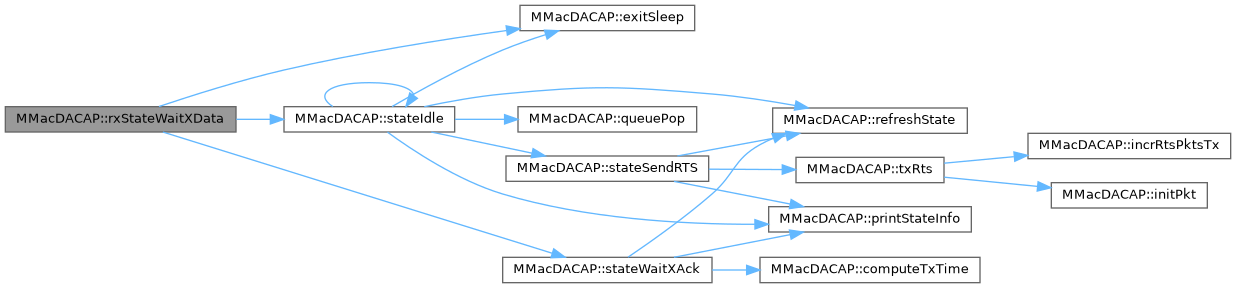

Here is the call graph for this function:

◆ rxStateWaitXWarning()

void MMacDACAP::rxStateWaitXWarning ( Packet * p )

protectedvirtual

The case of reception while the protocol is in WaitXWarning state is handled

Parameters

Packet* pointer to the packet is reception

References ACK_MODE, ACK_PKT, hdr_dacap::dacap_type, DATA_PKT, hdr_dacap::data_sn, exitSleep(), info, last_reason, NO_ACK_MODE, op_mode, REASON_TX_ENDED, REASON_XDATA_RX, RxActive, sleep_node_1, sleep_node_2, STATE_IDLE, STATE_WAIT_XACK, stateIdle(), and stateWaitXAck().

Referenced by Phy2MacEndRx().

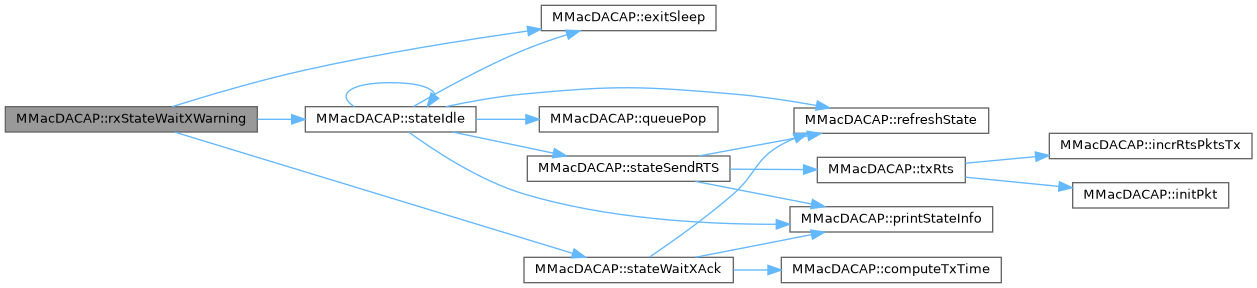

Here is the call graph for this function:

◆ setBackoffNodes()

void MMacDACAP::setBackoffNodes	(	double	node,
		double	node_b
	)

protectedvirtual

Saves the MAC address of another couple of nodes that is the handshake procedure in order to access the channel

References info, NOT_SET, sleep_node_1, sleep_node_2, and STATE_BACKOFF.

Referenced by rxStateBackoff(), rxStateIdle(), and rxStateRecontendWindow().

◆ stateBackoff()

void MMacDACAP::stateBackoff ( )

protectedvirtual

The protocol is in Backoff state. The node hasn't received the ACK packet and the backoff timer is set up for the re-transmission of the DATA packet

References backoff_counter, backoff_duration, backoff_freeze_mode, backoff_pending, backoff_remaining, backoff_start_time, backoff_timer, backoffStartTime(), defer_data, getBackoffTime(), NOT_SET, prev_state, printStateInfo(), refreshState(), STATE_BACKOFF, STATE_WAIT_ACK, STATE_WAIT_CTS, timer, and warning_sent.

Referenced by Phy2MacEndTx(), and rxStateWaitACK().

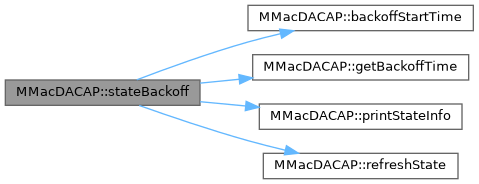

Here is the call graph for this function:

◆ stateCTSReceived()

void MMacDACAP::stateCTSReceived ( )

protectedvirtual

The protocol is in the CTSReceived state

References defer_data, printStateInfo(), refreshState(), STATE_CTS_RECEIVED, stateDeferData(), stateSendData(), and timer.

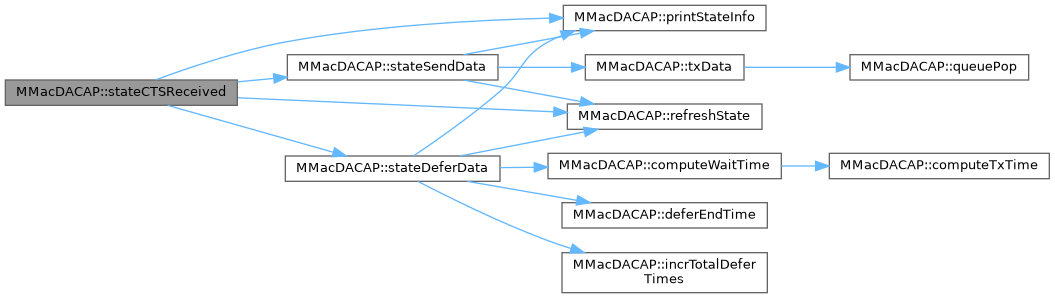

Here is the call graph for this function:

◆ stateDataReceived()

void MMacDACAP::stateDataReceived ( Packet * data_pkt )

protectedvirtual

The protocol is in the DataReceived state. a Data Packet is received

Parameters

Packet* pointer to the data packet received

References ACK_MODE, HDR_size, op_mode, hdr_dacap::orig_type, printStateInfo(), refreshState(), STATE_DATA_RECEIVED, stateIdle(), stateSendAck(), and timer.

Referenced by rxStateSendWarning(), and rxStateWaitData().

Here is the call graph for this function:

◆ stateDeferData()

void MMacDACAP::stateDeferData ( )

protectedvirtual

The protocol is in the DeferData state. The node has received a WRN packet or has received a CTS packet coming from other nodes. The scheduled transmission is deferred

References computeWaitTime(), deferEndTime(), incrTotalDeferTimes(), op_mode, printStateInfo(), refreshState(), session_distance, STATE_DEFER_DATA, and timer.

Referenced by stateCTSReceived().

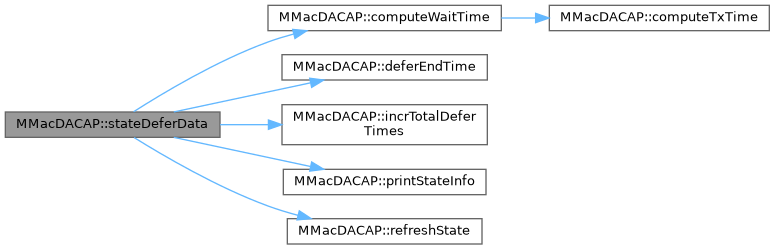

Here is the call graph for this function:

◆ stateIdle()

void MMacDACAP::stateIdle ( )

protectedvirtual

The protocol is in the IDLE state. All variables and timers are resetted

References backoff_counter, curr_dest_addr, defer_data, exitSleep(), last_data_id_tx, last_reason, max_tx_tries, NOT_SET, printStateInfo(), Q, queuePop(), REASON_DATA_PENDING, REASON_MAX_TX_TRIES, refreshState(), session_active, session_distance, STATE_IDLE, stateIdle(), stateSendRTS(), timer, and warning_sent.

Referenced by Phy2MacEndTx(), rxStateWaitACK(), rxStateWaitXAck(), rxStateWaitXCts(), rxStateWaitXData(), rxStateWaitXWarning(), stateDataReceived(), and stateIdle().

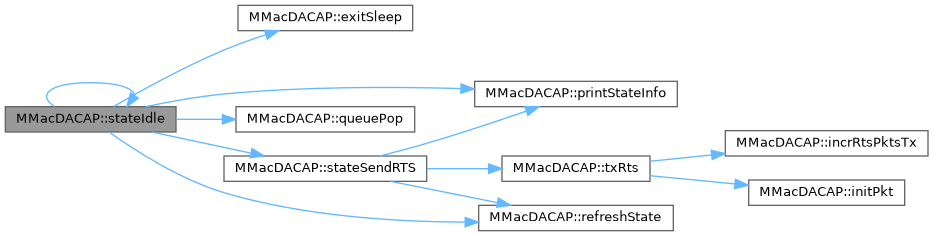

Here is the call graph for this function:

◆ stateRecontendWindow()

void MMacDACAP::stateRecontendWindow ( )

protectedvirtual

The protocol is in RecontendWindow state. In multi-hop scenario after a transmission the node enter in a recontention window before return in IDLE state

References getRecontendTime(), printStateInfo(), refreshState(), STATE_RECONTEND_WINDOW, and timer.

Referenced by Phy2MacEndTx(), and rxStateWaitACK().

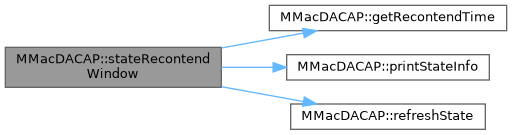

Here is the call graph for this function:

◆ stateSendAck()

void MMacDACAP::stateSendAck ( )

protectedvirtual

The protocol is in SendAck state. The node is sending an ACK after the reception of a data packet (if the acknowledgement is active)

References printStateInfo(), refreshState(), STATE_SEND_ACK, timer, and txAck().

Referenced by stateDataReceived().

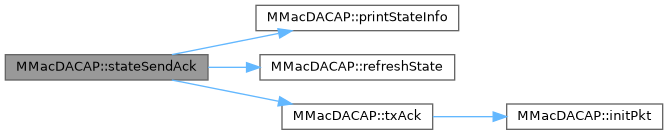

Here is the call graph for this function:

◆ stateSendCTS()

void MMacDACAP::stateSendCTS ( )

protectedvirtual

The protocol is in SendCTS state. The node is sending CTS afeter the reception of a RTS packet

References printStateInfo(), refreshState(), STATE_SEND_CTS, timer, and txCts().

Referenced by rxStateBackoff(), rxStateIdle(), rxStateRecontendWindow(), rxStateSendWarning(), and rxStateWaitData().

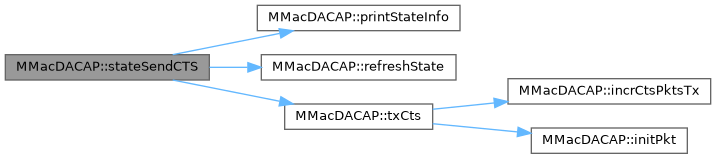

Here is the call graph for this function:

◆ stateSendData()

void MMacDACAP::stateSendData ( )

protectedvirtual

The protocol is in the SendData state. The handshaking phase is done. The node transmit his data packet

References defer_data, printStateInfo(), refreshState(), STATE_SEND_DATA, timer, and txData().

Referenced by stateCTSReceived().

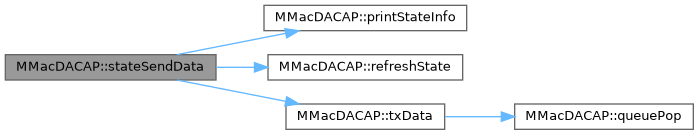

Here is the call graph for this function:

◆ stateSendRTS()

void MMacDACAP::stateSendRTS ( )

protectedvirtual

The protocol is in SendRTS state. A RTS packet is prepared to be transmitted

References curr_data_pkt, printStateInfo(), Q, refreshState(), session_active, STATE_SEND_RTS, timer, and txRts().

Referenced by recvFromUpperLayers(), and stateIdle().

Here is the call graph for this function:

◆ stateSendWarning()

void MMacDACAP::stateSendWarning ( )

protectedvirtual

The protocol is in the SendWarning state. The node has received a CTS or RTS packet from a third node not involved in the transmission. The node is sending the WRN packet to the sender to warning the possibility of a collision is the transmission is occuring

References ACK_MODE, max_prop_delay, op_mode, printStateInfo(), refreshState(), STATE_SEND_WRN, t_min, T_W_min, timer, and wait_costant.

Referenced by Phy2MacEndTx().

Here is the call graph for this function:

◆ stateWaitACK()

void MMacDACAP::stateWaitACK ( )

protectedvirtual

The protocol is in the WaitACK state.

References ACK_PKT, computeTxTime(), DATA_PKT, max_prop_delay, printStateInfo(), refreshState(), STATE_WAIT_ACK, timer, and wait_costant.

Referenced by Phy2MacEndTx().

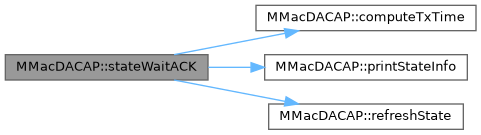

Here is the call graph for this function:

◆ stateWaitCTS()

void MMacDACAP::stateWaitCTS ( )

protectedvirtual

The protocol is in the WaitCTS state. The node has just sent a RTS packet and now he's waiting for the answer with a CTS packet

References computeTxTime(), CTS_PKT, max_prop_delay, printStateInfo(), refreshState(), RTS_PKT, STATE_WAIT_CTS, timer, and wait_costant.

Referenced by Phy2MacEndTx().

Here is the call graph for this function:

◆ stateWaitData()

void MMacDACAP::stateWaitData ( )

protectedvirtual

The protocol is in the WaitData state. The exchanging of RTS/CTS packets is done. Now the node is waiting for the data packet

References computeTxTime(), computeWaitTime(), DATA_PKT, max_prop_delay, op_mode, printStateInfo(), refreshState(), STATE_WAIT_DATA, timer, and wait_costant.

Here is the call graph for this function:

◆ stateWaitWarning()

void MMacDACAP::stateWaitWarning ( )

protectedvirtual

The protocol is in WaitWarning state. The node has received a CTS or RTS packet from a third node not involved in the transmission. The node is waiting the WRN packet from the receiver

References ACK_MODE, computeTxTime(), max_prop_delay, op_mode, printStateInfo(), refreshState(), STATE_WAIT_WRN, t_min, T_W_min, timer, wait_costant, and WRN_PKT.

Referenced by rxStateWaitCTS().

Here is the call graph for this function:

◆ stateWaitXAck()

void MMacDACAP::stateWaitXAck ( )

protectedvirtual

The protocol is in WaitXAck state. The node has received a data packet coming from a third node that is not involved in the transmission. Now the node is waiting for the ACK packet coming from the destinatay of the data packet (if the acknowledgement is active)

References ACK_PKT, computeTxTime(), max_prop_delay, printStateInfo(), refreshState(), STATE_WAIT_XACK, and timer.

Referenced by rxStateBackoff(), rxStateIdle(), rxStateRecontendWindow(), rxStateWaitXCts(), rxStateWaitXData(), and rxStateWaitXWarning().

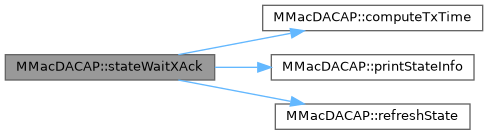

Here is the call graph for this function:

◆ stateWaitXCts()

void MMacDACAP::stateWaitXCts ( )

protectedvirtual

The protocol is in WaitXCts state. The node has received a RTS packet coming from a third node that is not involved in the transmission. Now the node is waiting for the CTS coming from the node destinatary of the RTS

References computeTxTime(), CTS_PKT, max_prop_delay, printStateInfo(), refreshState(), STATE_WAIT_XCTS, and timer.

Referenced by rxStateBackoff(), rxStateIdle(), and rxStateRecontendWindow().

Here is the call graph for this function:

◆ stateWaitXData()

void MMacDACAP::stateWaitXData ( )

protectedvirtual

The protocol is in WaitXData state. The node has received a CTS packet coming from a third node that is not involved in the transmission. Now the node is waiting for the data packet coming from the node destinatary of the CTS

References computeTxTime(), computeWaitTime(), DATA_PKT, max_prop_delay, op_mode, printStateInfo(), refreshState(), STATE_WAIT_XDATA, and timer.

Here is the call graph for this function:

◆ stateWaitXWarning()

void MMacDACAP::stateWaitXWarning ( )

protectedvirtual

The protocol is in WaitXWarning state. The node is waiting for a Warning coming from a third node not involved in the transmission

References ACK_MODE, computeTxTime(), max_prop_delay, op_mode, printStateInfo(), refreshState(), RTS_PKT, STATE_WAIT_XWRN, t_min, T_W_min, timer, wait_costant, and WRN_PKT.

Referenced by rxStateBackoff(), rxStateIdle(), rxStateRecontendWindow(), and rxStateWaitXCts().

Here is the call graph for this function:

◆ txAck()

void MMacDACAP::txAck ( )

protectedvirtual

Pass an ACK packet to transmit to the PHY layer

References ACK_PKT, initPkt(), and TxActive.

Referenced by stateSendAck().

Here is the call graph for this function:

◆ txCts()

void MMacDACAP::txCts ( )

protectedvirtual

Pass a CTS packet to transmit to the PHY layer

References CTS_PKT, incrCtsPktsTx(), initPkt(), and TxActive.

Referenced by stateSendCTS().

Here is the call graph for this function:

◆ txData()

void MMacDACAP::txData ( )

protectedvirtual

Pass a DATA packet to transmit to the PHYl layer

References NO_ACK_MODE, op_mode, Q, queuePop(), and TxActive.

Referenced by stateSendData().

Here is the call graph for this function:

◆ txRts()

void MMacDACAP::txRts ( )

protectedvirtual

Pass a RTS packet to transmit to the PHY layer

References curr_data_pkt, curr_dest_addr, incrRtsPktsTx(), initPkt(), RTS_PKT, start_tx_time, and TxActive.

Referenced by stateSendRTS().

Here is the call graph for this function:

◆ txWrn()

void MMacDACAP::txWrn ( )

protectedvirtual

Pass a WRN packet to transmit to the PHY layer

References incrWrnPktsTx(), initPkt(), TxActive, warning_sent, and WRN_PKT.

Referenced by rxStateSendWarning().

Here is the call graph for this function:

◆ waitForUser()

void MMacDACAP::waitForUser ( )

inlineprotectedvirtual

Used for debug purposes. (Permit to have a "step by step" behaviour of the protocol)

Referenced by rxStateSendWarning().

Friends And Related Symbol Documentation

◆ DACAPBTimer

friend class DACAPBTimer

friend

DACAP Backoff timer

◆ DACAPTimer

friend class DACAPTimer

friend

DACAP ACK timer

Member Data Documentation

◆ ACK_size

int MMacDACAP::ACK_size

protected

Size (in bytes) of the ACK packet

Referenced by computeTxTime(), and MMacDACAP().

◆ alpha_

double MMacDACAP::alpha_

protected

smoothing factor used for statistics using first order IIR filter

Referenced by MMacDACAP().

◆ backoff_counter

int MMacDACAP::backoff_counter

protected

Number of times a backoff timer is set up

Referenced by getBackoffTime(), printStateInfo(), stateBackoff(), and stateIdle().

◆ backoff_duration

double MMacDACAP::backoff_duration

protected

Backoff duration

Referenced by exitBackoff(), freezeBackoff(), and stateBackoff().

◆ backoff_first_start

double MMacDACAP::backoff_first_start

protected

Timestamp at which the backoff timer is started for the first time (if the timer has been freezed many times

Referenced by backoffEndTime(), backoffStartTime(), and exitBackoff().

◆ backoff_freeze_mode

bool MMacDACAP::backoff_freeze_mode

protected

true if the backoff-timer is freezed

Referenced by command(), exitBackoff(), rxStateBackoff(), and stateBackoff().

◆ backoff_pending

bool MMacDACAP::backoff_pending

protected

true if the backoff-timer is active (i.e. there's a backoff process)

Referenced by exitBackoff(), freezeBackoff(), Phy2MacEndTx(), rxStateWaitACK(), and stateBackoff().

◆ backoff_remaining

double MMacDACAP::backoff_remaining

protected

Backoff time remaining (if the timer is freezed)

Referenced by exitBackoff(), freezeBackoff(), and stateBackoff().

◆ backoff_start_time

double MMacDACAP::backoff_start_time

protected

Backoff starting time

Referenced by exitBackoff(), freezeBackoff(), and stateBackoff().

◆ backoff_timer

DACAPBTimer MMacDACAP::backoff_timer

protected

backoff timer

Referenced by exitBackoff(), and stateBackoff().

◆ backoff_tuner

double MMacDACAP::backoff_tuner

protected

Multiplicative factor in the calculation of backoff

Referenced by getBackoffTime(), and MMacDACAP().

◆ buffer_pkts

int MMacDACAP::buffer_pkts

protected

Dimension (in packets) of the buffer queue

Referenced by MMacDACAP(), and recvFromUpperLayers().

◆ cts_pkts_rx

int MMacDACAP::cts_pkts_rx

protected

Counter of CTS packets RX

Referenced by getCtsPktsRx(), and incrCtsPktsRx().

◆ cts_pkts_tx

int MMacDACAP::cts_pkts_tx

protected

Counter of CTS packets TX

Referenced by getCtsPktsTx(), and incrCtsPktsTx().

◆ CTS_size

int MMacDACAP::CTS_size

protected

Size (in bytes) of the CTS packet

Referenced by computeTxTime(), initPkt(), and MMacDACAP().

◆ curr_data_pkt

Packet* MMacDACAP::curr_data_pkt

protected

Pointer to the current data packet

Referenced by initPkt(), stateSendRTS(), and txRts().

◆ curr_dest_addr

int MMacDACAP::curr_dest_addr

protected

MAC address of the current node involved in this session

Referenced by initPkt(), rxStateBackoff(), rxStateIdle(), rxStateRecontendWindow(), rxStateSendWarning(), rxStateWaitACK(), rxStateWaitCTS(), rxStateWaitData(), rxStateWaitWarning(), stateIdle(), and txRts().

◆ curr_state

int MMacDACAP::curr_state

protected

Current state of the protocol

Referenced by Phy2MacEndRx(), Phy2MacEndTx(), printStateInfo(), recvFromUpperLayers(), refreshState(), and rxStateSendWarning().

◆ defer_data

bool MMacDACAP::defer_data

protected

true if a node has to defer the transmission of a data packet

Referenced by rxStateWaitCTS(), rxStateWaitWarning(), stateBackoff(), stateCTSReceived(), stateIdle(), and stateSendData().

◆ defer_times_no

double MMacDACAP::defer_times_no

protected

Counter of defer times

Referenced by getMeanDeferTime(), getTotalDeferTimes(), incrTotalDeferTimes(), and resetStats().

◆ delta_D

double MMacDACAP::delta_D

protected

Value (in m) that indicates how far we want the CTS propagates over the sender before initiate the data transmission process (it determines the T_w value)

Referenced by computeWaitTime(), and MMacDACAP().

◆ delta_data

double MMacDACAP::delta_data

protected

Dimension difference (in bytes) among data packets ( 0 if the packets have always the same dimension)

Referenced by computeWaitTime(), and MMacDACAP().

◆ fout

ofstream MMacDACAP::fout

protected

Object that handle the file where the state transitions is written (if the print_transitions option is active)

Referenced by command(), and printStateInfo().

◆ has_buffer_queue

bool MMacDACAP::has_buffer_queue

protected

true if the node has a buffer queue to store data packets

Referenced by MMacDACAP(), and recvFromUpperLayers().

◆ HDR_size

int MMacDACAP::HDR_size

protected

Size (in bytes) of the header added by DACAP

Referenced by computeTxTime(), initPkt(), MMacDACAP(), and stateDataReceived().

◆ info

map< int, string > MMacDACAP::info

staticprotected

Relationship between the state and its textual description

Referenced by initInfo(), MMacDACAP(), Phy2MacEndRx(), Phy2MacEndTx(), printStateInfo(), rxStateBackoff(), rxStateIdle(), rxStateRecontendWindow(), rxStateSendWarning(), rxStateWaitACK(), rxStateWaitCTS(), rxStateWaitData(), rxStateWaitXAck(), rxStateWaitXCts(), rxStateWaitXData(), rxStateWaitXWarning(), and setBackoffNodes().

◆ last_data_id_rx

int MMacDACAP::last_data_id_rx

protected

Unique ID of the last data packet received

Referenced by rxStateBackoff(), rxStateIdle(), rxStateRecontendWindow(), rxStateSendWarning(), and rxStateWaitData().

◆ last_data_id_tx

int MMacDACAP::last_data_id_tx

protected

Unique ID of the last data packet transmitted

Referenced by stateIdle().

◆ last_reason

int MMacDACAP::last_reason

protected

last reason for the change of state

Referenced by Phy2MacEndTx(), printStateInfo(), recvFromUpperLayers(), rxStateBackoff(), rxStateIdle(), rxStateRecontendWindow(), rxStateSendWarning(), rxStateWaitACK(), rxStateWaitCTS(), rxStateWaitData(), rxStateWaitXAck(), rxStateWaitXCts(), rxStateWaitXData(), rxStateWaitXWarning(), and stateIdle().

◆ max_backoff_counter

double MMacDACAP::max_backoff_counter

protected

Number of times a backoff is calculated

Referenced by getBackoffTime(), and MMacDACAP().

◆ max_payload

int MMacDACAP::max_payload

protected

Dimension of the maximum allowed data paylaod in bytes

Referenced by computeTxTime(), and MMacDACAP().

◆ max_prop_delay

double MMacDACAP::max_prop_delay

protected

One way maximum propagation delay (in seconds) in the network

Referenced by computeWaitTime(), getBackoffTime(), getRecontendTime(), MMacDACAP(), rxStateSendWarning(), rxStateWaitCTS(), rxStateWaitWarning(), stateSendWarning(), stateWaitACK(), stateWaitCTS(), stateWaitData(), stateWaitWarning(), stateWaitXAck(), stateWaitXCts(), stateWaitXData(), and stateWaitXWarning().

◆ max_tx_tries

double MMacDACAP::max_tx_tries

protected

Maximum transmission tries for one packet before discarding the packet

Referenced by MMacDACAP(), and stateIdle().

◆ multihop_mode

bool MMacDACAP::multihop_mode

protected

true if the multihop mode is active to simulate a multihop scenario with routing

Referenced by command(), Phy2MacEndTx(), and rxStateWaitACK().

◆ op_mode

int MMacDACAP::op_mode

protected

Indicates if the ACK_mode or no_ACK_mode is activated

Referenced by command(), Phy2MacEndTx(), rxStateSendWarning(), rxStateWaitCTS(), rxStateWaitWarning(), rxStateWaitXAck(), rxStateWaitXCts(), rxStateWaitXData(), rxStateWaitXWarning(), stateDataReceived(), stateDeferData(), stateSendWarning(), stateWaitData(), stateWaitWarning(), stateWaitXData(), stateWaitXWarning(), and txData().

◆ prev_state

int MMacDACAP::prev_state

protected

Previous state of the protocol

Referenced by printStateInfo(), refreshState(), and stateBackoff().

◆ print_transitions

bool MMacDACAP::print_transitions

protected

true if the state-transitions of the protocol is printed on a file

Referenced by command(), initInfo(), and printStateInfo().

◆ Q

std::queue<Packet *> MMacDACAP::Q

protected

MAC queue used for packet scheduling

Referenced by computeTxTime(), getQueueSize(), getRemainingPkts(), Phy2MacEndTx(), queuePop(), recvFromUpperLayers(), rxStateWaitACK(), stateIdle(), stateSendRTS(), and txData().

◆ rts_pkts_rx

int MMacDACAP::rts_pkts_rx

protected

Counter of RTS packets RX

Referenced by getRtsPktsRx(), and incrRtsPktsRx().

◆ rts_pkts_tx

int MMacDACAP::rts_pkts_tx

protected

Counter of RTS packets TX

Referenced by getRtsPktsTx(), and incrRtsPktsTx().

◆ RTS_sent_time

double MMacDACAP::RTS_sent_time

protected

Timestamp at which the RTS packet is sent

◆ RTS_size

int MMacDACAP::RTS_size

protected

Size (in bytes) of the RTS packet

Referenced by computeTxTime(), initPkt(), and MMacDACAP().

◆ rttsamples

int MMacDACAP::rttsamples

protected

num of RTT samples

◆ RxActive

bool MMacDACAP::RxActive

protected

true if a reception process is occuring

Referenced by Phy2MacStartRx(), recvFromUpperLayers(), rxStateBackoff(), rxStateIdle(), rxStateRecontendWindow(), rxStateSendWarning(), rxStateWaitACK(), rxStateWaitCTS(), rxStateWaitData(), rxStateWaitWarning(), rxStateWaitXAck(), rxStateWaitXCts(), rxStateWaitXData(), and rxStateWaitXWarning().

◆ session_active

bool MMacDACAP::session_active

protected

true if a session is active (i.e. an hand-shaking process is occurring

Referenced by recvFromUpperLayers(), rxStateBackoff(), rxStateIdle(), rxStateRecontendWindow(), rxStateSendWarning(), rxStateWaitData(), stateIdle(), and stateSendRTS().

◆ session_distance

double MMacDACAP::session_distance

protected

Distance between sender and receiver in the current session

Referenced by rxStateBackoff(), rxStateIdle(), rxStateRecontendWindow(), rxStateSendWarning(), rxStateWaitCTS(), rxStateWaitData(), stateDeferData(), and stateIdle().

◆ sleep_node_1

int MMacDACAP::sleep_node_1

protected

MAC address of sleep_node 1

Referenced by exitSleep(), rxStateWaitXAck(), rxStateWaitXCts(), rxStateWaitXData(), rxStateWaitXWarning(), and setBackoffNodes().

◆ sleep_node_2

int MMacDACAP::sleep_node_2

protected

MAC address of sleep_node 2

Referenced by exitSleep(), rxStateWaitXAck(), rxStateWaitXCts(), rxStateWaitXData(), rxStateWaitXWarning(), and setBackoffNodes().

◆ srtt

double MMacDACAP::srtt

protected

Smoothed Round Trip Time, calculated as for TCP

◆ start_tx_time

double MMacDACAP::start_tx_time

protected

Timestamp at which a packet is transmitted

Referenced by txRts().

◆ sum_defer_time

double MMacDACAP::sum_defer_time

protected

Sum of the defer timers

Referenced by deferEndTime(), and getMeanDeferTime().

◆ sumrtt

double MMacDACAP::sumrtt

protected

sum of RTT samples

◆ sumrtt2

double MMacDACAP::sumrtt2

protected

sum of (RTT^2)

◆ t_min

double MMacDACAP::t_min

protected

Minimum time needed to do an hand-shaking

Referenced by computeWaitTime(), MMacDACAP(), rxStateSendWarning(), rxStateWaitCTS(), rxStateWaitWarning(), stateSendWarning(), stateWaitWarning(), and stateWaitXWarning().

◆ T_W_min

double MMacDACAP::T_W_min

protected

Minimum Warning Time in sencods

Referenced by computeWaitTime(), MMacDACAP(), rxStateSendWarning(), rxStateWaitCTS(), rxStateWaitWarning(), stateSendWarning(), stateWaitWarning(), and stateWaitXWarning().

◆ timer

DACAPTimer MMacDACAP::timer

protected

◆ TxActive

bool MMacDACAP::TxActive

protected

true if a transmission process is occuring

Referenced by Phy2MacEndTx(), txAck(), txCts(), txData(), txRts(), and txWrn().

◆ txsn

int MMacDACAP::txsn

protected

serial number of the DATA packet transmitted

Referenced by initPkt().

◆ u_data_id

int MMacDACAP::u_data_id

protected

simulation-unique DATA packet ID

Referenced by initPkt().

◆ u_pkt_id

int MMacDACAP::u_pkt_id

staticprotected

simulation-unique packet ID

Referenced by initPkt(), and MMacDACAP().

◆ wait_costant

double MMacDACAP::wait_costant

protected

Additive factor in the calculation of ACK timer

Referenced by getRecontendTime(), MMacDACAP(), stateSendWarning(), stateWaitACK(), stateWaitCTS(), stateWaitData(), stateWaitWarning(), and stateWaitXWarning().

◆ warning_sent

bool MMacDACAP::warning_sent

protected

true if a WRN packet has been just sent

Referenced by stateBackoff(), stateIdle(), and txWrn().

◆ wrn_pkts_rx

int MMacDACAP::wrn_pkts_rx

protected

Counter of WRN packets RX

Referenced by getWrnPktsRx(), incrWrnPktsRx(), and resetStats().

◆ wrn_pkts_tx

int MMacDACAP::wrn_pkts_tx

protected

Counter of WRN packets TX

Referenced by getWrnPktsTx(), incrWrnPktsTx(), and resetStats().

◆ WRN_size

int MMacDACAP::WRN_size

protected

Size (in bytes) of the WRN packet

Referenced by computeTxTime(), initPkt(), and MMacDACAP().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/data_link/uwdacap/uw-mac-DACAP-alter.h
DESERT_Framework/DESERT/data_link/uwdacap/uw-mac-DACAP-alter.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ MMacDACAP()

◆ ~MMacDACAP()

Member Function Documentation

◆ backoffEndTime()

◆ backoffStartTime()

◆ command()

◆ computeTxTime()

◆ computeWaitTime()

◆ crLayCommand()

◆ deferEndTime()

◆ exitBackoff()

◆ exitSleep()

◆ freezeBackoff()

◆ getBackoffTime()

◆ getCtsPktsRx()

◆ getCtsPktsTx()

◆ getMeanDeferTime()

◆ getQueueSize()

◆ getRecontendTime()

◆ getRemainingPkts()

◆ getRtsPktsRx()

◆ getRtsPktsTx()

◆ getTotalDeferTimes()

◆ getUpLayersDataPktsRx()

◆ getWrnPktsRx()

◆ getWrnPktsTx()

◆ incrCtsPktsRx()

◆ incrCtsPktsTx()

◆ incrRtsPktsRx()

◆ incrRtsPktsTx()

◆ incrTotalDeferTimes()

◆ incrWrnPktsRx()

◆ incrWrnPktsTx()

◆ initInfo()

◆ initPkt()

◆ Phy2MacEndRx()

◆ Phy2MacEndTx()

◆ Phy2MacStartRx()

◆ printStateInfo()

◆ queuePop()

◆ recvFromUpperLayers()

◆ refreshState()

◆ resetStats()

◆ rxStateBackoff()

◆ rxStateIdle()

◆ rxStateRecontendWindow()

◆ rxStateSendWarning()

◆ rxStateWaitACK()

◆ rxStateWaitCTS()

◆ rxStateWaitData()

◆ rxStateWaitWarning()

◆ rxStateWaitXAck()

◆ rxStateWaitXCts()

◆ rxStateWaitXData()

◆ rxStateWaitXWarning()

◆ setBackoffNodes()

◆ stateBackoff()

◆ stateCTSReceived()

◆ stateDataReceived()

◆ stateDeferData()

◆ stateIdle()

◆ stateRecontendWindow()

◆ stateSendAck()

◆ stateSendCTS()

◆ stateSendData()

◆ stateSendRTS()

◆ stateSendWarning()

◆ stateWaitACK()

◆ stateWaitCTS()

◆ stateWaitData()

◆ stateWaitWarning()

◆ stateWaitXAck()

◆ stateWaitXCts()
