Classes
class	CsmaCaTimer

Public Member Functions
	CsmaCa ()

virtual	~CsmaCa ()

virtual int	command (int argc, const char const argv)

Protected Member Functions
virtual void	recvFromUpperLayers (Packet *p)

virtual void	Mac2PhyStartTx (Packet *p)

virtual void	Phy2MacEndTx (const Packet *p)

virtual void	Phy2MacStartRx (const Packet *p)

virtual void	Phy2MacEndRx (Packet *p)

virtual void	dropPacket (Packet p, csma_ca_pkt_type_t type, char reason)

csma_ca_states_t	getState ()

void	updateState (csma_ca_states_t s)

csma_ca_log_level_t	getLogLevel ()

int	getQueueSize ()

time_t	getEpoch ()

string	getLogFile ()

virtual void	state_Wait_CTS ()

virtual void	state_Wait_Data ()

virtual void	state_Idle ()

virtual void	state_Backoff (int tx_time)

virtual int	stateRxData (Packet *p)

virtual int	stateRxRTS (hdr_ca_RTS *rts, int mac_src, int mac_dst)

virtual int	stateRxCTS (hdr_ca_CTS *cts, int mac_src, int mac_dst)

virtual int	stateRxACK (Packet *ack)

virtual void	stateTxCTS ()

virtual int	stateTxData ()

virtual void	state_Wait_ACK ()

virtual void	stateTxAck (int mac_dst)

virtual void	initializeLog ()

Protected Attributes
CsmaCaTimer	backoff_timer

CsmaCaTimer	cts_timer

CsmaCaTimer	data_timer

CsmaCaTimer	ack_timer

Private Member Functions
void	printonLog (csma_ca_log_level_t level, string log)

void	extractDataPacket ()

int	txData ()

int	txRTS (int mac_dest)

int	txCTS (int mac_dest)

int	txAck ()

void	data_timer_fired ()

void	backoff_timer_fired ()

void	cts_timer_fired ()

void	ack_timer_fired ()

int	computeTxTime ()

void	buildRTShdr (hdr_ca_RTS **rts, uint8_t tx_time)

void	buildCTShdr (hdr_ca_CTS **cts, uint8_t tx_time)

Packet *	buildPacket (int mac_dest, csma_ca_pkt_type_t type, uint8_t tx_time)

Private Attributes
int	max_queue_size

int	data_size

int	bitrate

int	backoff_delta

int	backoff_max

int	cts_wait_val

int	data_wait_val

int	ack_wait_val

int	actual_mac_data_src

int	actual_expected_tx_time

Packet *	actual_data_packet

std::queue< Packet * >	data_q

ack_modes_t	ack_mode

csma_ca_states_t	state

csma_ca_states_t	previous_state

std::ofstream	outLog

csma_ca_log_level_t	log_level

string	logfile

int	n_rts_rx

int	n_cts_rx

int	data_pkt_dropped

int	cts_pkt_dropped

int	rts_pkt_dropped

int	ack_pkt_dropped

Detailed Description

Class that describes a CsmaAloha module

Constructor & Destructor Documentation

◆ CsmaCa()

CsmaCa::CsmaCa ( )

References ack_wait_val, backoff_delta, backoff_max, bitrate, cts_wait_val, data_size, data_wait_val, and max_queue_size.

◆ ~CsmaCa()

CsmaCa::~CsmaCa ( )

virtual

Member Function Documentation

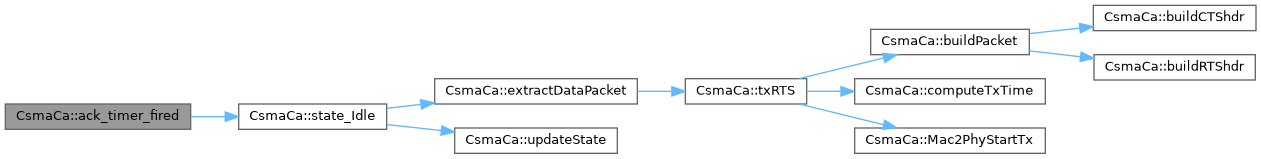

◆ ack_timer_fired()

void CsmaCa::ack_timer_fired ( )

private

ACK timer is expired

References CSMA_CA_WAIT_ACK, state, and state_Idle().

Here is the call graph for this function:

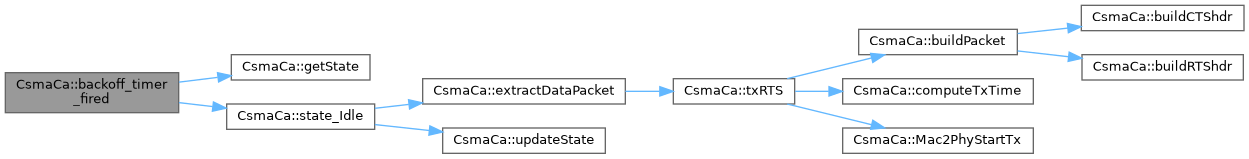

◆ backoff_timer_fired()

void CsmaCa::backoff_timer_fired ( )

private

backoff timer is expired

References CSMA_CA_BACKOFF, getState(), and state_Idle().

Here is the call graph for this function:

◆ buildCTShdr()

void CsmaCa::buildCTShdr	(	hdr_ca_CTS **	cts,
		uint8_t	tx_time
	)

private

Build an CTS header

Parameters

hdr_ca_CTS**	pointer to CTS header to be built
uint8_t	expected tx time of DATA packet

Referenced by buildPacket().

◆ buildPacket()

Packet * CsmaCa::buildPacket	(	int	mac_dest,
		csma_ca_pkt_type_t	type,
		uint8_t	tx_time
	)

private

Build a generic packet

Parameters

int	MAC destination
csma_ca_pkt_type_t	type of packet to build
uint8_t	expected tx time of DATA packet

References buildCTShdr(), buildRTShdr(), CSMA_CA_ACK, CSMA_CA_CTS, CSMA_CA_RTS, PT_CA_ACK, PT_CA_CTS, and PT_CA_RTS.

Referenced by stateTxAck(), txCTS(), and txRTS().

Here is the call graph for this function:

◆ buildRTShdr()

void CsmaCa::buildRTShdr	(	hdr_ca_RTS **	rts,
		uint8_t	tx_time
	)

private

Build an RTS header

Parameters

hdr_ca_RTS**	pointer to RTS header to be built
uint8_t	expected tx time of DATA packet

Referenced by buildPacket().

◆ command()

int CsmaCa::command	(	int	argc,
		const char const	argv
	)

virtual

TCL command interpreter. It implements the following OTcl methods:

Parameters

argc	Number of arguments in argv.
argv	Array of strings which are the command parameters (Note that argv[0] is the name of the object).

Returns: TCL_OK or TCL_ERROR whether the command has been dispatched successfully or not.

References ack_mode, CSMA_CA_ACK_MODE, CSMA_CA_NO_ACK_MODE, cts_pkt_dropped, data_pkt_dropped, getQueueSize(), initializeLog(), n_cts_rx, n_rts_rx, and rts_pkt_dropped.

Here is the call graph for this function:

◆ computeTxTime()

int CsmaCa::computeTxTime ( )

inlineprivate

Compute transmission time of a packet using known bitrate

Returns: int tranmission time

References bitrate, and data_size.

Referenced by txRTS().

◆ cts_timer_fired()

void CsmaCa::cts_timer_fired ( )

private

CTS timer is expired

References CSMA_CA_WAIT_CTS, getState(), and state_Backoff().

Here is the call graph for this function:

◆ data_timer_fired()

void CsmaCa::data_timer_fired ( )

private

data timer is expired

References CSMA_CA_WAIT_DATA, getState(), and state_Idle().

Here is the call graph for this function:

◆ dropPacket()

void CsmaCa::dropPacket	(	Packet *	p,
		csma_ca_pkt_type_t	type,
		char *	reason
	)

protectedvirtual

Drop the packet logging the reason and incrementing the counters

Parameters

Packet*	Pointer to packet to be ack_pkt_dropped
csma_ca_pkt_type_t	type of the packet dropped
char*	Reason for drop

References ack_pkt_dropped, CSMA_CA_ACK, CSMA_CA_CTS, CSMA_CA_DATA, CSMA_CA_RTS, cts_pkt_dropped, data_pkt_dropped, and rts_pkt_dropped.

Referenced by Phy2MacEndRx(), and recvFromUpperLayers().

◆ extractDataPacket()

void CsmaCa::extractDataPacket ( )

private

Extract data packet from queue

References actual_data_packet, data_q, and txRTS().

Referenced by state_Idle().

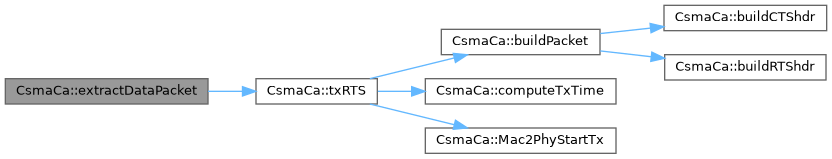

Here is the call graph for this function:

◆ getEpoch()

time_t CsmaCa::getEpoch ( )

inlineprotected

Return the system epoch

Returns: time_t epoch

Referenced by printonLog().

◆ getLogFile()

string CsmaCa::getLogFile ( )

inlineprotected

Return name of the log file

Returns: string file name

References logfile.

Referenced by printonLog().

◆ getLogLevel()

csma_ca_log_level_t CsmaCa::getLogLevel ( )

inlineprotected

Return the current log level of the protocol

Returns: csma_ca_log_t log level

References log_level.

Referenced by printonLog().

◆ getQueueSize()

int CsmaCa::getQueueSize ( )

inlineprotected

Return the size of the data packet queue

Returns: int queue size

References data_q.

Referenced by command(), and recvFromUpperLayers().

◆ getState()

csma_ca_states_t CsmaCa::getState ( )

inlineprotected

Get the state of the protocol

Returns: csma_ca_state_t Current state

References state.

Referenced by backoff_timer_fired(), cts_timer_fired(), data_timer_fired(), stateRxCTS(), stateRxData(), and stateRxRTS().

◆ initializeLog()

void CsmaCa::initializeLog ( )

protectedvirtual

Initializes the protocol at the beginning of the simulation. This method is called by a command in tcl.

References logfile, and outLog.

Referenced by command().

◆ Mac2PhyStartTx()

void CsmaCa::Mac2PhyStartTx ( Packet * p )

protectedvirtual

Pass the packet to the PHY layer

Parameters

Packet* Pointer to an object of type Packet that represent the Packet to transmit

Referenced by stateTxAck(), txCTS(), txData(), and txRTS().

◆ Phy2MacEndRx()

void CsmaCa::Phy2MacEndRx ( Packet * p )

protectedvirtual

Method called when the Phy Layer finish to receive a Packet

Parameters

Packet* Pointer to an object of type Packet that represent the Packet received

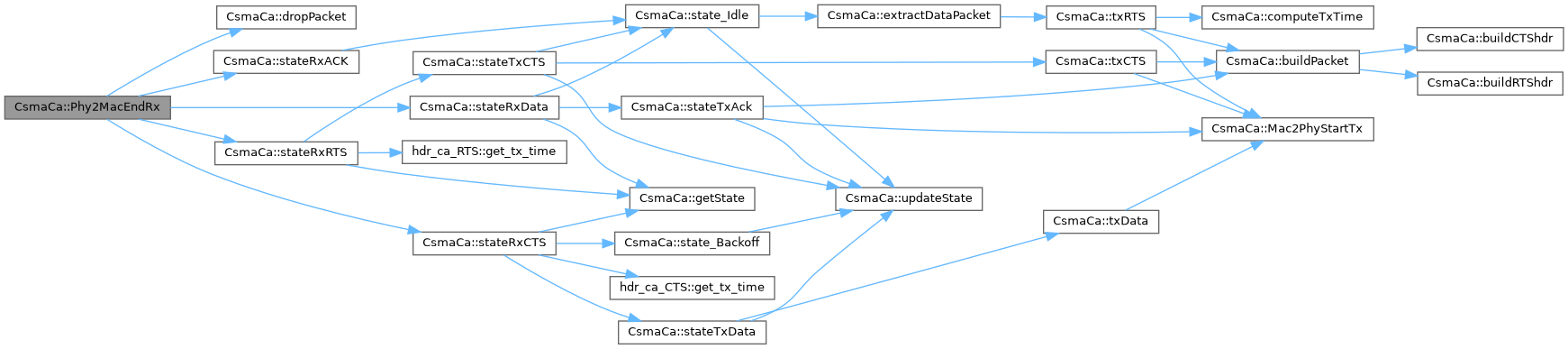

References CSMA_CA_ACK, CSMA_CA_CTS, CSMA_CA_DATA, CSMA_CA_RTS, dropPacket(), n_cts_rx, n_rts_rx, PT_CA_ACK, PT_CA_CTS, PT_CA_RTS, stateRxACK(), stateRxCTS(), stateRxData(), and stateRxRTS().

Here is the call graph for this function:

◆ Phy2MacEndTx()

void CsmaCa::Phy2MacEndTx ( const Packet * p )

protectedvirtual

Method called when the PHY layer finish to transmit the packet.

Parameters

Packet* Pointer to an object of type Packet that represent the Packet transmitted

References ack_mode, actual_data_packet, CSMA_CA_ACK_MODE, PT_CA_ACK, PT_CA_CTS, PT_CA_RTS, state_Idle(), state_Wait_ACK(), state_Wait_CTS(), and state_Wait_Data().

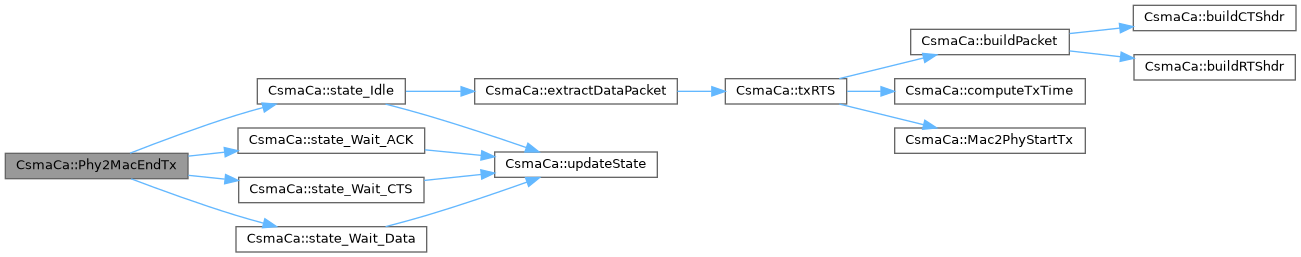

Here is the call graph for this function:

◆ Phy2MacStartRx()

void CsmaCa::Phy2MacStartRx ( const Packet * p )

protectedvirtual

Method called when the Phy Layer start to receive a Packet

Parameters

const Packet* Pointer to an object of type Packet that represent the Packet that is in reception

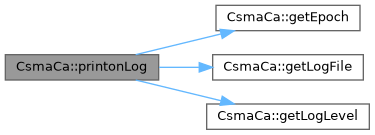

◆ printonLog()

void CsmaCa::printonLog	(	csma_ca_log_level_t	level,
		string	log
	)

private

Print a message on log file

Parameters

csma_ca_log_level_t	log level of the message
string	Actual message

References getEpoch(), getLogFile(), getLogLevel(), log_level_string, and outLog.

Here is the call graph for this function:

◆ recvFromUpperLayers()

void CsmaCa::recvFromUpperLayers ( Packet * p )

protectedvirtual

Receives the packet from the upper layer (e.g. IP)

Parameters

Packet* pointer to the packet received

References CSMA_CA_DATA, CSMA_CA_IDLE, data_q, dropPacket(), getQueueSize(), max_queue_size, state, and state_Idle().

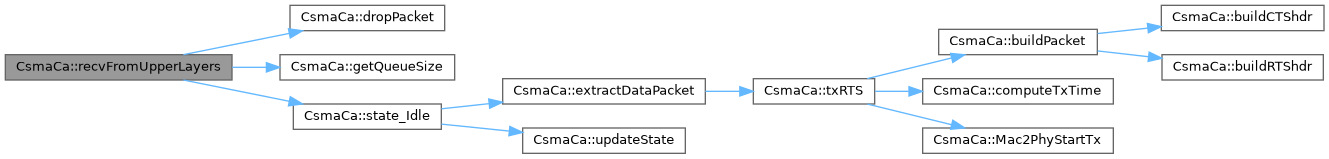

Here is the call graph for this function:

◆ state_Backoff()

void CsmaCa::state_Backoff ( int tx_time )

protectedvirtual

Backoff state

Parameters

int	Transmission time sent on over-heared RTS

References backoff_delta, backoff_max, backoff_timer, CSMA_CA_BACKOFF, and updateState().

Referenced by cts_timer_fired(), and stateRxCTS().

Here is the call graph for this function:

◆ state_Idle()

void CsmaCa::state_Idle ( )

protectedvirtual

Protocol in IDLE state

References CSMA_CA_IDLE, data_q, extractDataPacket(), and updateState().

Referenced by ack_timer_fired(), backoff_timer_fired(), data_timer_fired(), Phy2MacEndTx(), recvFromUpperLayers(), stateRxACK(), stateRxData(), and stateTxCTS().

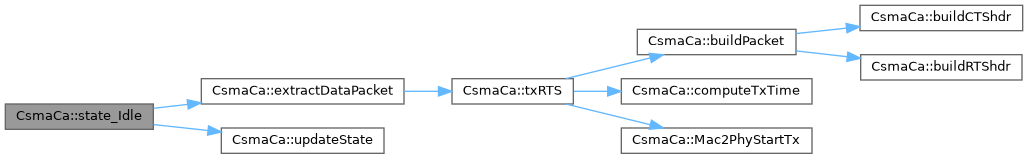

Here is the call graph for this function:

◆ state_Wait_ACK()

void CsmaCa::state_Wait_ACK ( )

protectedvirtual

Wait for an ACK after a data transmission

References ack_timer, ack_wait_val, CSMA_CA_WAIT_ACK, and updateState().

Referenced by Phy2MacEndTx().

Here is the call graph for this function:

◆ state_Wait_CTS()

void CsmaCa::state_Wait_CTS ( )

protectedvirtual

Waiting for CTS packet

References CSMA_CA_WAIT_CTS, cts_timer, cts_wait_val, and updateState().

Referenced by Phy2MacEndTx().

Here is the call graph for this function:

◆ state_Wait_Data()

void CsmaCa::state_Wait_Data ( )

protectedvirtual

Waiting for DATA packet

References CSMA_CA_WAIT_DATA, data_timer, data_wait_val, and updateState().

Referenced by Phy2MacEndTx().

Here is the call graph for this function:

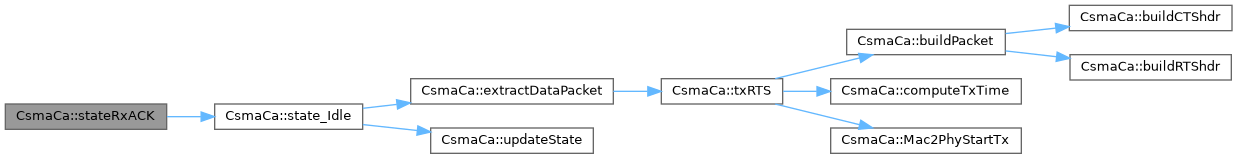

◆ stateRxACK()

int CsmaCa::stateRxACK ( Packet * ack )

protectedvirtual

Reception of an ACK packet

Parameters

hdr_ca_ACK*	pointer to RTS header in packet
int	source MAC of packet
int	destination MAC of the packet

References ack_timer, CSMA_CA_WAIT_ACK, state, and state_Idle().

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

◆ stateRxCTS()

int CsmaCa::stateRxCTS	(	hdr_ca_CTS *	cts,
		int	mac_src,
		int	mac_dst
	)

protectedvirtual

Reception of an CTS packet

Parameters

hdr_ca_CTS*	pointer to RTS header in packet
int	source MAC of packet
int	destination MAC of the packet

References CSMA_CA_IDLE, CSMA_CA_WAIT_CTS, cts_timer, hdr_ca_CTS::get_tx_time(), getState(), state_Backoff(), and stateTxData().

Referenced by Phy2MacEndRx().

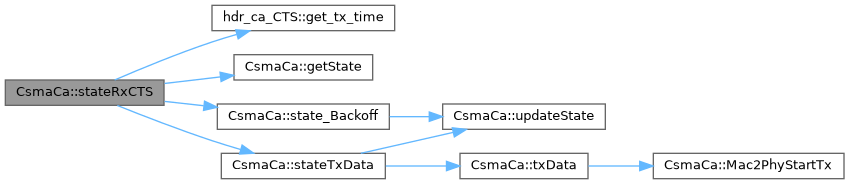

Here is the call graph for this function:

◆ stateRxData()

int CsmaCa::stateRxData ( Packet * p )

protectedvirtual

Transmit a data packet

Parameters

Packet* Pointer to data packet to be transmitted

References ack_mode, CSMA_CA_ACK_MODE, CSMA_CA_WAIT_DATA, data_timer, getState(), state_Idle(), and stateTxAck().

Referenced by Phy2MacEndRx().

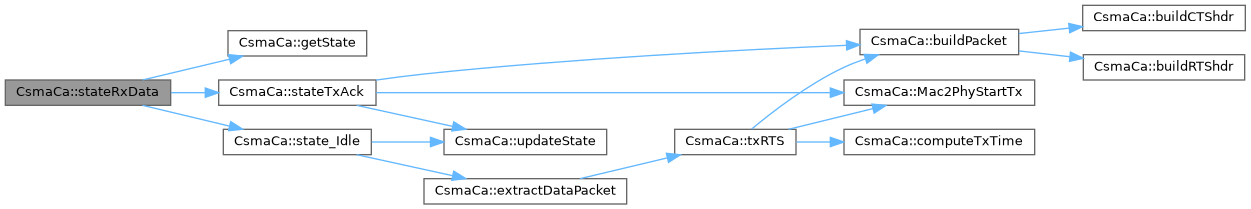

Here is the call graph for this function:

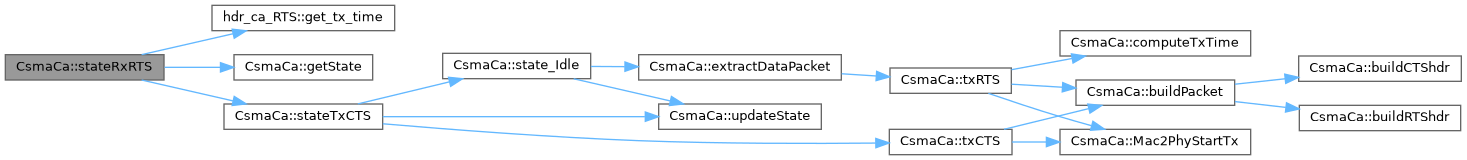

◆ stateRxRTS()

int CsmaCa::stateRxRTS	(	hdr_ca_RTS *	rts,
		int	mac_src,
		int	mac_dst
	)

protectedvirtual

Reception of an RTS packet

Parameters

hdr_ca_RTS*	pointer to RTS header in packet
int	source MAC of packet
int	destination MAC of the packet

References actual_expected_tx_time, actual_mac_data_src, backoff_timer, CSMA_CA_BACKOFF, CSMA_CA_IDLE, hdr_ca_RTS::get_tx_time(), getState(), and stateTxCTS().

Referenced by Phy2MacEndRx().

Here is the call graph for this function:

◆ stateTxAck()

void CsmaCa::stateTxAck ( int mac_dst )

protectedvirtual

Tranmission of an ACK

Parameters

int	destination MAC address

References buildPacket(), CSMA_CA_ACK, CSMA_CA_TX_ACK, Mac2PhyStartTx(), and updateState().

Referenced by stateRxData().

Here is the call graph for this function:

◆ stateTxCTS()

void CsmaCa::stateTxCTS ( )

protectedvirtual

Transmission of a CTS packet

References actual_mac_data_src, CSMA_CA_TX_CTS, state_Idle(), txCTS(), and updateState().

Referenced by stateRxRTS().

Here is the call graph for this function:

◆ stateTxData()

int CsmaCa::stateTxData ( )

protectedvirtual

Transmission of a DATA packet

References CSMA_CA_TX_DATA, txData(), and updateState().

Referenced by stateRxCTS().

Here is the call graph for this function:

◆ txAck()

int CsmaCa::txAck ( )

private

Actually transmit an ACK

◆ txCTS()

int CsmaCa::txCTS ( int mac_dest )

private

Actually transmit a CTS packet

Parameters

int	destination MAC

References actual_expected_tx_time, buildPacket(), CSMA_CA_CTS, and Mac2PhyStartTx().

Referenced by stateTxCTS().

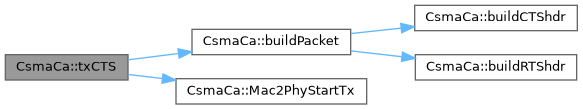

Here is the call graph for this function:

◆ txData()

int CsmaCa::txData ( )

private

Actually transmit a DATA packet

References actual_data_packet, and Mac2PhyStartTx().

Referenced by stateTxData().

Here is the call graph for this function:

◆ txRTS()

int CsmaCa::txRTS ( int mac_dest )

private

Actually transmit a RTS packet

Parameters

int	destination MAC

References buildPacket(), computeTxTime(), CSMA_CA_RTS, and Mac2PhyStartTx().

Referenced by extractDataPacket().

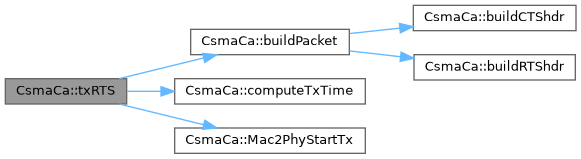

Here is the call graph for this function:

◆ updateState()

void CsmaCa::updateState ( csma_ca_states_t s )

inlineprotected

Update the state of the protocol

Parameters

csma_ca_state_t new state

References previous_state, and state.

Referenced by state_Backoff(), state_Idle(), state_Wait_ACK(), state_Wait_CTS(), state_Wait_Data(), stateTxAck(), stateTxCTS(), and stateTxData().

Member Data Documentation

◆ ack_mode

ack_modes_t CsmaCa::ack_mode

private

ACK mode (configurable

Referenced by command(), Phy2MacEndTx(), and stateRxData().

◆ ack_pkt_dropped

int CsmaCa::ack_pkt_dropped

private

ACK packet dropped

Referenced by dropPacket().

◆ ack_timer

CsmaCaTimer CsmaCa::ack_timer

protected

ACK timer

Referenced by state_Wait_ACK(), and stateRxACK().

◆ ack_wait_val

int CsmaCa::ack_wait_val

private

Timer duration of ACK

Referenced by CsmaCa(), and state_Wait_ACK().

◆ actual_data_packet

Packet* CsmaCa::actual_data_packet

private

Pointer to DATA packet we are handling

Referenced by extractDataPacket(), Phy2MacEndTx(), and txData().

◆ actual_expected_tx_time

int CsmaCa::actual_expected_tx_time

private

Tx time of DATA packet we are handling

Referenced by stateRxRTS(), and txCTS().

◆ actual_mac_data_src

int CsmaCa::actual_mac_data_src

private

Source MAC of DATA packet we are handling

Referenced by stateRxRTS(), and stateTxCTS().

◆ backoff_delta

int CsmaCa::backoff_delta

private

Delta value (configurable) to be added to backoff

Referenced by CsmaCa(), and state_Backoff().

◆ backoff_max

int CsmaCa::backoff_max

private

Maximum value in range of backoff

Referenced by CsmaCa(), and state_Backoff().

◆ backoff_timer

CsmaCaTimer CsmaCa::backoff_timer

protected

Backoff timer

Referenced by state_Backoff(), and stateRxRTS().

◆ bitrate

int CsmaCa::bitrate

private

Bit rate adopted

Referenced by computeTxTime(), and CsmaCa().

◆ cts_pkt_dropped

int CsmaCa::cts_pkt_dropped

private

CTS packet dropped

Referenced by command(), and dropPacket().

◆ cts_timer

CsmaCaTimer CsmaCa::cts_timer

protected

CTS timer

Referenced by state_Wait_CTS(), and stateRxCTS().

◆ cts_wait_val

int CsmaCa::cts_wait_val

private

Timer duration of CTS

Referenced by CsmaCa(), and state_Wait_CTS().

◆ data_pkt_dropped

int CsmaCa::data_pkt_dropped

private

DATA packet dropped

Referenced by command(), and dropPacket().

◆ data_q

std::queue<Packet *> CsmaCa::data_q

private

Size of DATA packet

Referenced by extractDataPacket(), getQueueSize(), recvFromUpperLayers(), and state_Idle().

◆ data_size

int CsmaCa::data_size

private

Size of DATA packet

Referenced by computeTxTime(), and CsmaCa().

◆ data_timer

CsmaCaTimer CsmaCa::data_timer

protected

Data timer

Referenced by state_Wait_Data(), and stateRxData().

◆ data_wait_val

int CsmaCa::data_wait_val

private

Timer duration of DATA

Referenced by CsmaCa(), and state_Wait_Data().

◆ log_level

csma_ca_log_level_t CsmaCa::log_level

private

Current log level chosen for protocol

Referenced by getLogLevel().

◆ logfile

string CsmaCa::logfile

private

File name of log

Referenced by getLogFile(), and initializeLog().

◆ max_queue_size

int CsmaCa::max_queue_size

private

Maximum dimension of Queue

Referenced by CsmaCa(), and recvFromUpperLayers().

◆ n_cts_rx

int CsmaCa::n_cts_rx

private

CTS received

Referenced by command(), and Phy2MacEndRx().

◆ n_rts_rx

int CsmaCa::n_rts_rx

private

RTS received

Referenced by command(), and Phy2MacEndRx().

◆ outLog

std::ofstream CsmaCa::outLog

private

Stdout stream of log

Referenced by initializeLog(), and printonLog().

◆ previous_state

csma_ca_states_t CsmaCa::previous_state

private

Previous state of the protocol

Referenced by updateState().

◆ rts_pkt_dropped

int CsmaCa::rts_pkt_dropped

private

RTS packet dropped

Referenced by command(), and dropPacket().

◆ state

csma_ca_states_t CsmaCa::state

private

Current state of the protocol

Referenced by ack_timer_fired(), getState(), recvFromUpperLayers(), stateRxACK(), and updateState().

The documentation for this class was generated from the following files:

DESERT_Framework/DESERT/data_link/uw-csma-ca/uw-csma-ca.h
DESERT_Framework/DESERT/data_link/uw-csma-ca/uw-csma-ca.cpp

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ CsmaCa()

◆ ~CsmaCa()

Member Function Documentation

◆ ack_timer_fired()

◆ backoff_timer_fired()

◆ buildCTShdr()

◆ buildPacket()

◆ buildRTShdr()

◆ command()

◆ computeTxTime()

◆ cts_timer_fired()

◆ data_timer_fired()

◆ dropPacket()

◆ extractDataPacket()

◆ getEpoch()

◆ getLogFile()

◆ getLogLevel()

◆ getQueueSize()

◆ getState()

◆ initializeLog()

◆ Mac2PhyStartTx()

◆ Phy2MacEndRx()

◆ Phy2MacEndTx()

◆ Phy2MacStartRx()

◆ printonLog()

◆ recvFromUpperLayers()

◆ state_Backoff()

◆ state_Idle()

◆ state_Wait_ACK()

◆ state_Wait_CTS()

◆ state_Wait_Data()

◆ stateRxACK()

◆ stateRxCTS()

◆ stateRxData()

◆ stateRxRTS()

◆ stateTxAck()

◆ stateTxCTS()

◆ stateTxData()

◆ txAck()

◆ txCTS()

◆ txData()

◆ txRTS()

◆ updateState()

Member Data Documentation

◆ ack_mode

◆ ack_pkt_dropped

◆ ack_timer

◆ ack_wait_val

◆ actual_data_packet

◆ actual_expected_tx_time

◆ actual_mac_data_src

◆ backoff_delta

◆ backoff_max

◆ backoff_timer

◆ bitrate

◆ cts_pkt_dropped

◆ cts_timer

◆ cts_wait_val

◆ data_pkt_dropped

◆ data_q

◆ data_size

◆ data_timer

◆ data_wait_val

◆ log_level

◆ logfile

◆ max_queue_size

◆ n_cts_rx

◆ n_rts_rx

◆ outLog

◆ previous_state

◆ rts_pkt_dropped

◆ state
