CsmaAloha::AlohaTimer Class Reference

#include <uw-csma-aloha.h>

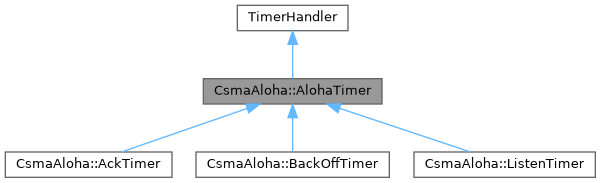

Inheritance diagram for CsmaAloha::AlohaTimer:

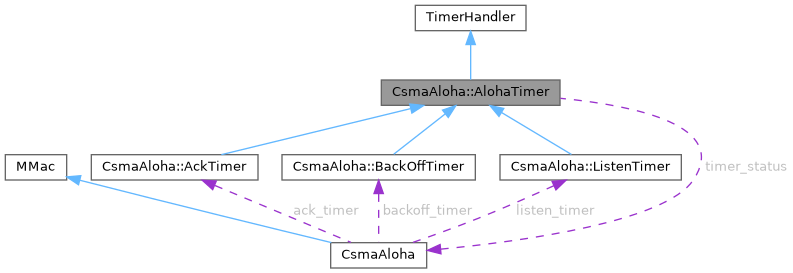

Collaboration diagram for CsmaAloha::AlohaTimer:

Public Member Functions
	AlohaTimer (CsmaAloha *m)
virtual	~AlohaTimer ()=default
virtual void	freeze ()
virtual void	unFreeze ()
virtual void	stop ()
virtual void	schedule (double val)
bool	isIdle ()
bool	isRunning ()
bool	isExpired ()
bool	isFrozen ()
bool	isActive ()
void	resetCounter ()
void	incrCounter ()
int	getCounter () const
double	getDuration () const

Protected Attributes
double	start_time
double	left_duration
int	counter
CsmaAloha *CSMA_TIMER_STATUS	timer_status

Detailed Description

Class that describes the timers in the node

Constructor & Destructor Documentation

AlohaTimer()

CsmaAloha::AlohaTimer::AlohaTimer ( CsmaAloha *  m )

inline

Constructor of the AlohaTimer class

Parameters

CsmaAloha*

a pointer to an object of type CsmaAloha*

~AlohaTimer()

virtual CsmaAloha::AlohaTimer::~AlohaTimer ( )

virtualdefault

Destructor of the AlohaTimer class

Member Function Documentation

freeze()

virtual void CsmaAloha::AlohaTimer::freeze ( )

inlinevirtual

Freezes the timer

References CsmaAloha::CSMA_FROZEN, CsmaAloha::CSMA_RUNNING, left_duration, start_time, and timer_status.

getCounter()

int CsmaAloha::AlohaTimer::getCounter ( ) const

inline

Returns the counter of the timer

Returns

the value of the counter of the timer

References counter.

getDuration()

double CsmaAloha::AlohaTimer::getDuration ( ) const

inline

Returns the left duration of the timer

Returns

left duration of the timer

References left_duration.

incrCounter()

void CsmaAloha::AlohaTimer::incrCounter ( )

inline

Increments the counter of the timer

References counter.

isActive()

bool CsmaAloha::AlohaTimer::isActive ( )

inline

Checks if the timer is ACTIVE

Returns

true or false

References CsmaAloha::CSMA_FROZEN, CsmaAloha::CSMA_RUNNING, and timer_status.

isExpired()

bool CsmaAloha::AlohaTimer::isExpired ( )

inline

Checks if the timer is EXPIRED

Returns

true or false

References CsmaAloha::CSMA_EXPIRED, and timer_status.

isFrozen()

bool CsmaAloha::AlohaTimer::isFrozen ( )

inline

Checks if the timer is FROZEN

Returns

true or false

References CsmaAloha::CSMA_FROZEN, and timer_status.

isIdle()

bool CsmaAloha::AlohaTimer::isIdle ( )

inline

checks if the timer is IDLE

Returns

bool true or false

References CsmaAloha::CSMA_IDLE, and timer_status.

isRunning()

bool CsmaAloha::AlohaTimer::isRunning ( )

inline

checks if the timer is RUNNING

Returns

true or false

References CsmaAloha::CSMA_RUNNING, and timer_status.

resetCounter()

void CsmaAloha::AlohaTimer::resetCounter ( )

inline

Resets the counter of the timer

schedule()

virtual void CsmaAloha::AlohaTimer::schedule ( double  val )

inlinevirtual

schedule a timer

Parameters

double

the duration of the timer

References CsmaAloha::CSMA_RUNNING, left_duration, start_time, and timer_status.

stop()

virtual void CsmaAloha::AlohaTimer::stop ( )

inlinevirtual

stops the timer

References CsmaAloha::CSMA_IDLE, and timer_status.

unFreeze()

virtual void CsmaAloha::AlohaTimer::unFreeze ( )

inlinevirtual

unFreezes is used to resume the timer starting from the point where it was freezed

References CsmaAloha::CSMA_FROZEN, CsmaAloha::CSMA_RUNNING, left_duration, start_time, and timer_status.

Member Data Documentation

counter

int CsmaAloha::AlohaTimer::counter

protected

counter of the timer

Referenced by getCounter(), and incrCounter().

left_duration

double CsmaAloha::AlohaTimer::left_duration

protected

Left duration of the timer

Referenced by freeze(), getDuration(), schedule(), and unFreeze().

start_time

double CsmaAloha::AlohaTimer::start_time

protected

Start Time of the timer

Referenced by freeze(), schedule(), and unFreeze().

timer_status

CsmaAloha* CSMA_TIMER_STATUS CsmaAloha::AlohaTimer::timer_status

protected

< Pointer to an object of type CsmaAloha Timer status

Referenced by CsmaAloha::AckTimer::expire(), freeze(), isActive(), isExpired(), isFrozen(), isIdle(), isRunning(), schedule(), stop(), and unFreeze().

---

The documentation for this class was generated from the following file:

• DESERT_Framework/DESERT/data_link/uw-csma-aloha/uw-csma-aloha.h
